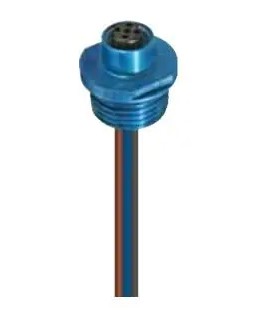

Receptacles - RKF 5-1/2-14

M12 standard sensor/actuator receptacle connector, front mounting, female 5-pin, A-coding, 22 AWG, 5 stranded wires

Specifications

Product Family	Sensor / Actuator Connectors
Side 1 Product Sub Family	M12 Standard
Mating Side	M12
Connecting Side	Stranded Wires
Connector Type	Receptacle
Side 1 Type of Contact/Gender	Female
Connector Design	Front Mount
Number of Pins	5
Coding, Side 1	A
Voltage Rating	250 V
Rated Voltage (UL)	250 V
Operating Voltage	250 V
Current Rating	4 A
Rated Current (UL)*	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-25°C (-13°F) / +90°C (+194°F)
Protection Degree / IP Rating**	IP 67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	Copper alloy, gold over nickel plated
Side 1 Contact Plating	Brass, Nickel Plated
Contact Bearer Material	PUR
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Housing Material	Aluminum
Housing Plating	Anodized
Housing Color	Blue
Attachment Material	Steel
Attachment Plating	Zinc
O-Ring Material	Viton

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

RoHS Compliant	yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	* only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures.

Note Derating	* Notice derating
Protection Degree / IP Rating Note	* only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures.
