Single Pair Ethernet (SPE) Connectors

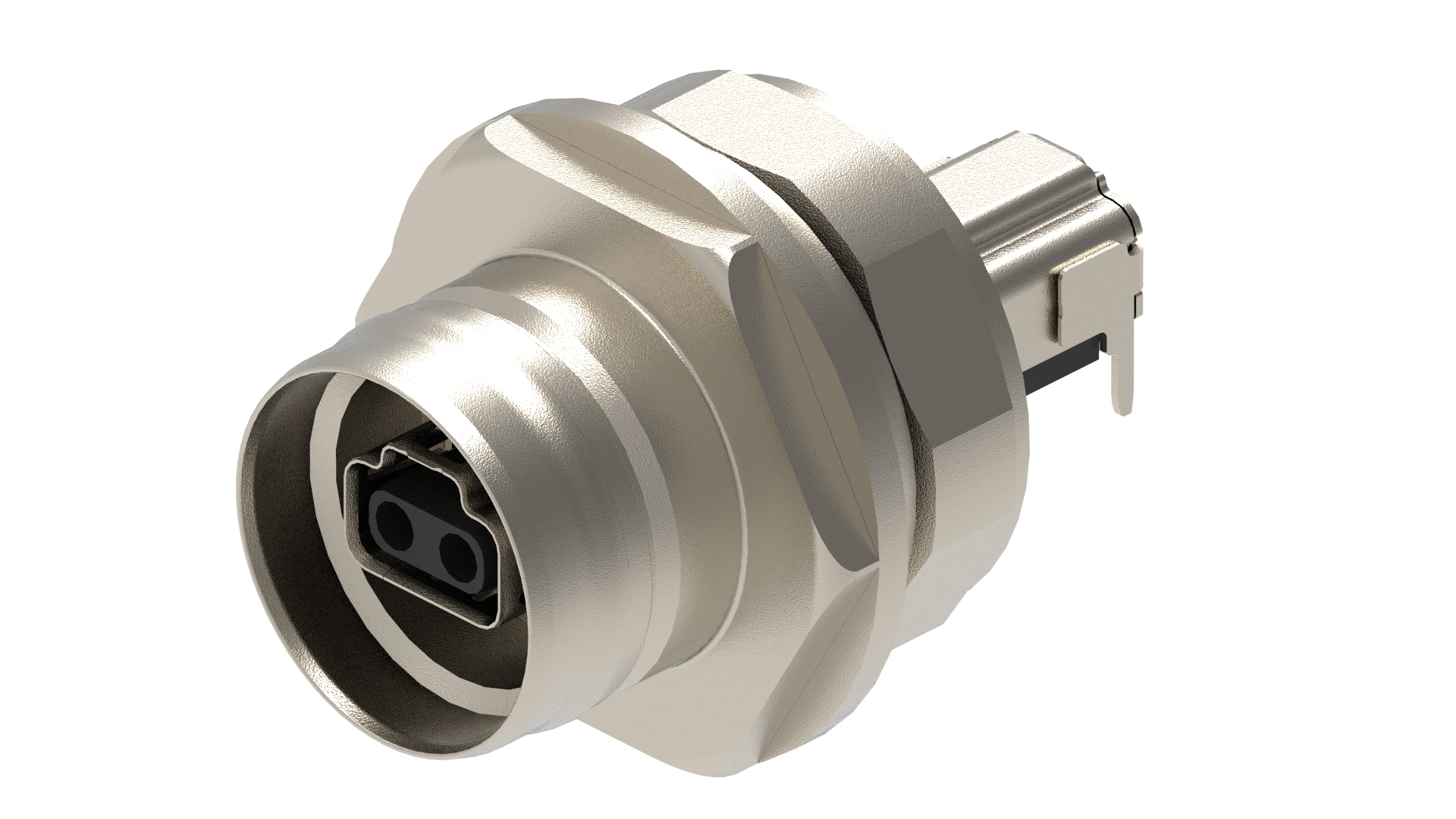

SPE M12 SPE 10.95mm front wall mounting package, PCB angled soldering THT insert, front wall mounting screw, in plastic bag package

Specifications

Product Family	SPE Receptacles
Side 1 Product Sub Family	SPE Receptacle M12
Mating Side	Screw-Locking / Push-Pull
Connecting Side	Soldering
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	2
Shielding Type	Shielded
Voltage Rating	60 V
Operating Voltage	<50 V AC / 60 V DC
Current Rating	4 A
Contact Resistance	≤ 20 mOhm
Shielding Resistance	≤ 100 mOhm
Insulation Resistance	˃ 5x10^8 Ohm
Testing Voltage Pin - Pin	1 kV DC
Testing Voltage Pin - Shield	2.25 kV DC
Transmission characteristics	600 MHz
Data Rate	10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
Mating Cycles	≥ 1000
Type of Connection	Screw-Locking / Push-Pull
Thread Size	M12 x 1
Thread Plating	Nickel-plated
Ambient Temperature (Operation)*	- 40°C - +85°C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 63171-6, IEEE 802.3bu (remote power supply over PoDL = Power over Data Line), IEEE 802.3cg (10BASE-T1)
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Moisture Sensitivity Level (MSL)	1 acc. ECA/IPC/JEDEC J-STD-020D
Process Sensitivity Level (PSL)	R0 acc. ECA/IPC/JEDEC J-STD-020D
