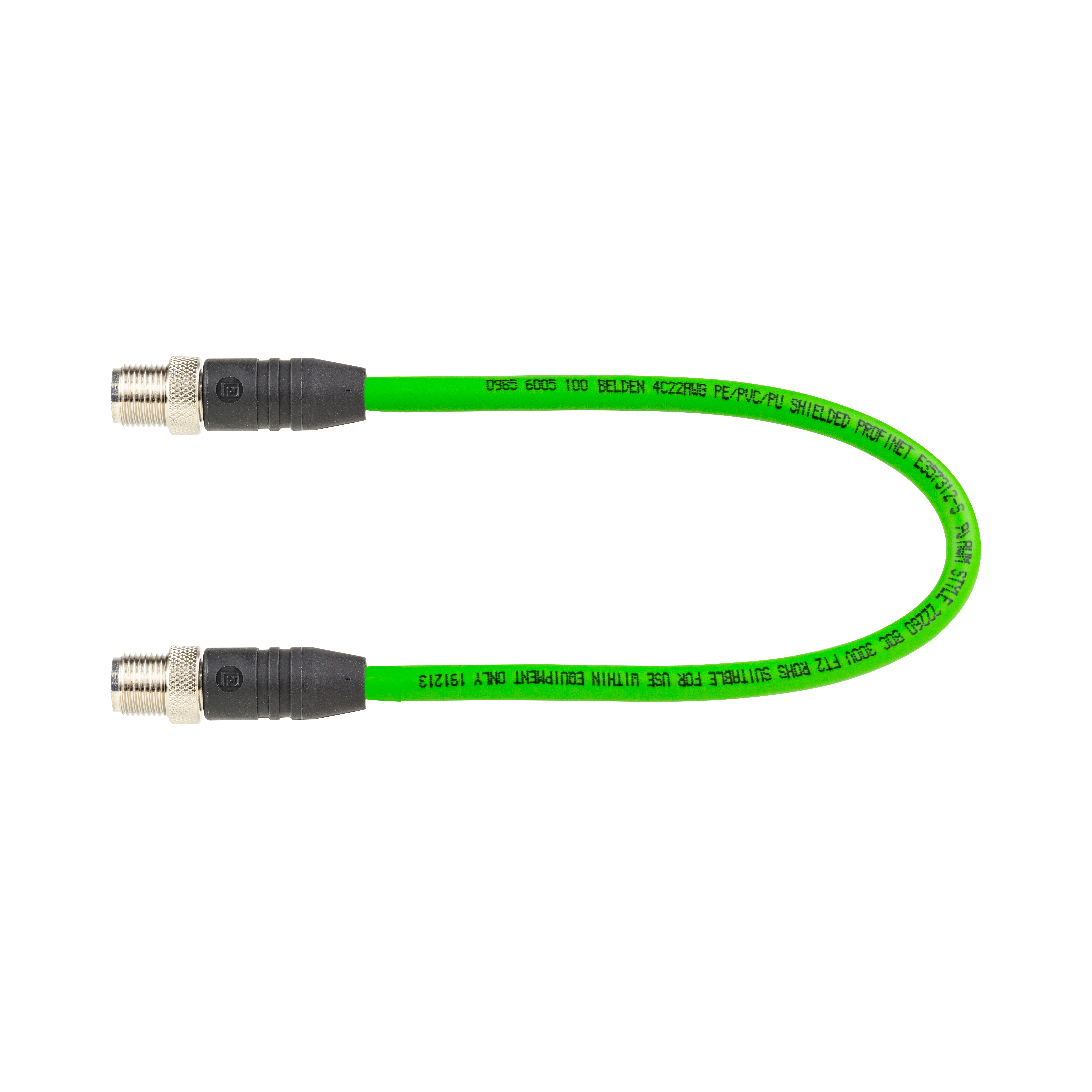

Profinet Cat5e Data Double-Ended Cordset : Male straight D-coded black M12 Standard to male straight D-coded black M12 Standard, shielded, PUR green cable, 4-wires

Availability:

Asia Pacific
Status:

Active

Quote

Specifications
Resources
Where to buy

Specifications

Expand All

Face View Side 1

Connector Type	Cordset, double ended
Voltage Rating	300 V
Data Transmission Type	Fast Ethernet Cat5e
Data Transmission Rate	100Mbit/s

Technical Data Side 1

Side 1 Type of Contact/Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	4
Coding, Side 1	D
Contact Resistance	10 mOhm
Insulation Resistance	10^9 Ohm
Mating Cycles	100
Ambient Temperature (Operation)*	- 40 °C to + 90 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	PUR
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	PUR
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZN
Attachment Plating	Nickel-plated
Shielding Material	CuZn, tin-plated
Fastening Torque (Attachment)	M 12x1:(50-60) Ncm, hand-tight

Cable Data

Cable Type	4C Cat5e SF/UTP PE/OBS/PU CABLE
Number of Wires	4
Minimal Bending Radius (Flexible Inst)	10 x D
Cable- resistances	57.1 Ohm/km
ISO/IEC Compliance	ISO/IEC 11801
Conductor Material	Stranded Tinned Copper
Cable Jacket Material	Special compound Polyurethane based (UL 758 & UL 1581)
Cable Jacket Color	Green RAL 6018
Cable Diameter D	6.4 mm
Wire Insulation Material	Polyolefin
Insulated Wire Diameter	1.45 mm
Ambient Temperature (Fixed Installation)	- 40 °C to + 80 °C
Flammability Class (Cable Jacket)	FT2/IEC 60332‐1
Min No. of Drag Chain Cycles	1 million
Core Colors	1. White, 2. Yellow, 3. Blue, 4. Orange

Technical Data Side 2

Side 2 Type of Contact/Gender	Male
Connector Design, Side 2	Straight
Number of Pins, Side 2	4
Coding, Side 2	D
Ambient Temperature (Operation), Side 2*	- 40 °C to + 90 °C
Protection Degree / IP Rating, Side 2**	IP65, IP67
Attachment Plating, Side 2	Nickel-plated
Shielding Material, Side 2	CuZn, tin-plated
