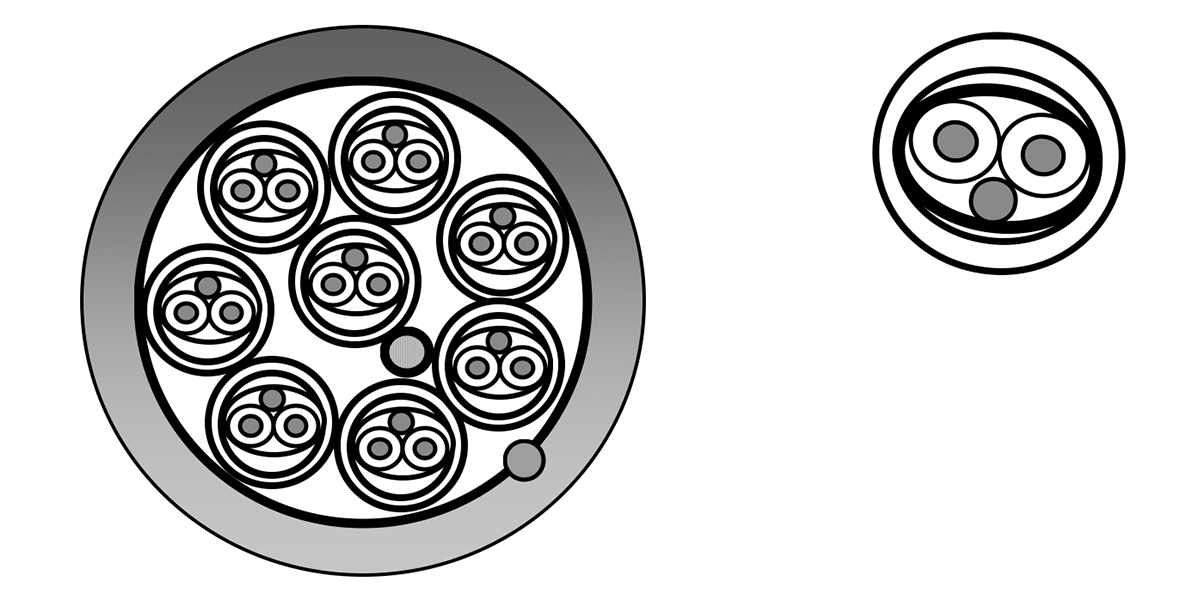

Product Number: 70053CH

4 PAIR AES/EBU, 26AWG, ISTP, LSZH-C

DIGITAL AUDIO 4 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH-C

  • Availability:
    Global
  • Status:
    Active
70053CH
  • 70053CH
1 of 1

Specifications

Expand All

Suitable Applications

Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; Resistance to flame propagation according to IEC 60332-3-24

Conductor

Size Stranding Material
26 7x34 BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 1.10 mm (0.0433 in) White & Blue

Inner Shield

Material Coverage
Bi-Laminate (Alum+Poly) 100%

Inner Shield Table Notes

Aluminum inside

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Inner Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 2.90 mm (0.114 in)

Inner Jacket Table Notes

Elements are numbered for identification

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.20 mm (0.0472 in) 9.80 mm

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Nom. Velocity of Prop.
134.0 Ohm/km (40.84 Ohm/1000ft) 40 pF/m (12 pF/ft) 110 Ohm 80%

Bend Radius

Installation Min.
98 mm

Environmental Suitability

Indoor

Flammability / Reaction to Fire

IEC 60332-3-24

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Update and Revision

Revision Number: 0.189 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.189 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length
70053CH.00200 Violet Reel 200 m
70053CH.00500 Violet Reel 500 m
