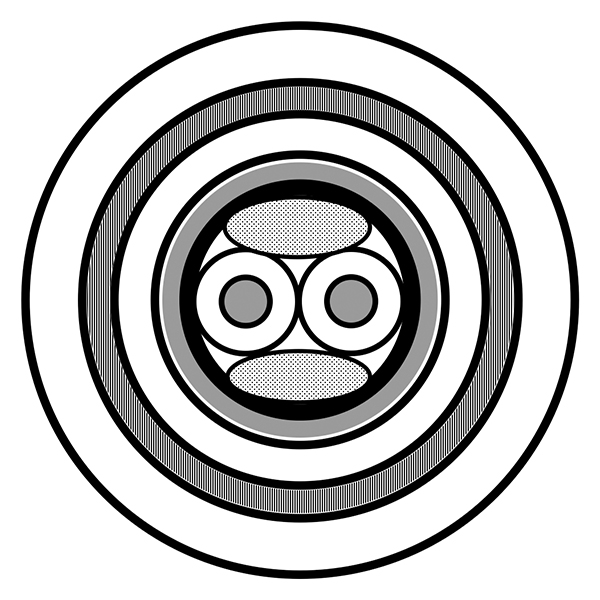

Product Number: 3079ALS

Profibus DP, 1PR #22 Sol BC, PO ins, F/B, LSNH Jkt, 300 V

Profibus DP, 1 Pair AWG 22 Bare Copper - Solid, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket , 300 V

  • Availability:
    Global
  • Status:
    Active
3079ALS
  • 3079ALS
1 of 1

Specifications

Expand All

Suitable Applications

exposure to rodent, crush, or cut through force, harsh environment, outdoors, where multiple cable runs are required, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.

Conductor

Size Stranding Material
22 Solid BC - Bare Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 2.51 mm (0.0988 in) Red & Green

Inner Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 65%

Inner Jacket

Material Nom. Thickness Nom. Diameter Color
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.1 mm (0.043 in) 8 mm (0.31 in) Chrome (RAL 7037)

Armor

Armor Type & Material Armor Thickness Coverage
SWA - Steel Wire Armor 0.9 mm Min. 95%

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.3 mm (0.051 in) 12.4 mm

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Capacitance Unbalance Nom. Characteristic Impedence Nom. Velocity of Prop.
52 Ohm/km (16 Ohm/1000ft) 27.9 pF/m (8.50 pF/ft) 1 pF/m 150 Ohm 78%

Temperature

Installation Storage
-15°C To +80°C -45°C To +80°C

Bend Radius

Installation Min.
186 mm

Environmental Suitability

IndoorIndoor/OutdoorOutdoorIndoor/Outdoor - Euroclass Eca, Sunlight Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

ISO/IEC Compliance

IEC 61034-2 - Smoke Density Min Transmittance = 60%

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

UK Regulation Compliance

UKCA Mark

Update and Revision

Revision Number: 0.231 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.231 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
3079ALS.00152 Black Reel 152 m 8719605005625
3079ALS.00305 Black Reel 305 m 8719605005632
3079ALS.00310 Black Reel 310 m 8719605005649
3079ALS.00385 Black Reel 385 m 8719605005656
3079ALS.00400 Black Reel 400 m 8719605005663
3079ALS.00410 Black Reel 410 m 8719605005670
3079ALS.00500 Black Reel 500 m 8719605005687
3079ALS.00510 Black Reel 510 m 8719605005694
3079ALS.001000 Black Reel 1,000 m 8719605005618
3079ALS.02305 Violet Reel 305 m 8719605172709
3079ALS.02500 Violet Reel 500 m 8719605005724
3079ALS.011000 Violet Reel 1,000 m 8719605005700
3079ALS.021000 Violet Reel 1,000 m 8719605005717
