Product Number: FS11BNC-25

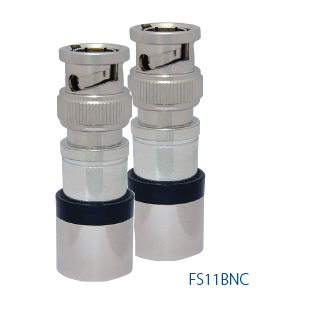

ProSNS RG-11 BNC Coax Compression Connector 7/16" Hex Head
ProSNS RG11 BNC compression connector, non-blind entry with split ferrule design, polymer compression sleeve for easy insertion & lowest possible tool compression force. Fits most RG11 standard through quad-shield cables. 25 per Pack
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
|
Packaging |
25 Pack |
|---|---|
|
Number of Pieces |
1 |
Connectors
Materials
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
Mechanical Characteristics
|
Footprint/Type |
Coax |
|---|---|
|
Connector Interface Type |
BNC |
|
Gender |
Male - plug |
|
Connector Series Name |
ProSNS |
|
Color Band |
Black |
|
Locking |
No |
|
Tool Compatibility |
CPLCCT-11 BNC (compression), PS11 (strip) |
|
Termination Type |
Compression |
|
Cable Center Conductor Diameter Limits |
.0634 - .0647 inch |
|---|---|
|
Cable Dielectric Diameter Limits |
.280 - .294 inch |
|
Cable Outer Jacket Diameter Limits |
.390 - .417 inch |
Standards
|
RG Type |
11 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor |
|---|
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.133 Revision Date: 03-04-2023 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.133 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| FS11BNC-25 | No Color | 845671000603 |
