Product Number: CAD4ZxyyzzzM

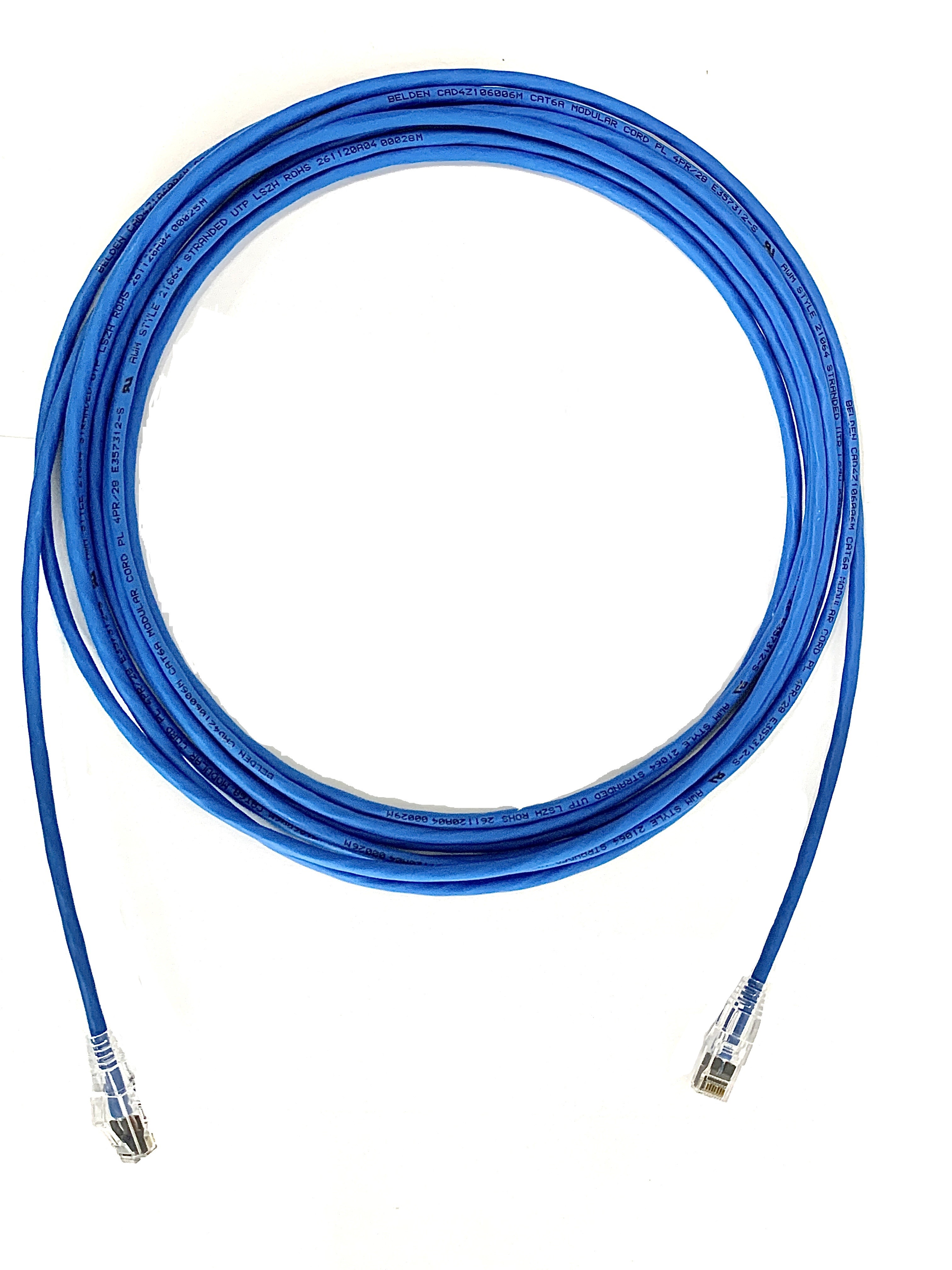

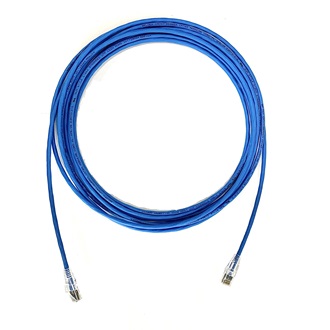

CAT6A 28AWG Small diameter Unshielded Copper Patch Cord, UTP, LSZH
CAT6A 28AWG Small diameter Unshielded Copper Patch Cord, UTP, LSZH
-
Availability:
Asia Pacific
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Horizontal and building cabling. Support current and future Category 6A, 10GX, Category6 & 5e applications such as: 10Base-T, 100Base-TX,1000Base-Tand 10GBase-T |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 28 | Stranded | BC - Bare Copper | 4 |
Insulation
| Material |
|---|
| PE - Polyethylene |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 4.80 mm |
|
Overall Nominal Diameter |
4.80 mm |
|---|---|
|
Wiring Scheme |
T568A/B-T568A/B |
|
Packaging |
Individually packaged in a clear plastic bag. |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Plug | Unshielded Polycarbonate | RJ45 |
| Boot | Polycarbonate | Snagless |
| Front Connection | Phosphor bronze plated with 1.27μm gold over 2.54μm nickel undercoat | Blades |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
|---|
| 236 Ohm/km |
|
Dielectric Strength |
750 VAC (RMS) |
|---|---|
|
Current Rating |
1.5 A |
|
Insulation Resistance |
5 GOhm*km |
Voltage
| Voltage Rating [V] |
|---|
| 30 VDC |
Temperature Range
|
Installation Temperature Range |
0°C to +75°C |
|---|---|
|
Operating Temperature Range |
-20°C to +75°C |
Mechanical Characteristics
|
Max. Pull Tension |
89 N |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
Termination Interface
| Termination | Connection | Durabilities |
|---|---|---|
| RJ45 | Mated Connection | 750 Cycles |
Standards
|
ISO/IEC Compliance |
ISO/IEC 11801-1 |
|---|---|
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
TIA-568.2-D |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
CSA/C(UL) Flammability |
FT2 |
|---|
Related Part Numbers
|
Related Parts |
CAT6A Modular Jacks, CAT6A Patch Panels |
|---|
History
|
Update and Revision |
Revision Number: 0.28 Revision Date: 07-03-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.28 Revision Date: 07-03-2023 |
|---|
Part Numbers
| Item # | Color | Length |
|---|---|---|
| CAD4Z1100D5M | Black | 0.5 m |
| CAD4Z110001M | Black | 1 m |
| CAD4Z110002M | Black | 2 m |
| CAD4Z110003M | Black | 3 m |
