Product Number: CAT5E UTP CMR PATCH CORDS

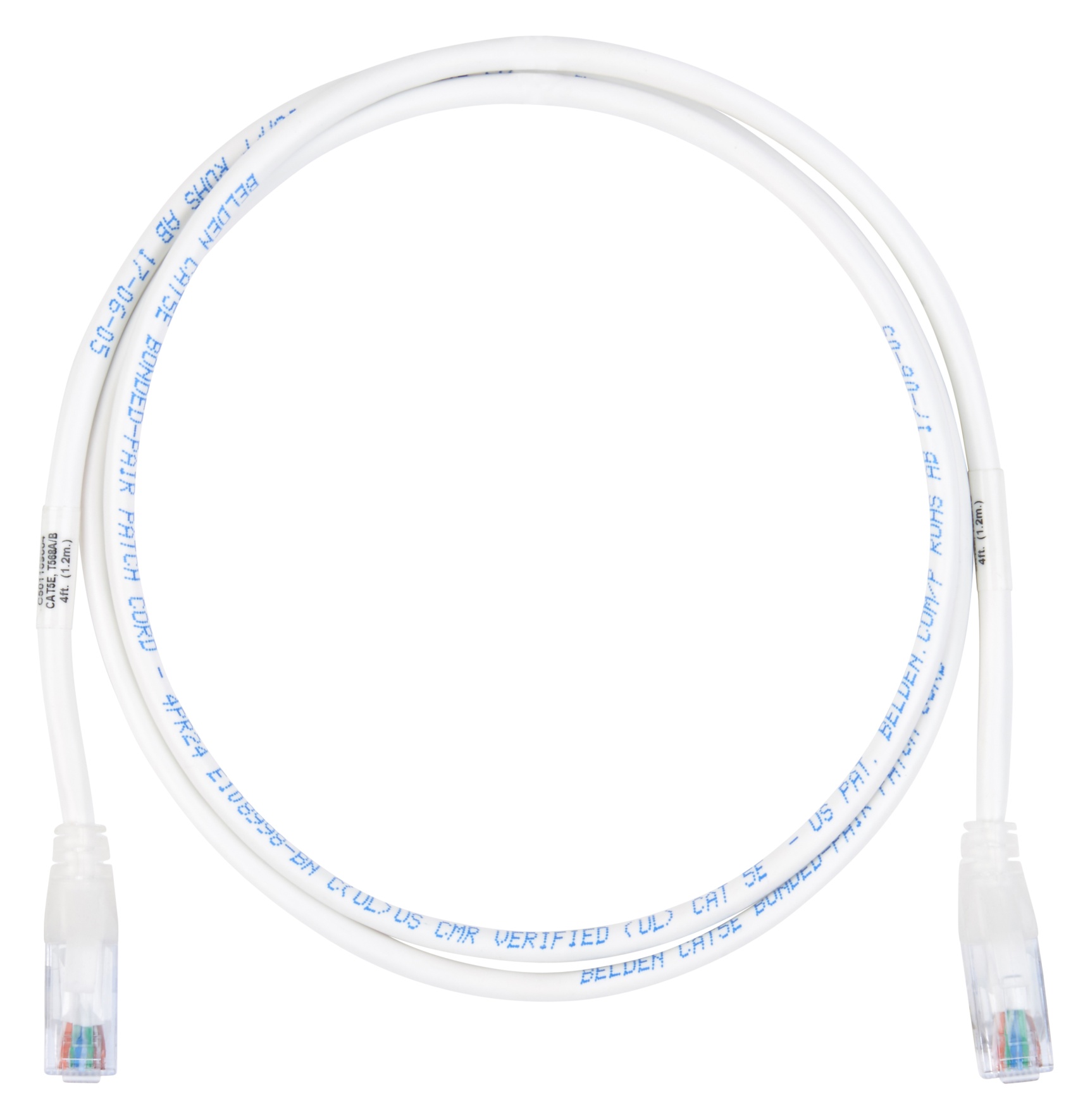

CAT5e UTP CMR Patch Cords

CAT5E UTP CMR Patch Cords

  • Availability:
    Global
  • Global inventory:
    Available
CAT5E UTP CMR PATCH CORDS
  • CAT5E UTP CMR PATCH CORDS
1 of 1

Specifications

Report An Error

Suitable Applications

IBDN System 1200, TIA Category 5E, ISO Class D, 1000BASE-T, 100BASE-T

Total Number of Pairs

4

Overall Nominal Diameter

0.21 in

Wiring Scheme

T568A/B-T568A/B

Packaging

Individually packaged in a clear plastic bag.

Materials

Description Material Color
Boot Elastomer Translucent
Conductor BC - Bare Copper
Front Connection Blades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner Jacket
Insulation PO - Polyolefin
Outer Jacket PVC - Polyvinyl Chloride

Dielectric Strength

1,000 V RMS @ 60 Hz for 1 minute

Current Rating

1.500 A

Insulation Resistance

500 M-Ohm Minimum

Max Contact Resistance

20 mOhm

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-40°C To +70°C

Operating Temperature Range

-10°C To +60°C

Min Bend Radius (Overall Cable)

1.040 in

Plug /Jack Compatibility

RJ45

Termination Interface

Connection Durabilities
Mated Connection 750 Cycles

UL Rating

Riser

ISO/IEC Compliance

IEC 60603-7

Data Category

Category 5e

TIA/EIA Compliance

Category 5E - TIA 568.2-D, ISO/IEC 11801-1

IEEE Compliance

Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Safety Listing

c(UL)us Listed

Related Parts

CAT5E Modular Jacks and Couplers, CAT5E Patch Panels

Labeling

Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.

Update and Revision

Revision Number: 0.232 Revision Date: 11-09-2022

Update and Revision

Revision Number: 0.232 Revision Date: 11-09-2022
