BE41203

Lead Wire, #24 Str TC, PVC Ins, AWM 1007

...
UL AWM ST1007 VW1 20AWG/16x32T CSA TR 64
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

UL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak.

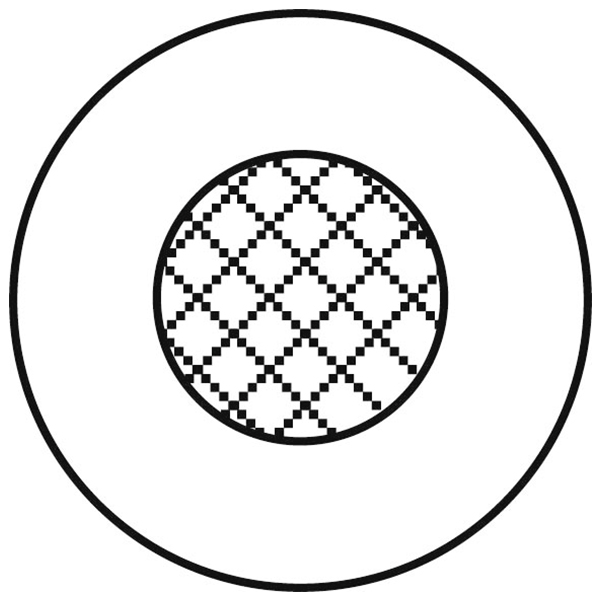

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Construction n x D
20 Stranded TC - Tinned Copper 16x0.205 mm

Conductor Count

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness Nominal Wall Thickness
Insulation PVC - Polyvinyl Chloride 1.9 mm 0.06 mm 0.33 mm 0.38 mm
Electrical Characteristics
Conductor DCR
Element Max. Conductor DCR
Conductor(s) 34.6 Ohm/km
Voltage
UL Voltage Rating
300 V
Temperature Range

UL Temp Rating

80°C

Standards

UL AWM Style Compliance

AWM 1007

CSA Rating

CSA-C22.2 no. 16 Type TR-64

Military Compliance

N/A

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU CE Mark

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

300 V RMS

History

Update and Revision

Revision Number: 0.152 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE41203.001850 Black Reel 1,850 m 8719605024916
BE41203.111850 Blue Reel 1,850 m 8719605025029
BE41203.051850 Brown Reel 1,850 m 8719605024961
BE41203.091850 Gray Reel 1,850 m 8719605025005
BE41203.061850 Green Reel 1,850 m 8719605024978
BE41203.071850 Orange Reel 1,850 m 8719605024985
BE41203.101850 Pink Reel 1,850 m 8719605025012
BE41203.081850 Red Reel 1,850 m 8719605024992
BE41203.041850 Violet Reel 1,850 m 8719605024954
BE41203.021850 White Reel 1,850 m 8719605024930
BE41203.031850 Yellow Reel 1,850 m 8719605024947
BE41203.011850 Yellow, Green Ring Reel 1,850 m 8719605024923
