8870MN

SpaceMaker™, 5 C #18 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

...

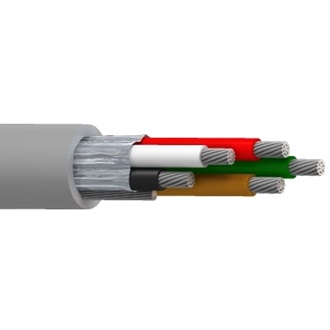

SpaceMaker™, 5 Conductor 18AWG (41x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937
Request Sample Get Product Alerts
Specifications
Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 5 18 AWG 41x34 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.010 in (0.25 mm) 0.067 in (1.7 mm) Black, White, Red, Dark Green, Brown
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (19x30H) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.016 in (0.41 mm) 0.217 in

Overall Cable Diameter (Nominal)

0.217 in.

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
7.06 Ohm/1000ft 4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature
80°C
Bend Radius
Stationary Min. Installation Min.
0.868 in (22.0 mm) 0.868 in

Max. Pull Tension

127.2 lbs (57.70 kg)

Bulk Cable Weight

42 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

FT2

AWM Compliance

AWM 2937

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.192 Revision Date: 11-09-2022

Part Numbers
Item # Color Putup Type Length UPC
8870MN 006100 Blue, Light Reel 100 ft 612825390879
8870MN 0061000 Blue, Light Reel 1,000 ft 612825390848
8870MN 008100 Gray Reel 100 ft 612825390886
8870MN 0081000 Gray Reel 1,000 ft 612825390855
8870MN 004100 Yellow Reel 100 ft 612825390862
8870MN 0041000 Yellow Reel 1,000 ft 612825390831
