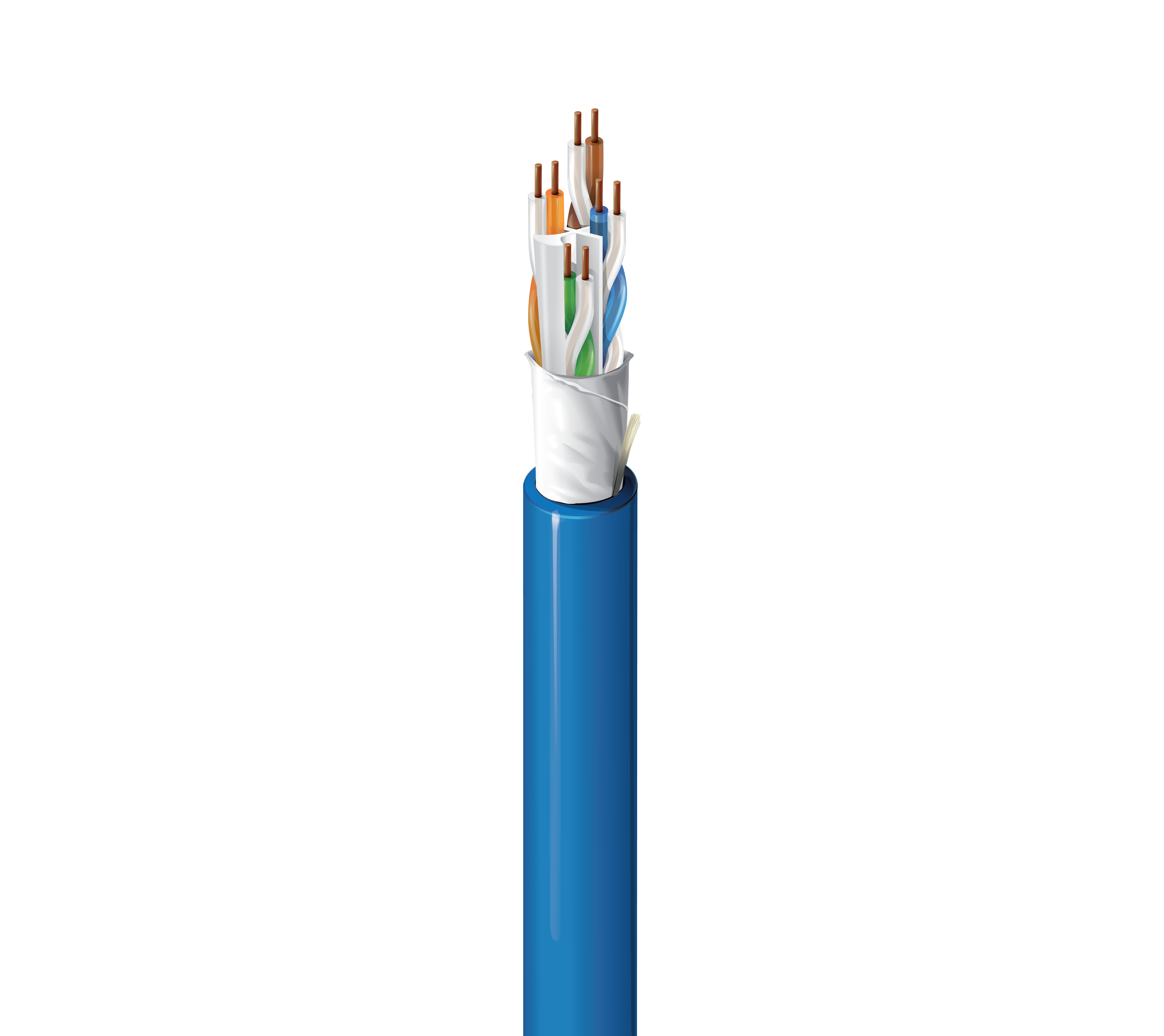

10GXS12

10GXS Category 6A Enhanced Cable, 4 Pair, U/UTP, CMR

...
10GXS Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHD

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White & Blue, White & Orange, White & Green, White & Brown

Bonded-Pair

No

Outer Jacket
Separator Material Material Nom. Diameter Ripcord
Center Member (Patented EquiSpline®), EquiBlock™ Barrier Technology PVC - Polyvinyl Chloride 0.275 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. DCR Unbalanced Between Pairs [%] Max. Capacitance Unbalance Nom. Mutual Capacitance
82 Ohm/km 3% 5% 45 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%] Typical Delay Skew
100 MHz 537.6 ns/100m 45 ns/100m 65% 30 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 75.3 dB 73.2 dB 74.8 dB 20.0 dB 100 ± 15 Ohm 105 ± 10 Ohm 75.0 dB 77.0 dB 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 66.3 dB 62.5 dB 62.8 dB 23.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 76.2 dB 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 61.8 dB 56.5 dB 56.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 70.1 dB 40.0 dB 16.9 dB
10 MHz 5.9 dB/100m 60.3 dB 54.4 dB 54.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 68.2 dB 40.0 dB 15.0 dB
16 MHz 7.4 dB/100m 57.2 dB 49.8 dB 50.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 64.1 dB 38.0 dB 10.9 dB
20 MHz 8.3 dB/100m 55.8 dB 47.5 dB 48.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 62.2 dB 37.0 dB 9.0 dB
25 MHz 9.3 dB/100m 54.3 dB 45.0 dB 46.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm 75.0 dB 60.2 dB 36.0 dB 7.0 dB
31.25 MHz 10.4 dB/100m 52.9 dB 42.5 dB 44.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 10 Ohm 75.0 dB 58.3 dB 35.1 dB 5.1 dB
62.5 MHz 14.8 dB/100m 48.4 dB 33.6 dB 38.9 dB 21.5 dB 100 ± 15 Ohm 100 ± 10 Ohm 73.6 dB 52.3 dB 32.0 dB
100 MHz 18.9 dB/100m 45.3 dB 26.4 dB 34.8 dB 20.1 dB 100 ± 15 Ohm 100 ± 10 Ohm 70.5 dB 48.2 dB 30.0 dB
200 MHz 27.0 dB/100m 40.8 dB 13.8 dB 28.8 dB 18.0 dB 100 ± 22 Ohm 100 ± 10 Ohm 66.0 dB 42.2 dB 27.0 dB
250 MHz 30.4 dB/100m 39.3 dB 9.0 dB 26.8 dB 17.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 64.5 dB 40.2 dB 26.0 dB
300 MHz 33.5 dB/100m 38.1 dB 4.6 dB 25.3 dB 16.8 dB 100 ± 32 Ohm 100 ± 10 Ohm 63.3 dB 38.7 dB 25.2 dB
350 MHz 36.3 dB/100m 37.1 dB 0.8 dB 23.9 dB 16.3 dB 100 ± 32 Ohm 100 ± 10 Ohm 62.3 dB 37.3 dB 24.6 dB
400 MHz 39.0 dB/100m 36.3 dB 22.8 dB 15.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 61.5 dB 36.2 dB 24.0 dB
450 MHz 41.5 dB/100m 35.5 dB 21.7 dB 15.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 60.7 dB 35.1 dB 23.5 dB
500 MHz 43.9 dB/100m 34.8 dB 20.8 dB 15.2 dB 100 ± 32 Ohm 100 ± 10 Ohm 60.0 dB 34.2 dB 23.0 dB
550 MHz 46.2 dB/100m 33.2 dB 20.0 dB 14.9 dB 100 ± 32 Ohm 100 ± 10 Ohm 59.4 dB 33.4 dB
600 MHz 48.4 dB/100m 32.6 dB 19.2 dB 14.7 dB 100 ± 32 Ohm 100 ± 10 Ohm 58.8 dB 32.6 dB
625 MHz 49.5 dB/100m 32.4 dB 18.9 dB 14.5 dB 100 ± 32 Ohm 100 ± 10 Ohm 58.6 dB 32.3 dB
750 MHz 54.7 dB/100m 32.2 dB 17.3 dB 14.0 dB 57.4 dB 30.7 dB
860 MHz 58.9 dB/100m 31.3 dB 16.1 dB 13.6 dB 56.5 dB 29.5 dB
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CL3R)
Mechanical Characteristics
Temperature
UL Temperature Operating Installation Storage
90°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Installation Min.
2.75 in

Max. Pull Tension

25 lbs

Bulk Cable Weight

35 lbs/1000ft

Standards and Compliance

Environmental Suitability

Riser, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Fire Resistance

UL 1666 Riser, FT4, FT4, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR;CMR-LP (0.6A);CL3R-LP (0.6A)

CEC / C(UL) Compliance

CMR

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6A

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

CENELEC Compliance

Segregation class according EN50174-2=a

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Verified Channel/Category 6A

Plenum Number

10GXS13

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.283 Revision Date: 10-13-2021

Part Numbers
Item # Color Putup Type Length UPC
10GXS12 0101000 Black Reel 1,000 ft 612825004226
10GXS12010A1000 Black Reel-in-Box 1,000 ft 612825004318
10GXS12 0061000 Blue, Light Reel 1,000 ft 612825004189
10GXS12006A1000 Blue, Light Reel-in-Box 1,000 ft 612825004271
10GXS12 0081000 Gray Reel 1,000 ft 612825004202
10GXS12008A1000 Gray Reel-in-Box 1,000 ft 612825004295
10GXS12 0051000 Green Reel 1,000 ft 612825004172
10GXS12005A1000 Green Reel-in-Box 1,000 ft 612825004264
10GXS12 0031000 Orange Reel 1,000 ft 612825004158
10GXS12003A1000 Orange Reel-in-Box 1,000 ft 612825004240
10GXS12 0071000 Purple Reel 1,000 ft 612825004196
10GXS12007A1000 Purple Reel-in-Box 1,000 ft 612825004288
10GXS12 0021000 Red Reel 1,000 ft 612825004141
10GXS12002A1000 Red Reel-in-Box 1,000 ft 612825004233
10GXS12 0091000 White Reel 1,000 ft 612825004219
10GXS12009A1000 White Reel-in-Box 1,000 ft 612825004301
10GXS12 0041000 Yellow Reel 1,000 ft 612825004165
10GXS12004A1000 Yellow Reel-in-Box 1,000 ft 612825004257
