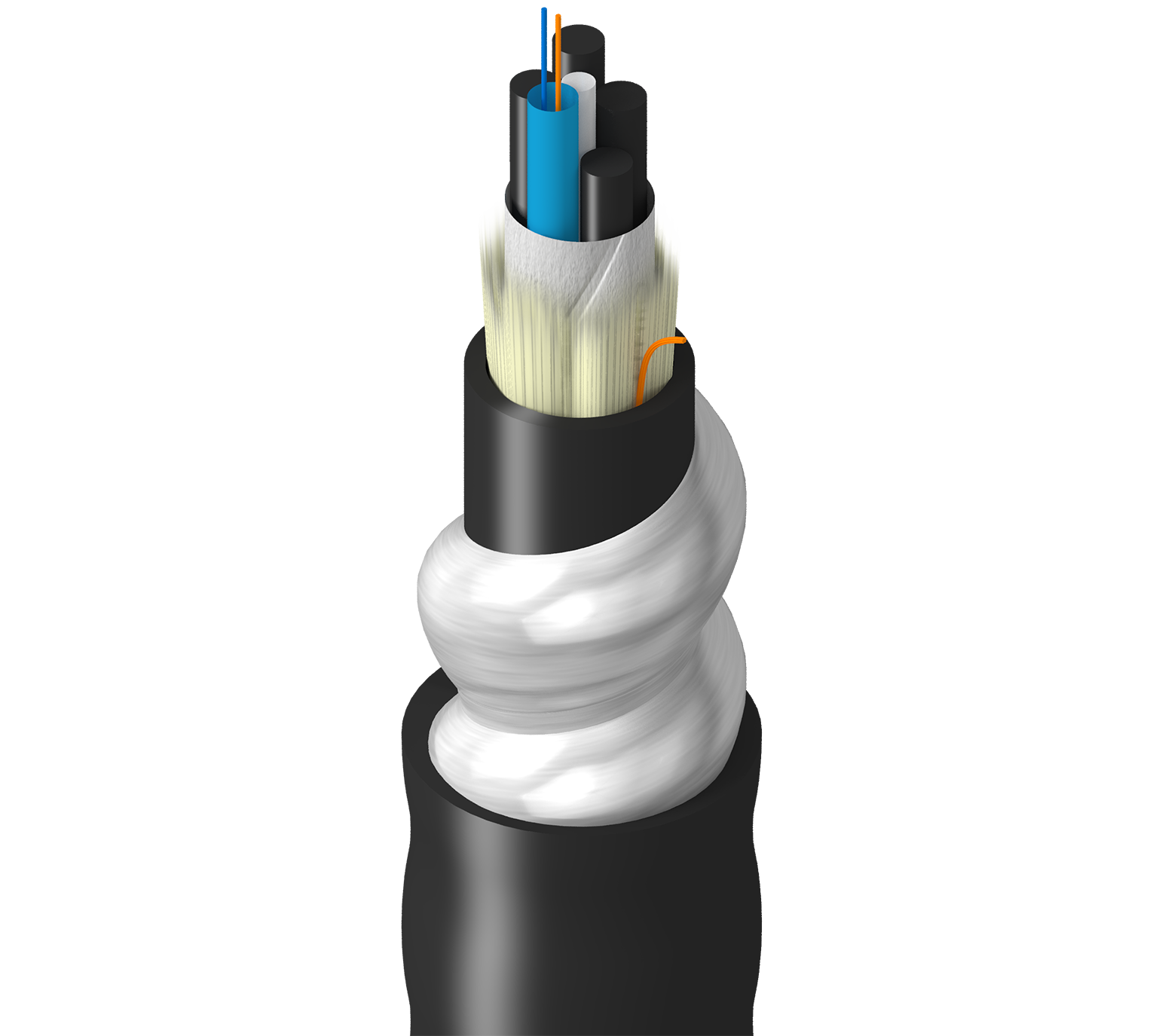

Fiber Multi-Loose Tube Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof
Fiber Core Diameter
Fiber Color Coding
Number of Active Subunits
Number of Fillers
Fibers Per Subunit
0.110 in (2.8 mm)
Central Strength Member
Waterblocking Aramid Yarns
PVC - Polyvinyl Chloride
0.454 in (11.5 mm)
Armor Type and Material
AIA - Aluminum Interlock Armor
0.765 in (19.4 mm)
Min. Bend Radius During Installation
20x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
231 lbs/kft (344 kg/km)
Installation Temp Range
-10°C to +60°C
Operating Temp Range
-50°C to +70°C
Storage Temp Range
Sunlight Resistance, Oil Resistance, Burial
CA Prop 65
Flammability / Reaction to Fire
Update and Revision
Revision Number: 0.19 Revision Date: 04-08-2022
