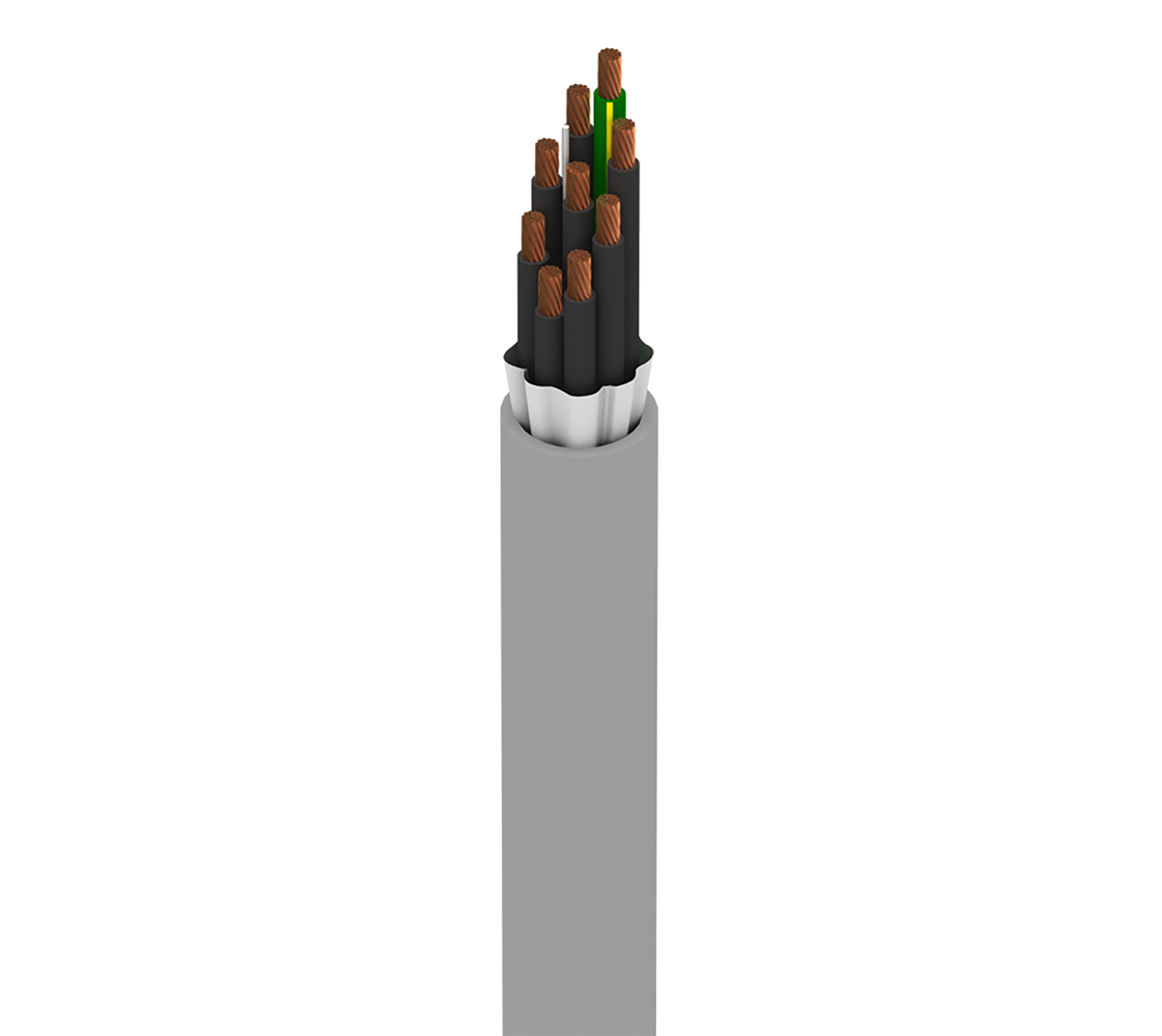

7405W

MachFlex™, 8+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC

...
MachFlex™ for High Flex, 8+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC
Request Sample Get Product Alerts
Specifications
Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 8 20 AWG 19x32 BC - Bare Copper
Ground Wire 1 20 AWG 19x32 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.066 in (1.7 mm) Black and Numbered
Ground Wire PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.066 in (1.7 mm) Green/Yellow
Outer Shield
Material
No Shield
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
non-Woven Tape TPE - Thermoplastic Elastomer 0.042 in (1.1 mm) 0.345 in

Overall Cable Diameter (Nominal)

0.345 in

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 10.8 Ohm/1000ft 6.3 Amps per Conductor at 30ºC
Ground Wire 10.7 Ohm/1000ft (35.1 Ohm/km) 14.4 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating Voltage Rating
300 V 600 V
Mechanical Characteristics
Temperature
UL Temperature Operating
UL : 90°C, AWM 20327 : 105°C -40°C To 105°C
Bend Radius
Stationary Min. Installation Min.
3.45 in (87.6 mm) 3.45 in

Max. Pull Tension

135 lbs (61.2 kg)

Bulk Cable Weight

74 lbs/1000ft

Standards and Compliance

Environmental Suitability

Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1685 UL Loading, FT2, IEEE 1202 FT4

NEC / UL Compliance

Article 725, PLTC

AWM Compliance

AWM 20327, AWM I/II A/B

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.349 Revision Date: 04-08-2022

Part Numbers
Item # Color Putup Type Length UPC
7405W 060250 Chrome Reel 250 ft 612825185505
7405W 0601000 Chrome Reel 1,000 ft 612825185499
7405W 0605000 Chrome Reel 5,000 ft 612825185512
