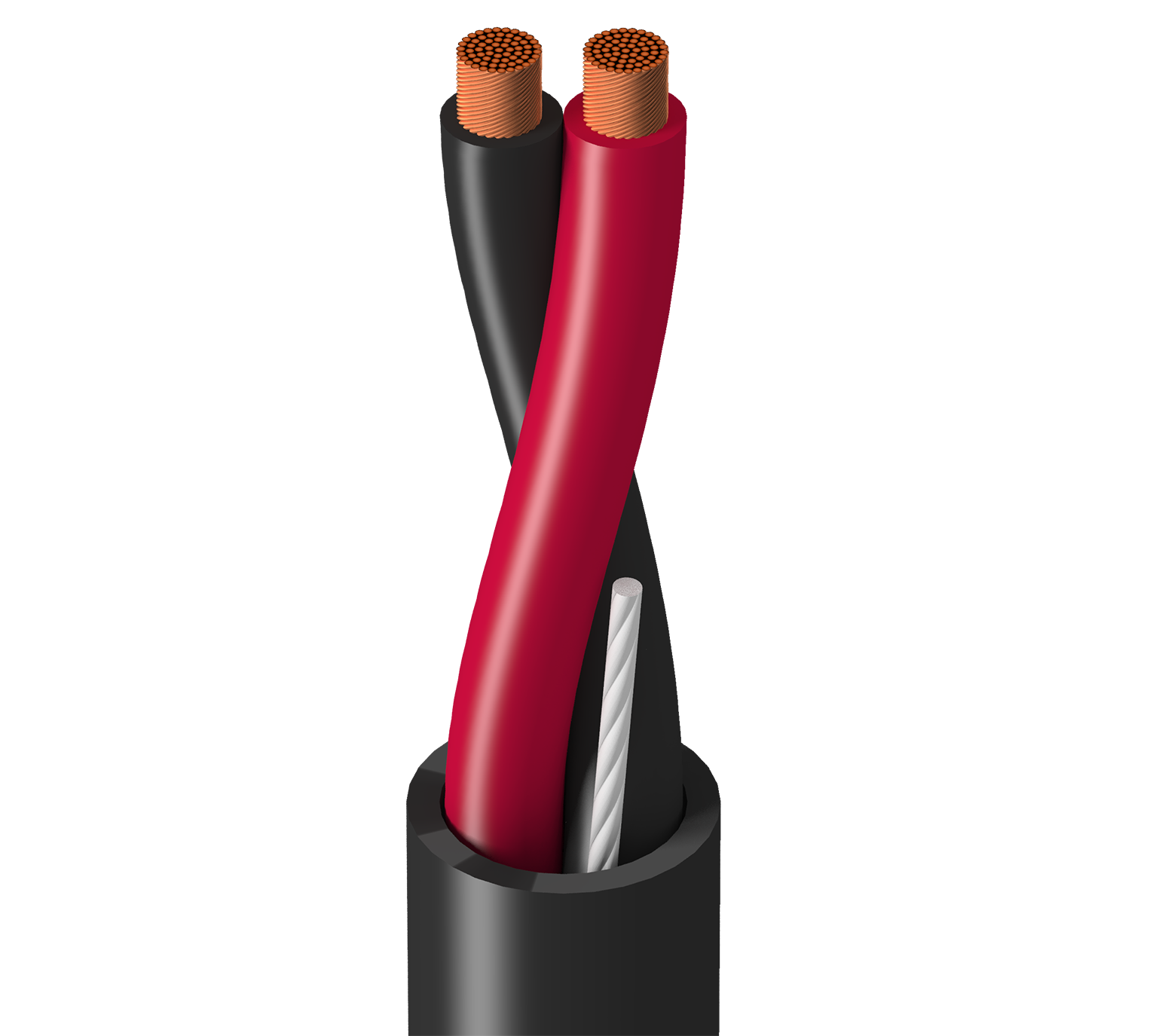

High Perform Instr, 1 Pr #12 Str TC, PVC Ins E2, PVC Jkt, PLTC

High Performance Instrumentation, 1 Pair 12AWG (65x30) Tinned Copper, PVC Insulation E2 Color Code, PVC Outer Jacket, PLTC

Request Quote

Request Sample Get Product Alerts

Specifications

Report An Error

Suitable Applications	Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Element	No. of Elements	Size	Stranding	Material
Pair(s)	1	12 AWG	65x30	TC - Tinned Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Pair(s)	PVC - Polyvinyl Chloride	0.025 in (0.64 mm)	0.143 in (3.63 mm)	Black & Red

Material	Nom. Thickness	Nom. Diameter	Ripcord
PVC - Polyvinyl Chloride	0.042 in (1.1 mm)	0.370 in (9.40 mm)	Yes

Overall Cable Diameter (Nominal)	0.370 in (9.40 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Pair(s)	1.78 Ohm/1000ft	25 pF/ft (82 pF/m)	10.3 Amps per Conductor at 25ºC

UL Voltage Rating
300 V (PLTC)

UL Temperature	Operating
105°C	-30°C to +105°C

Table Notes	AWM 80°C

Stationary Min.	Installation Min.
3.7 in (94 mm)	3.7 in (94 mm)

Max. Pull Tension	169 lbs (76.7 kg)
Bulk Cable Weight	77 lbs/1000ft

Environmental Suitability	Indoor/Outdoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1685 UL Loading, T-29-520, IEEE 1202, FT4
NEC / UL Compliance	Article 725, Article 727, CL3R, ITC, PLTC
AWM Compliance	AWM 2464
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.604 Revision Date: 02-15-2024

Part Numbers

Item #	Color	UPC	Footnote
9412 0601000	Chrome	612825240297	C
9412 0602500	Chrome	612825240303	Z
9412 060500	Chrome	612825240310	C
