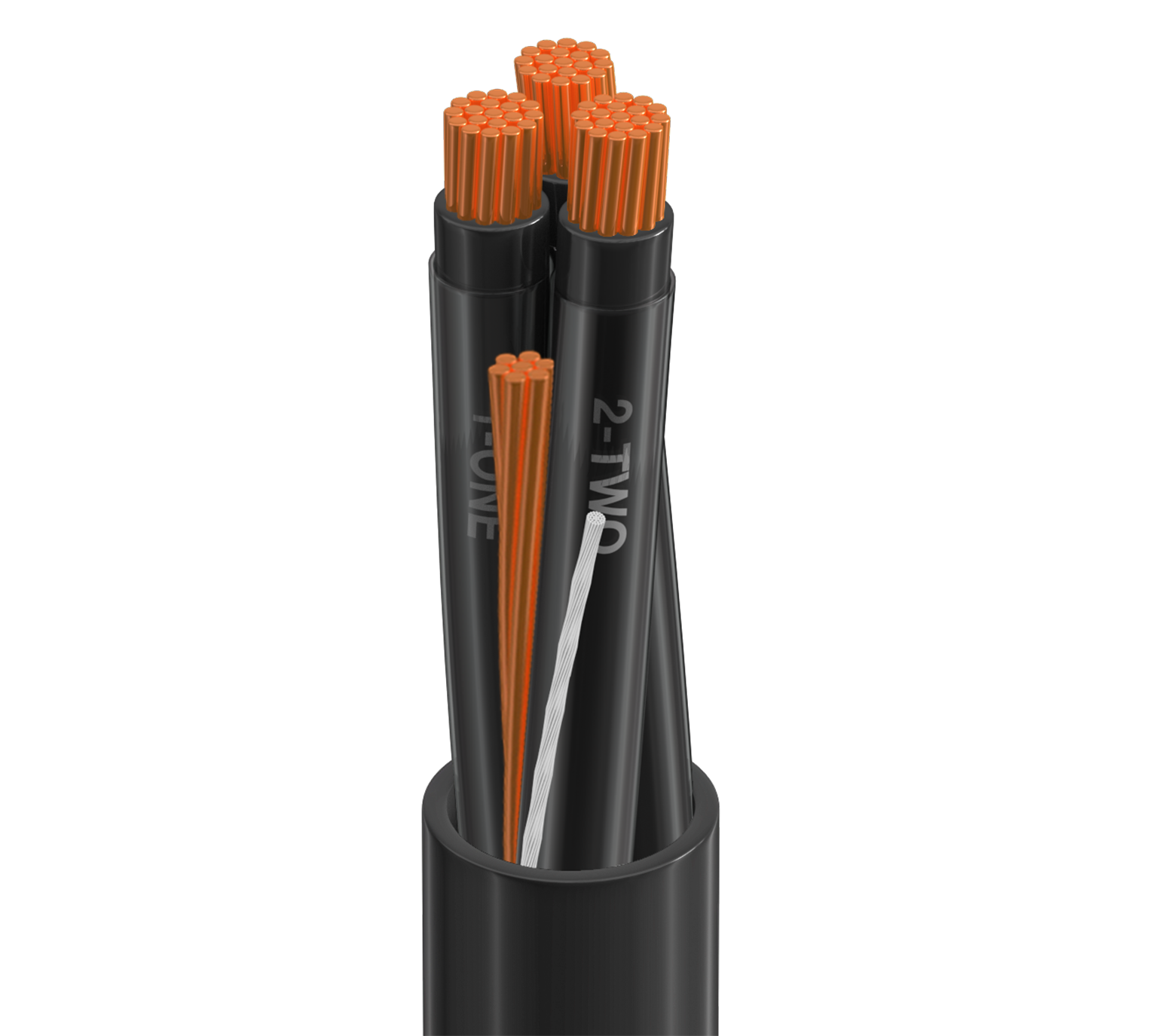

TC VN/PVC, 3+G C #3/0+4 Str BC, PVC-NYL Ins M4, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 3+G Conductor 3/0+4AWG (Class B) Bare Copper, PVC-NYL Insulation M4 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR
Get Product Alerts
Product Overview

Suitable Applications

Power and Control Applications up to 600V

Construction Details
Element Number of Element Size Stranding Material
Conductor(s) 3 3/0 AWG 19x10 BC - Bare Copper
Ground 1 4 AWG 7x12 BC - Bare Copper
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC/Nylon - Polyvinyl Chloride + Nylon 0.055 in (1.4 mm) 0.566 in (14.4 mm) Black and Numbered
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.083 in (2.1 mm) 1.425 in Yes
Electrical Characteristics
Nom. Conductor DCR Max. Current
0.067 Ohm/1000ft 225 Amps per Conductor at 30ºC
0.26 Ohm/1000ft (0.85 Ohm/km) 95 Amps per Conductor at 30ºC
UL Voltage Rating
600 V RMS (TC-ER)
Mechanical Characteristics
UL Temperature Operating
90°C Dry, 90°C Wet Wet/Dry: -30°C to 90°C

Max. Pull Tension

7712.2 lbs (3498.2 kg)

Bulk Cable Weight

2034 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Burial

Flammability / Fire Resistance

UL 1685 UL loading, IEEE 1202 FT4

NEC / UL Compliance

Article 336, TC-ER, THWN-2

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)


Update and Revision

Revision Number: 0.138 Revision Date: 10-19-2021

Part Numbers
Item # Putup Type UPC
28174A 0102500 Reel 612825365372
