Product Number: KEYCONNECT 3.5MM AUDIO

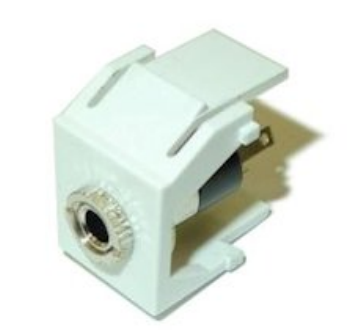

KeyConnect Multimedia Module 3.5mm Audio
KeyConnect Multimedia Module 3.5mm Audio. Available in several colors and audio coupler styles.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
3.5mm Stereo Jack |
|---|
Physical Characteristics (Overall)
|
Height |
0.87 m |
|---|---|
|
Width |
0.642 |
|
Depth |
1.417 |
|
Front Connection |
Flush, Recessed |
|
Packaging |
1 unit packaged in a plastic bag. |
|
Weight |
0.021 lbs |
Connectors
Materials
| Material |
|---|
| Plastic - UL94V-0 |
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|---|
|
Connector/Hardware Retention |
20 lbs |
Standards
|
Environmental Space |
Indoor |
|---|
Applicable Environmental and Other Programs
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|---|---|
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
c(UL)us Listed |
|---|
Related Part Numbers
|
Related Parts |
Compatible with KeyConnect Patch Panel and Faceplate, 3.5mm Jack Cable Assembly |
|---|
Product Notes
|
Notes |
For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com |
|---|
History
|
Update and Revision |
Revision Number: 0.184 Revision Date: 03-04-2023 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.184 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| AX105334-AL | Almond | 611589006965 |
| AX105335-AL | Almond | 611589006996 |
| AX105334-BK | Black | 611589006972 |
| AX105335-BK | Black | 611589007009 |
