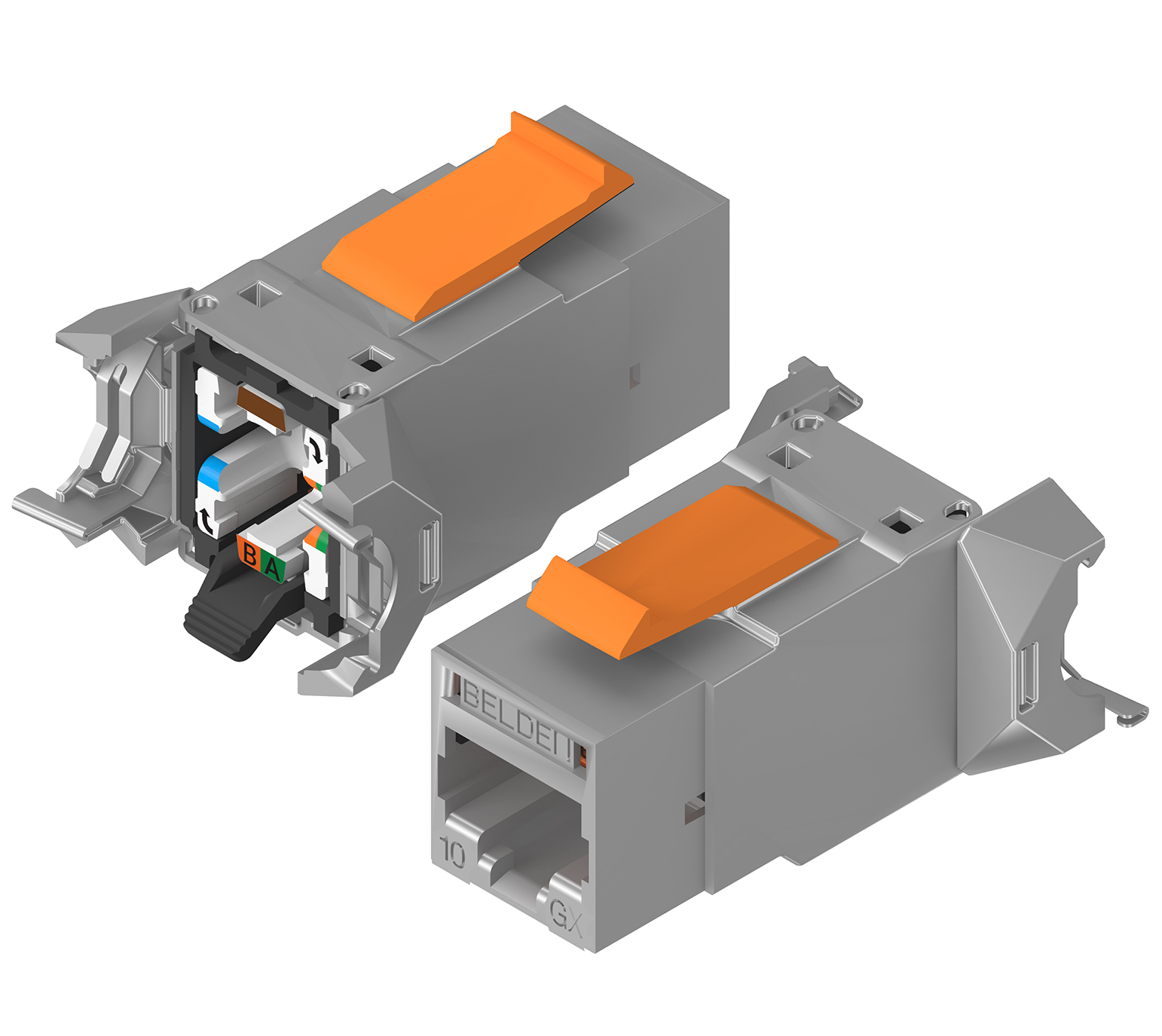

TIA Screened Category 6A , ISO Class EA, 10GBASE-T
Individually packaged in a plastic bag.
1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
500 M-Ohm Minimum
Max Contact Resistance
Installation Temperature Range
-40°C To +70°C
Storage Temperature Range
Operating Temperature Range
RVUTT01 Termination Tool
Plug /Jack Compatibility
Termination Front Connection
Termination Front Connection Durability
Termination Rear Connection
Termination Rear Connection Durability
Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7
type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to
UL 1863, IEC 60603-7, FCC part 68-F
EU Directive 2002/95/EC (RoHS)
MII Order #39 (China RoHS)
UL2043 Air Handling Spaces
Compatible with Shielded KeyConnect Patch Panels 24p and 48p, Compatible with KeyConnect Faceplates, Adapters, Boxes
Please see Installation Guide PX106884.
Update and Revision
Revision Number: 0.51 Revision Date: 11-09-2022
