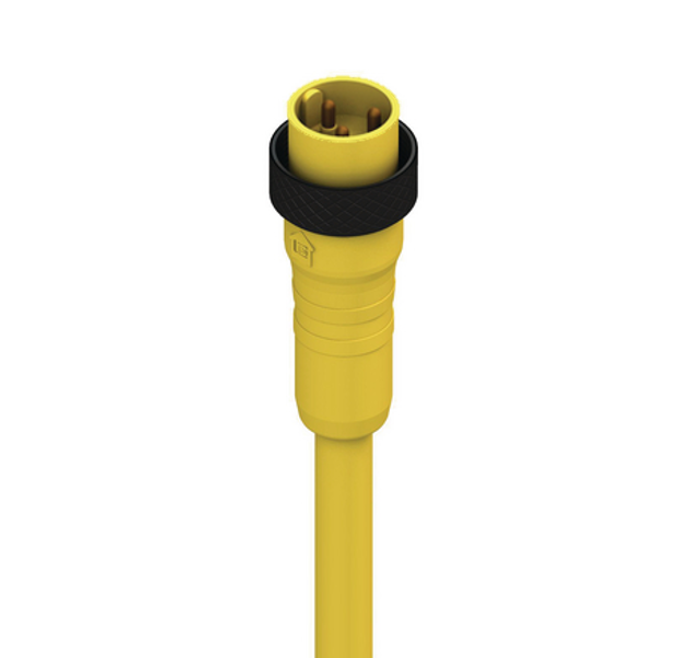

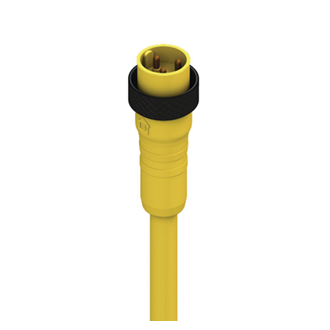

RS 301-838

7/8" Power Single-Ended Cordset: Male, straight, 3-pin, yellow body, 600 V (UL), 10 A (UL); TPE yellow cable, 16 AWG

RS 301-838 - 7/8" Power Single-Ended Cordset: Male, straight, 3-pin, yellow body, 600 V (UL), 10 A (UL); TPE yellow cable, 16 AWG

Request Quote

Get Product Alerts

Specifications

Report An Error

Product Family	Power Connector
Product Sub Family	7/8"
Connector Type	Cordset, single ended
Type of Contact / Gender	Male
Connector Design	straight
Number of Pins	3
Coding	A
Shielding	Unshielded
Attachment Type	Coupling nut with internal threads
Rated Voltage	600 V
Rated Current*	10 A
Rated Current (UL)*	10
Ambient Temperature (Operation)*	- 30 °C - + 90 °C
Protection Degree / IP Rating**	IP65, IP67, NEMA 6P

Cable Number	838
Conductor Size	16 AWG (65/34)
Number of Wires	3
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Conductor material	Stranded, BC
Cable Jacket Material	TPE
Cable Jacket Color	Yellow
Cable Diameter D	Ø 8 mm
Wire Insulation Material	PVC-Nylon
Ambient Temperature (Fixed Installation)	-30 °C to +90°C
UL Cable Type	TC-ER (90°C Dry / 75°C Wet) 600 V
Flammability Class (Cable Jacket)	FT4 / IEEC 1202
Cable Characteristics	Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex

UL-File	E104696
UL	UL recognized

RoHS Compliant	Yes

Oil Resistance	Oil Res II

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Update and Revision	Revision Number: 0.44 Revision Date: 05-04-2023

Part Numbers

Resources

Catalogs

Industrial Power Connectors

Technical Information

Drawing Female RK or Male RS I rA.png

Face View Male 7_8 3 Pole rA.jpg
