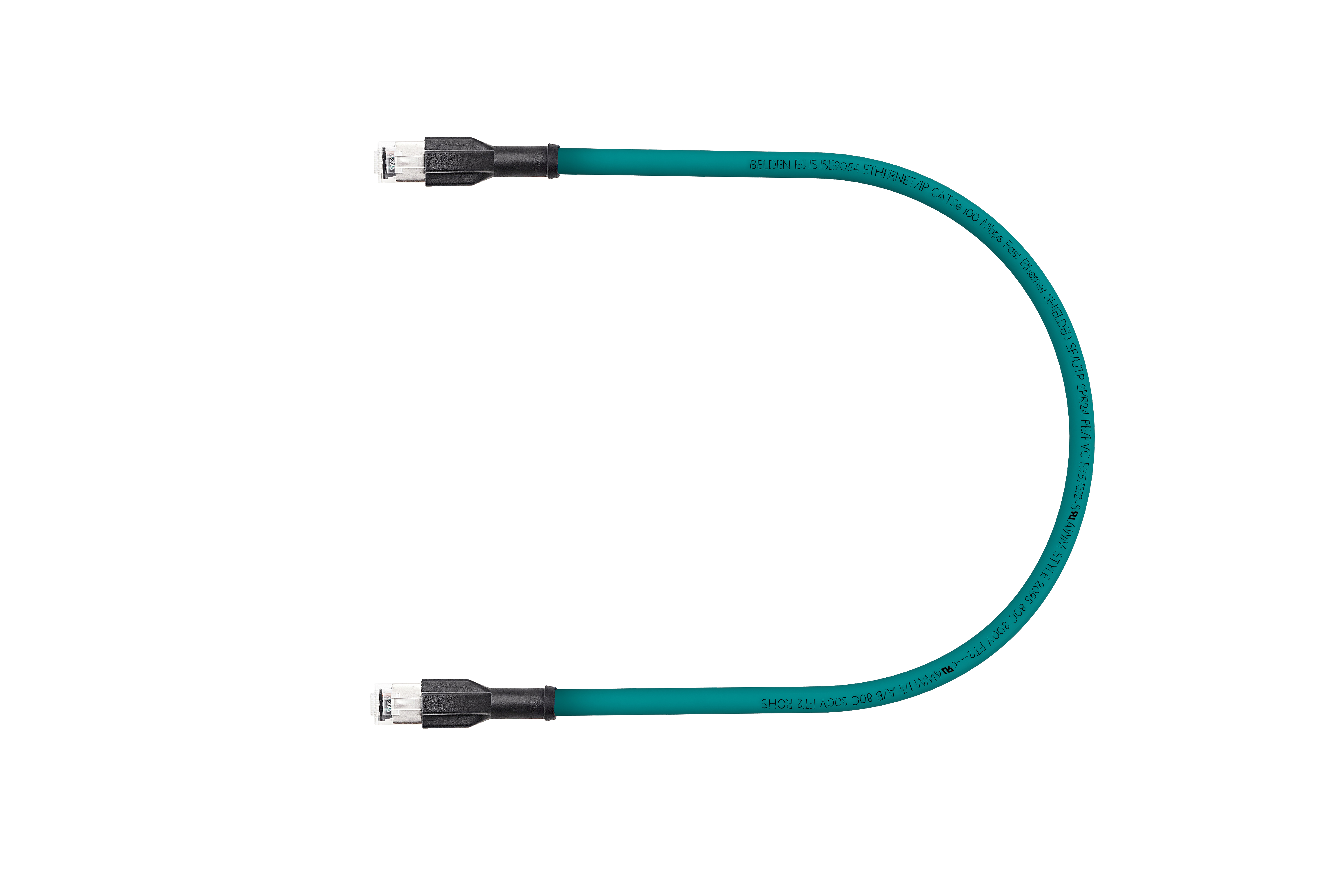

ETHERNET/IP Cat5e 100 Mbps Fast Ethernet Double-Ended Cordset: Male straight black RJ45 to male straight black RJ45, shielded, PVC teal cable, 4-wires.
|
Product Family |
EtherNet / IP Double-ended Cordset |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Shielded |
|
Rated Voltage |
30 V AC / 42 V DC |
|
Data Transmission |
Fast Ethernet Cat5e |
|
Data Transmission Rate |
100Mbit/s |
|
Type of Contact / Gender |
Male |
|---|---|
|
Connector Design |
Straight |
|
Number of Pins |
8 |
|
Coding |
RJ45 |
|
Ambient Temperature (Operation)* |
- 20 °C - + 75 °C |
|
Protection Degree / IP Rating** |
IP20 |
|
Housing Material |
Copper alloy PC - Polycarbonate, UL 94V-2 rated |
|
Attachment Plating |
Gold plating in contact area |
|
Cable Type |
2P Cat5e SF/UTP PE/PVC CABLE |
|---|---|
|
Number of Wires |
4 |
|
Minimal Bending Radius (Flexible Inst) |
10 * OD |
|
Conductor material |
Stranded Bare Copper |
|
Cable Jacket Material |
PVC |
|
Cable Jacket Color |
Teal similarly RAL5021 |
|
Cable Diameter D |
6.3 mm |
|
Wire Insulation Material |
Polyolefin |
|
Insulated Wire Diameter |
1.15 mm |
|
Ambient Temperature (Fixed Installation) |
‐25°C to +80°C |
|
UL Cable Type |
AWM Style 2095 |
|
Flammability Class (Cable Jacket) |
FT2/IEC 60332‐1 |
|
Min No. of Drag Chain Cycles |
1 million |
|
Cable Characteristics |
Min. 1 million cycles |
|
Type of Contact / Gender, Side 2 |
Male |
|---|---|
|
Connector Design, Side 2 |
Straight |
|
Number of Pins, Side 2 |
8 |
|
Coding, Side 2 |
RJ45 |
|
Ambient Temperature (Operation), Side 2* |
- 20 °C - + 75 °C |
|
Protection Degree / IP Rating, Side 2** |
IP20 |
|
Housing Material, Side 2 |
Copper alloy PC - Polycarbonate, UL 94V-2 rated |
|
Attachment Plating, Side 2 |
Gold plating in contact area |
|
RoHS Compliant |
Yes |
|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|
|
Update and Revision |
Revision Number: 0.50 Revision Date: 06-29-2023 |
|---|
| Item # | Item Description | Cable Length |
|---|---|---|
| E5JSJSE90540100 | EIP 100Mbps RJ45-RJ45 2P24 1m | 1 m |
| E5JSJSE90540500 | EIP 100Mbps RJ45-RJ45 2P24 5m | 5 m |
| E5JSJSE90541000 | EIP 100Mbps RJ45-RJ45 2P24 10m | 10 m |
