Single-Ended Cordsets

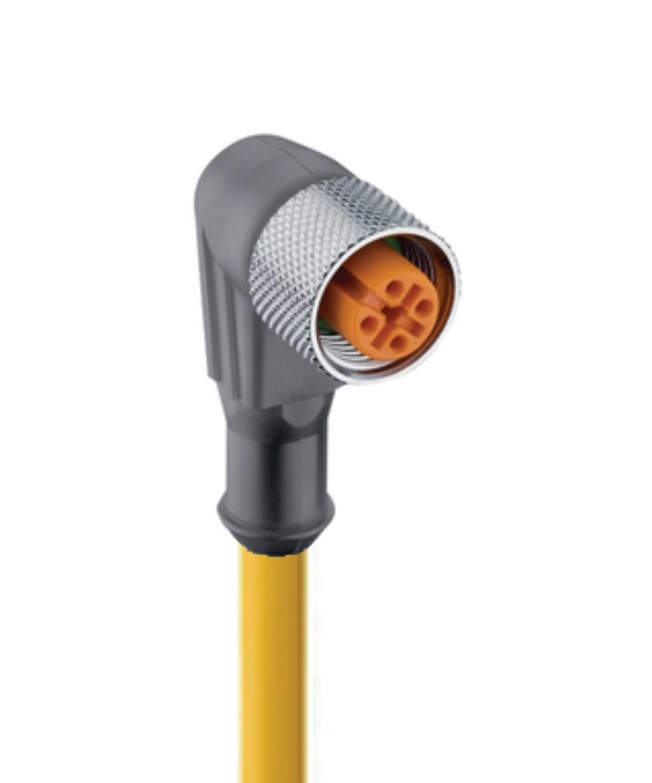

Sensor / Actuator Connector: M12 Standard, Cordset, Single ended, Angled Female, 4-pole, 250 V | 4 A; with Yellow TPE 4x22 AWG cable, PLTC Rated

Specifications

Product Family	Sensor / Actuator Connector
Side 1 Product Sub Family	M12 Standard
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	4
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Coupling Nut
Voltage Rating	250 V
Rated Impulse Voltage	2.5 kV
Operating Voltage	230 V AC/DC
Current Rating	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuSn
Side 1 Contact Plating	Cu/Au
Contact Bearer Material	TPU
Contact Bearer Color	Black or Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Grey Transluscent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn, Nickel-plated, Internal thread
O-Ring Material	FKM, green or black

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Number	773
Conductor Size	22 AWG
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 8 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Conductor Material	Cu [Bare Copper]
Cable Jacket Material	TPE-C
Cable Jacket Color	Yellow
Cable Diameter D	Ø 4.98 mm
Wire Insulation Material	PVC-SR
Insulated Wire Diameter	Ø 1.19 mm
Ambient Temperature (Fixed Installation)	- 40 to 105°C
Ambient Temperature (Flex Installation)	- 15 to 90°C
Ambient Temperature (Drag Chain Inst)	- 15 to 90°C
UL Cable Type	(UL) PLTC 105C SUN RES OR (CSA) C(UR) AWM I/II A/B 105C, 300V
Flammability Class (Cable Jacket)	FT1
Cable Characteristics	Mechanical Properties: Excellent flexibility for C-track /drag chain, High Impact Strength, Tear & Abrasion \| Resistance Properties: Chemicals such as Acids, Degreaser Solvents, Alcohol and Alkalis, Petroleum Liquids such as Oil, Gas, and Grease, Weld Spark, Sunlight, and Ozone

RoHS Compliant	Yes

Note Derating	Notice derating
Protection Degree / IP Rating Note	Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product
