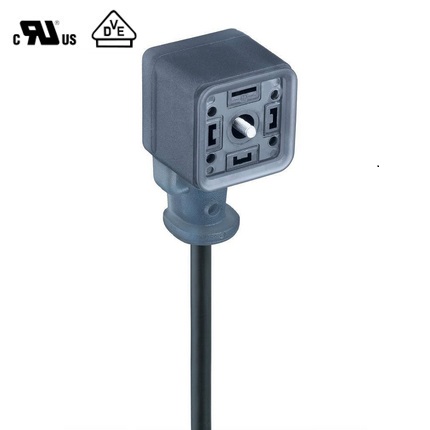

GAN DIN Standard Single-Ended Cordset: Form A, 4-pin (3+1PE; PE across cable outlet), grey translucent body, without circuitry, 230 V AC/DC, 6 A; PUR black cable, 0.50 mm²
| Pin 1 | Pin 2 | Pin 3 | PE |
|---|---|---|---|
| brown | blue | black | green-yellow |
|
Product Family |
Valve Connectors |
|---|---|
|
Product Sub Family |
GAN |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
3+PE (PE across cable outlet) |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Central Screw |
|
Rated Impulse Voltage |
4.0 kV |
|
Operating Voltage |
230 V AC/DC |
|
Rated Current* |
6 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 50 |
|
Ambient Temperature (Operation)* |
-25 °C - +85 °C (With additional 934-887-001 gasket : -40 °C - +105 °C) |
|
Protection Degree / IP Rating** |
IP65, IP67 (IP69K: without additional gasket; max. +80 °C) |
|
Design Standard |
DIN EN 175301-803-A, ISO 4400 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Sn |
|
Contact Bearer Material |
PA GF |
|
Contact Bearer Color |
black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Molded Body Material |
TPE |
|
Molded Body Color |
Grey translucent |
|
Flammability Class (Molded Body) |
UL 94 HB |
|
Attachment Material |
Steel, Philips combi slot |
|
Gasket Material |
Molded Integrated Gasket |
|
Protection Circuitry |
No Circuitry |
|---|---|
|
Fastening Torque (Attachment) |
(50-60) Ncm |
|
Cable Number |
744 |
|---|---|
|
Conductor Size |
0.5 mm² |
|
Number of Wires |
4 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 4.8 ± 0.20 mm |
|
Wire Insulation Material |
PP |
|
Insulated Wire Diameter |
ø 1.50 ± 0.05 mm |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 80 °C |
|
Ambient Temperature (Flex Installation) |
- 5 °C - + 80 °C |
|
UL Cable Type |
AWM: 20549 |
|
VDE |
yes |
|---|
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
yes |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 934889009 | GAN31LU-A0U-7440200-1UC | 2 m |
| 934889010 | GAN31LU-A0U-7440500-1UC | 5 m |
| 934889011 | GAN31LU-A0U-7441000-1UB | 10 m |
| 21461 | GAN31LU-A0U-7441500-1UB | 15 m |
