GSSA 300

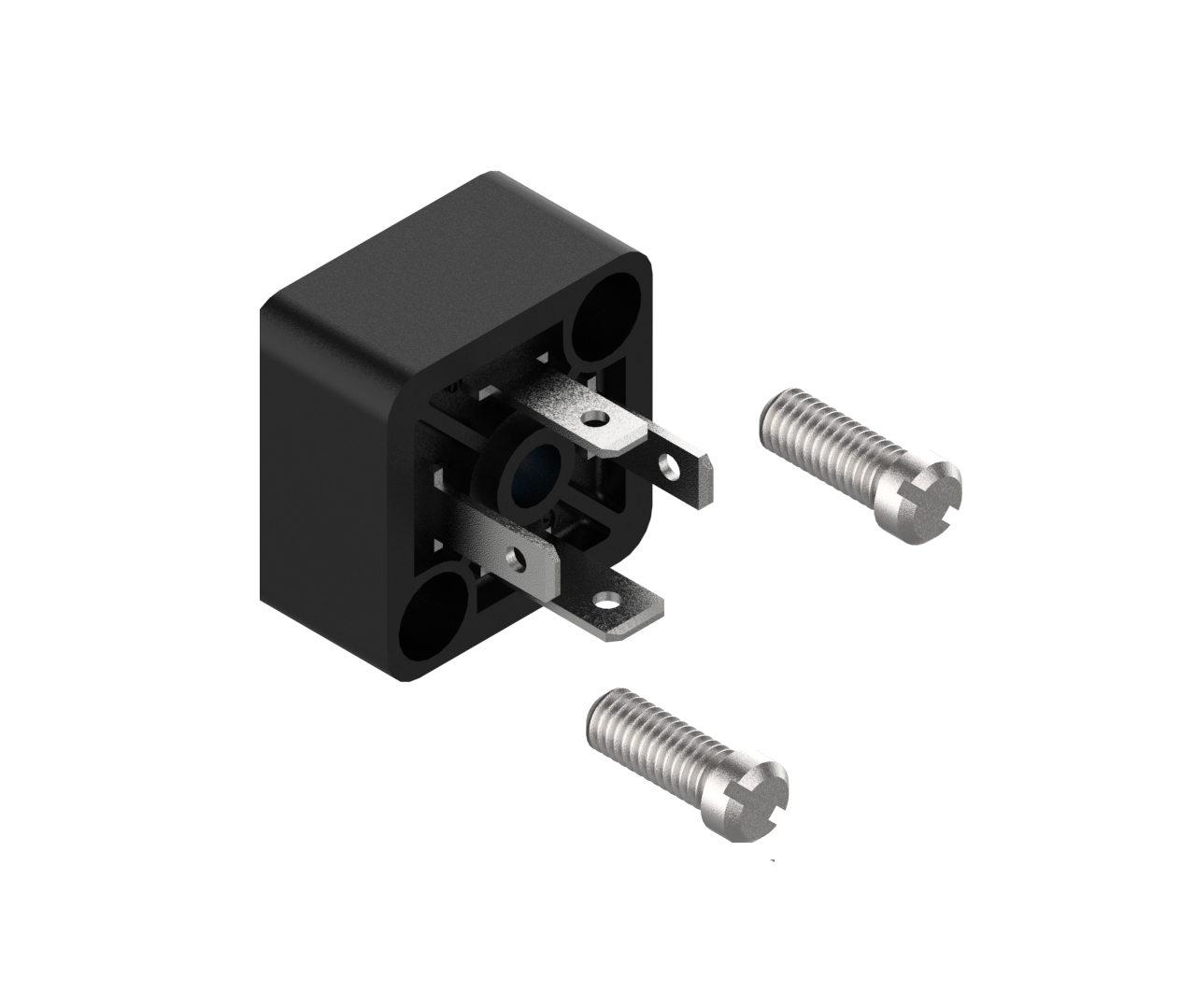

GSSA Industrial Standard Receptacle: Form C, 4-pin (3+1PE), UL 1977, black contact bearer, solder type; 230 V AC/DC, 6 A

Request Quote

Get Product Alerts

Specifications

Report An Error

Product Family	Valve Connectors
Product Sub Family	GSSA Industrial Standard
Connector Type	Receptacle
Type of Contact / Gender	Male
Connector Design	Straight
Number of Pins	3+PE
Coding	C
Shielding	Unshielded
Attachment Type	Central Screw
Rated Voltage	250 V
Rated Voltage (UL)	250 V
Rated Voltage (CSA)	300 V AC/DC
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Rated Current*	6 A
Rated Current (UL)*	6 A
Rated Current (CSA)*	6 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Solder
Conductor Cross Section	0.08 - 0.75 mm²
Ambient Temperature (Operation)*	-40 °C - +125 °C
Operating Temperature (UL)	max. + 65 °C
Operating Temperature (CSA)	max. + 65 °C
Protection Degree / IP Rating**	IP65
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Contact Plating	Cu/Au
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Housing Color	black

Fastening torque (mounting screw)	(50-60) Ncm
Mounting	M3 (2x)

RoHS Compliant	yes

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
