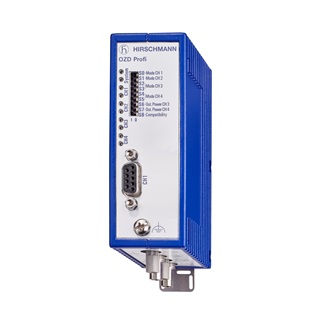

OZD Profi 12M G11

New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quartz glass FO; approval for Ex-zone 2 (Class 1, Div. 2)

...
New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quartz glass FO; approval for Ex-zone 2 (Class 1, Div. 2)
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product description

Type

OZD Profi 12M G11

Name

OZD Profi 12M G11

Port type and quantity

1 x optical: 2 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1

Signal Type

PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)

More Interfaces

Measuring outputs "Optical input power"

8-pin terminal block, screw mounting

Power Supply

8-pin terminal block, screw mounting

Signaling contact

8-pin terminal block, screw mounting

Network size - length of cable

Single mode fiber (SM) 9/125 µm

-

Multimode fiber (MM) 50/125 µm

3000 m, 13 dB link budget at 860 nm; A = 3 dB/km, 3 dB reserve

Multimode fiber (MM) 62.5/125 µm

3000 m, 15 dB link budget at 860 nm; A = 3.5 dB/km, 3 dB reserve

Multimode fiber HCS (MM) 200/230 µm

1000 m, 18 dB link budget at 860 nm; A = 8 dB/km, 3 dB reserve

Multimode fiber POF (MM) 980/1000 µm

-

Power requirements

Current consumption

max. 190 mA

Input voltage range

-7 V ... +12 V

Operating Voltage

18 ... 32 VDC, typ. 24 VDC

Power consumption

4.5 W

Redundancy functions

redundant 24 V infeed
Power Output

Output voltage/output current (pin6)

5 VDC +5%, -10%, short circuit-proof/10 mA

Ambient conditions

MTBF (Telecordia SR-332 Issue 3) @ 25°C

3 645 832 h

Operating temperature

0-+60 °C

Storage/transport temperature

-40-+70 °C

Dimensions (WxHxD)

39.5 x 137.5 x 84 mm

Relative humidity (non-condensing)

10-95 %

Housing Material

die-cast zink

Mounting

DIN rail or mounting plate

Weight

560 g

Protection class

IP40

Approvals

Basis Standard

EU Conformity, FCC Conformity, AUS Conformity Australia

Safety of industrial control equipment

cUL61010-2-201

Hazardous locations

ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
Reliability

Guarantee

60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery

device, start-up instructions

Show All Specifications
Hide Specifications
Part Numbers
Item # Type
942148001 OZD Profi 12M G11
