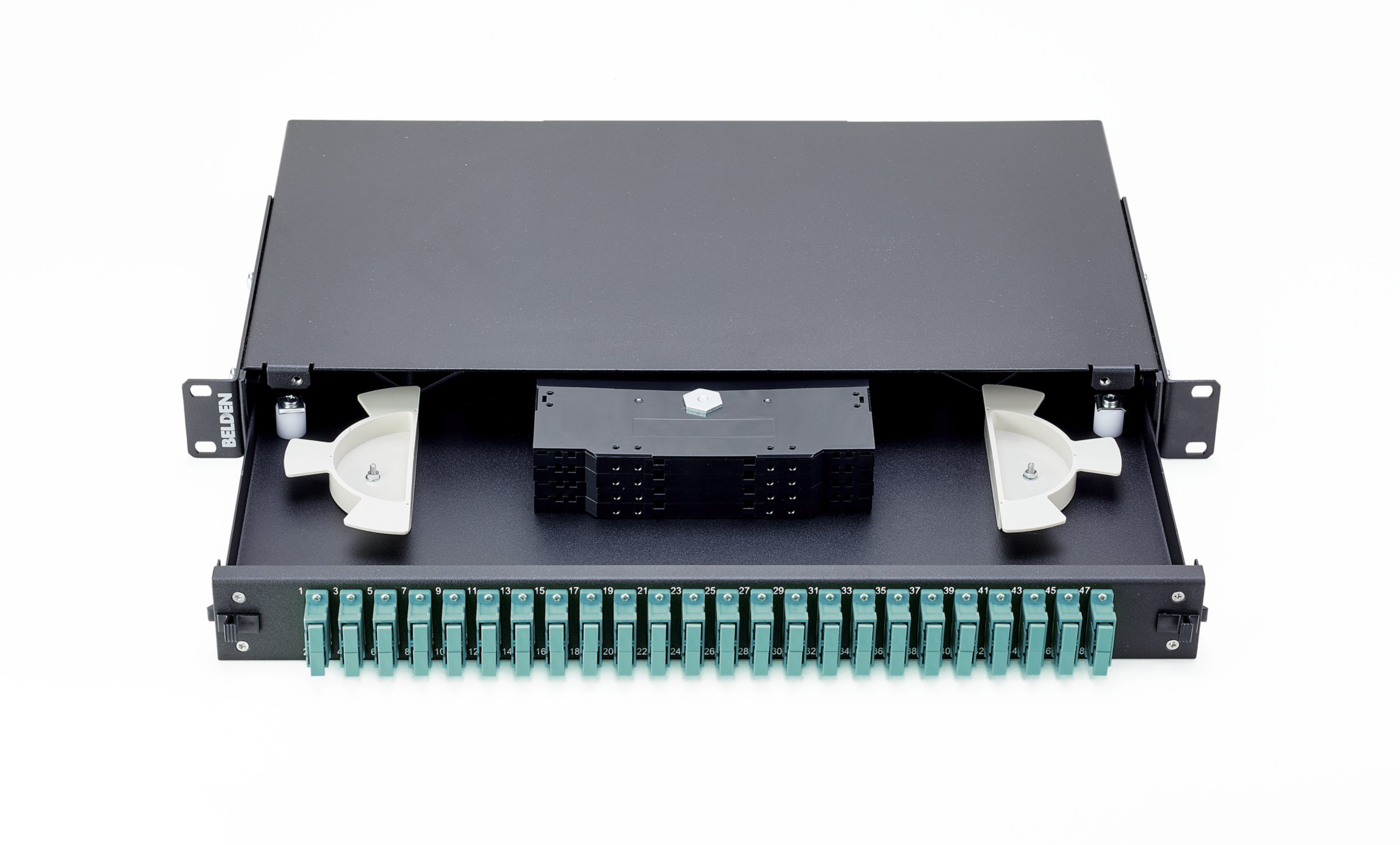

FX-EASE PP 1U 48F OM3 SC

1U FX@EASE 24-port Duplex SC OM3 Patch Panel - without pigtails

...
1U FiberExpress@EASE 24-port Duplex SC OM3 Termination/Splice Patch Panel - without pigtails
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Environmental Space

Indoor

Suitable Applications

FiberExpress@ease Solutions, Backbone, Telecommunications Room, Main Distribution Room, Workstation Area

Construction

Weight

2.500 kg

Height

44 mm

Width

482 mm

Depth

251.5 mm
Physical Specifications

Max Capacity

48

Mechanical Characteristics
Mechanical Tests
Description

Front Connection

Flush

Footprint/Type

SC

Temperature Range

Operating Temperature Range

-10°C To +60°C

Installation Temperature Range

-10°C To +60°C

Storage Temperature Range

-10°C To +60°C

Product Material
Materials
Description Material Color
Panel Textured powder coated Steel Black
Fiber Adapter Plastic, Fully loaded with 24 SC duplex adapters Aqua
Accessories inside panel 4 pcs splice trays/holders, cable management, 2 pcs Cable glands, angled cable entry brackets
Standards

TIA/EIA Compliance

ISO/IEC 11801-1:2017

MII Order #39 (China RoHS)

EUP 50

Related Part Numbers

Related Parts

Fiber cables, Fiber patch cords, Fiber cable assemblies

Product Notes

Packaging

Individually packaged in a box.

History

Update and Revision

Revision Number: 0.33 Revision Date: 01-27-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color EAN
NN01405.3M24 Black 8719605177360
