Product Number: 9251
52 Ohm, RG8, 13 AWG, CMX

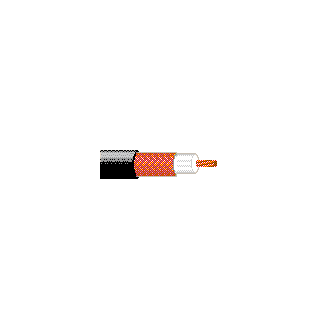

RG-8/U type, 13 AWG stranded (7x21) .085" bare copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), non-contaminating PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 13 | 7x21 | BC - Bare Copper | 0.085 in | 1 |
|
Conductor Count |
1 |
|---|
Insulation
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PE - Polyethylene | 0.285 in | 0.285 in |
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Bare Copper (BC) | 95% |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride (Non-Contaminating) | 0.405 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 1.9 Ohm/1000ft | 1.9 Ohm/1000ft | 1.2 Ohm/1000ft | 1.2 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 28.5 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.079 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 52 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.2 dB/100ft |
| 10 MHz | 0.6 dB/100ft |
| 50 MHz | 1.3 dB/100ft |
| 100 MHz | 1.9 dB/100ft |
| 200 MHz | 2.8 dB/100ft |
| 400 MHz | 4.2 dB/100ft |
| 700 MHz | 5.9 dB/100ft |
| 900 MHz | 6.9 dB/100ft |
| 1000 MHz | 7.4 dB/100ft |
| 4000 MHz | 23.2 dB/100ft |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.54 ns/ft | 66% |
Voltage
| Non-UL Voltage Rating | UL Voltage Rating |
|---|---|
| 3700 V RMS | 150 V RMS |
| 30 V RMS (UL AWM Style 1354) |
Temperature Range
|
UL Temp Rating |
60°C |
|---|---|
|
Operating Temperature Range |
-40°C To +80°C |
Mechanical Characteristics
|
Bulk Cable Weight |
105 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
190 lbs |
|
Min. Bend Radius/Minor Axis |
4 in |
Standards
|
NEC/(UL) Compliance |
CMX |
|---|---|
|
CEC/C(UL) Compliance |
CMX |
|
UL AWM Style Compliance |
AWM 1354 (30 V 60°C) |
|
RG Type |
8 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor (Not Riser or Plenum) |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Aerial |
Yes |
|---|---|
|
Suitability - Indoor |
Yes |
|
Suitability - Outdoor |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
VW-1 |
|---|---|
|
UL voltage rating |
150 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
History
|
Update and Revision |
Revision Number: 0.386 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.386 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 9251 010500 | Black | Reel | 500 ft | 612825225782 |
| 9251 0101000 | Black | Reel | 1,000 ft | 612825225775 |
