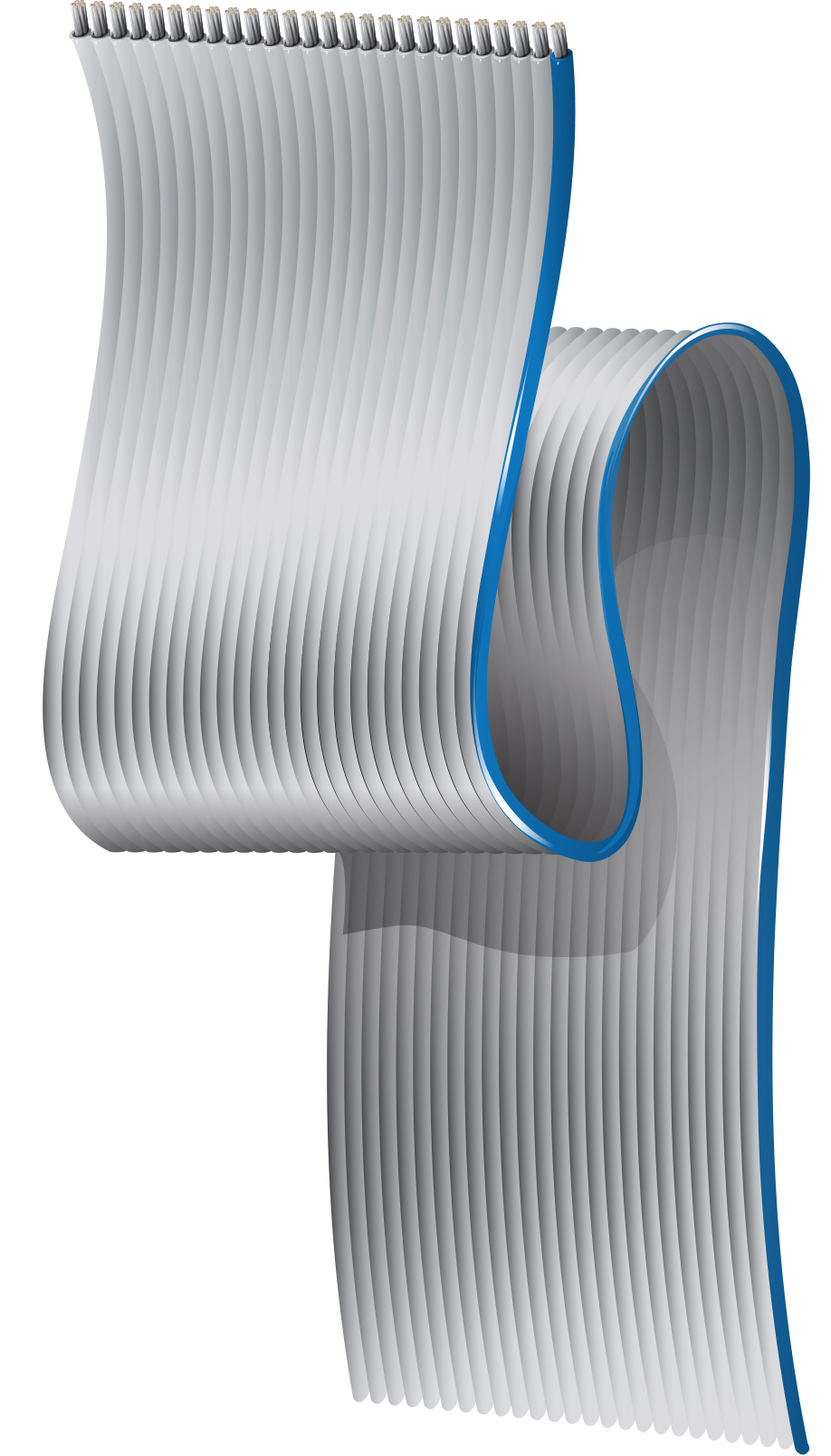

Product Number: 9L26034
Flat Gray Ribbon Cable .050" Pitch, 9L260XX Series, #26-34c, PVC Ins
Flat Gray Ribbon Cable .050" Pitch, 9L260XX Series, 34 Conductor, 26 AWG (7x34) Tinned Copper, PVC Insulation
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material |
|---|---|---|
| 26 | 7x34 | TC - Tinned Copper |
|
Conductor Count |
34 |
|---|
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| PVC - Polyvinyl Chloride | 0.010 in |
Color Chart
| Color |
|---|
| Gray |
|
Table Notes |
First Conductor has Blue Stripe |
|---|
Construction and Dimensions
|
Conductor Spacing Center-Center |
.050 +/- .002 in |
|---|---|
|
Conductor Spacing Center-Center Outside |
1.650 +/- .011 in |
|
OuterJacket1, Nominal Width |
1.700 +/- .011 in |
|---|---|
|
OuterJacket1, Nom Thick Flat Section |
0.039 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 43 Ohm/1000ft |
Capacitance
| Element | Nom. Capacitance Conductor to Conductor |
|---|---|
| @ 1 kHz (GSG) | 23 pF/ft |
| @ 1 MHz (GS) | 11 pF/ft |
| @ 1 MHz (GSG) | 18 pF/ft |
|
Min Insulation Resistance |
|
|---|
Inductance
| Element | Nominal Inductance |
|---|---|
| @ 1 MHz (GS) | 0.23 µH/ft |
| @ 1 MHz (GSG) | 0.15 µH/ft |
Impedance
| Nominal Balanced Characteristic Impedance Description | Nominal Characteristic Impedance | Nominal Characteristic Impedance Description |
|---|---|---|
| (GS) | 135 Ohm | (GS) |
| (GSG) | 90 Ohm | (GSG) |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 10 MHz | 3.9 dB/100ft |
| 20 MHz | 6.4 dB/100ft |
| 30 MHz | 8.7 dB/100ft |
| 40 MHz | 13 dB/100ft |
| 50 MHz | 16.9 dB/100ft |
| 60 MHz | 20.1 dB/100ft |
| 70 MHz | 22.5 dB/100ft |
| 80 MHz | 23.9 dB/100ft |
| 90 MHz | 25.1 dB/100ft |
| 100 MHz | 26.4 dB/100ft |
|
Table Notes |
GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode |
|---|
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.48 ns/ft | 68% |
Unbalanced Crosstalk
| Element | Typical Unbalanced NEXT % | Typical Unbalanced FEXT % | Typical Cross Talk Pulse Rise Time (ns) |
|---|---|---|---|
| 10 ft. sample length | 5.2 | 6.2 | 3 ns |
| 10 ft. sample length | 4.2 | 5 | 5 ns |
| 10 ft. sample length | 3.3 | 3.8 | 7 ns |
Current
| Max. Recommended Current [A] |
|---|
| 1.5 Amps per Conductor at 20ºC |
Voltage
| Dielectric Withstand Voltage | UL Voltage Rating |
|---|---|
| 2000 V | 300 V |
Temperature Range
|
Operating Temperature Range |
-40°C to +105°C |
|---|
Mechanical Characteristics
|
Bulk Cable Weight |
56 lbs/1000ft |
|---|---|
|
Min Bend Radius (Overall Cable) |
2.4 |
|
Min. Bend Radius/Minor Axis |
0.5 in |
Standards
|
UL AWM Style Compliance |
AWM 2651 |
|---|---|
|
CSA AWM Compliance |
I A |
Applicable Environmental and Other Programs
|
EU Directive Compliance |
Yes |
|---|---|
|
EU CE Mark |
Yes |
|
CA Prop 65 (CJ for Wire and Cable) |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
VW-1 |
|---|---|
|
UL voltage rating |
300 V |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.327 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.327 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Length | UPC |
|---|---|---|---|
| 9L26034 008H100 | Gray | 100 ft | 612825221562 |
