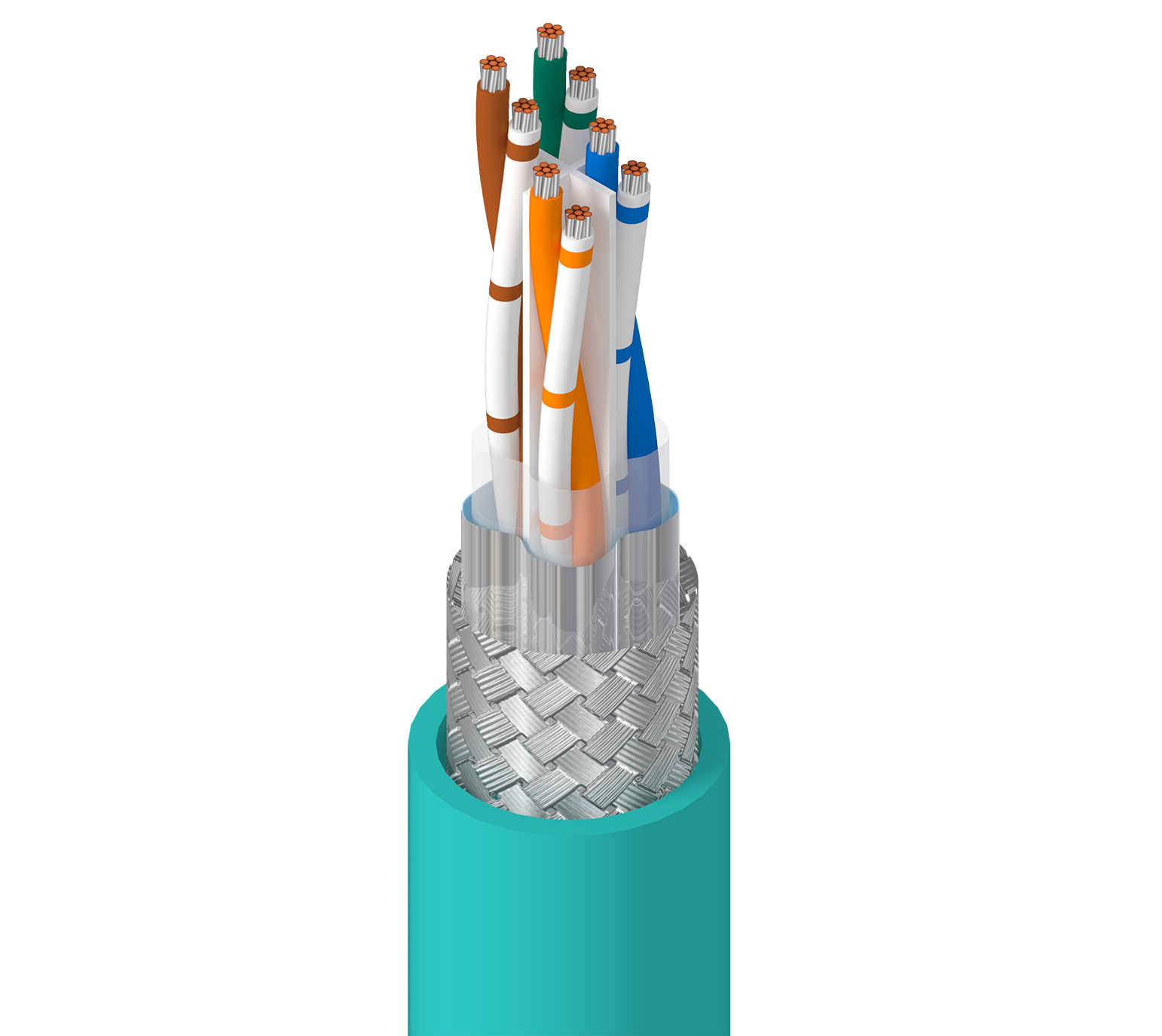

IEA004

High Flex Cat 6A 24AWG

...
DATATUFF INDUSTRIAL ETHERNET SHIELDED CAT6A, 4 PAIR 24AWG (STRANDED 7X32) TINNED COPPER, HDPE INSULATION, X-SPLINE, TPE OUTER JACKET, UL CMR RATED, CMX OUTDOOR RATED, OIL RES II, SUN RES, AWM 600V
Get Product Alerts
Specifications
Product Overview

Suitable Applications

High Flex, Automation, Robotics, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 7x32 TC - Tinned Copper 4
Insulation
Material
PE - Polyethylene

Bonded-Pair

No

Color Chart
Color
White/Blue & Blue
White/Orange & Orange
White/Green & Green
White/Brown & Brown
Outer Shield
Type Material Coverage [%]
Tape Bi-Laminate (Alum+Poly) 100%
Braid 75%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
TPE - Thermoplastic Elastomer .322 in. .033 in. mm
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
14 Ohms/100m @ 20C 0.04 %
Capacitance
Nom.Mutual Capacitance
17 pF/ft
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
540 ns/100m 45 ns/100m 67%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.5 dB/100m 74.3 dB dB 72.3 dB dB 67.8 dB 64.8 dB 20.0 dB 100 +/- 15 Ohms 100 +/- 10 Ohms 40.0 dB 35.0 dB
4 MHz 4.6 dB/100m 65.3 dB dB 63.3 dB dB 55.8 dB 52.8 dB 23.0 dB 100 +/- 15 Ohms 100 +/- 15 Ohms 40.0 dB 23.0 dB
8 MHz 6.4 dB/100m 60.8 dB dB 58.8 dB dB 49.7 dB 46.7 dB 24.5 dB 100 +/- 15 Ohms 100 +/- 15 Ohms 40.0 dB 16.9 dB
10 MHz 7.1 dB/100m 59.3 dB dB 57.3 dB dB 47.8 dB 44.8 dB 25.0 dB 100 +/- 15 Ohms 100 +/- 15 Ohms 40.0 dB 15.0 dB
16 MHz 9.0 dB/100m 56.2 dB dB 54.2 dB dB 43.7 dB 40.7 dB 25.0 dB 100 +/- 15 Ohms 100 +/- 15 Ohms 38.0 dB 10.9 dB
20 MHz 10.1 dB/100m 54.8 dB 52.8 dB 41.8 dB 38.8 dB 25.0 dB 100 +/- 15 Ohms 100 +/- 15 Ohms 37.0 dB 9.0 dB
25 MHz 11.3 dB/100m 53.3 dB 51.3 dB 39.8 dB 36.8 dB 24.2 dB 100 +/- 15 Ohms 100 +/- 15 Ohms 36.0 dB 7.0 dB
31.25 MHz 12.6 dB/100m 51.9 dB 49.9 dB 7.9 dB 34.9 dB 23.3 dB 100 +/- 15 Ohm 100+/- 10 Ohm 35.1 dB 5.5 dB
62.5 MHz 18.0 dB/100m 47.4 dB 45.4 dB 31.9 dB 28.9 dB 20.7 dB 100 +/- 15 Ohm 100 +/- 10 Ohm 32 dB
100 MHz 23.0 dB/100m 44.3 dB 42.3 dB 27.8 dB 24.8 dB 19.0 dB 100 +/- 15 Ohm 100 +/- 10 Ohm 30.0 dB
200 MHz 33.1 dB/100 39.8 dB 37.8 dB 21.8 dB 18.8 dB 19.0 dB 100 +/- 22 Ohms 100 +/- 10 Ohms 27.0 dB
250 MHz 37.3 dB/100m 38.3 dB 36.3 dB 19.8 dB 16.8 dB 15.6 dB 100 +/- 32 Ohms 100 +/- 10 Ohms 26.0 dB
300 MHz 41.1 dB/100m 37.1 dB 35.1 dB 18.3 dB 15.3 dB 14.9 dB 100 +/- 32 Ohms 100 +/- 10 Ohms 25.2 dB
400 MHz 48.1 dB/100m 35.3 dB 33.3 dB 15.8 dB 12.8 dB 13.8 dB 100 +/- 32 Ohm 100 +/- 10 Ohm 24.0 dB
500 MHz 54.3 dB/100m 33.8 dB 31.8 dB 13.8 dB 10.8 dB 13.0 dB 100 +/- 32 Ohm 100 +/- 10 Ohm 23.0 dB
Voltage
UL Description UL Voltage Rating
UL 2463 600 V
Temperature Range

Installation Temp Range

-20°C To +80°C

UL Temp Rating

80°C

Storage Temp Range

-40°C To +80°C

Operating Temp Range

-40°C To +80°C

Mechanical Characteristics

Oil Resistance

Oil Res II

Bulk Cable Weight

48 lbs/1000 ft

Max. Pull Tension

32 lbs

Min. Bend Radius During Installation

2.58"

Standards

NEC/(UL) Compliance

UL 444

UL AWM Style Compliance

2463

Data Category

Category 6A

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (RoHS 2)

Yes

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Aerial

No

Suitability - Burial

No

Suitability - Hazardous Locations

No

Suitability - Indoor

Yes

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL 1666 - Riser

History

Update and Revision

Revision Number: 0.19 Revision Date: 09-08-2021
