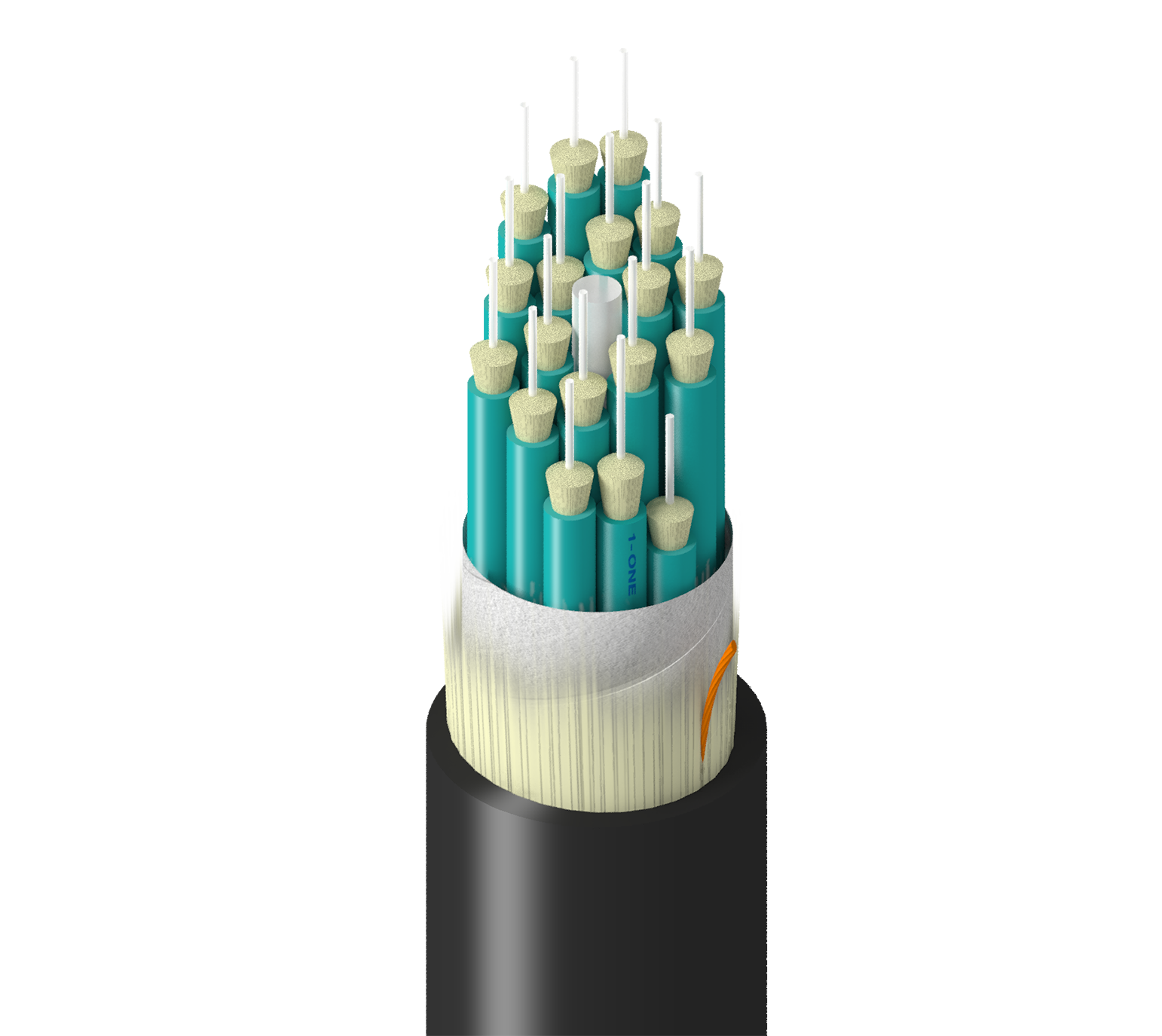

Fiber Breakout Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations
Fiber Core Diameter
LSZH - Low Smoke Zero Halogen
Fiber Color Coding
Number of Active Subunits
Number of Fillers
Fibers Per Subunit
0.078 in (2.0 mm)
Subunit Strength Members
Waterblocking aramid yarns
Central Strength Member
Waterblocking Aramid Yarns
LSZH - Low Smoke Zero Halogen (Flame Retardant)
0.530 in (13.5 mm)
Number of Ripcords
Min. Bend Radius During Installation
15x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600 lbf)
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
118 lbs/kft (176 kg/km)
Installation Temp Range
-10°C to +60°C
Operating Temp Range
-40°C to +70°C
Storage Temp Range
Indoor/Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire
Update and Revision
Revision Number: 0.10 Revision Date: 10-14-2021
