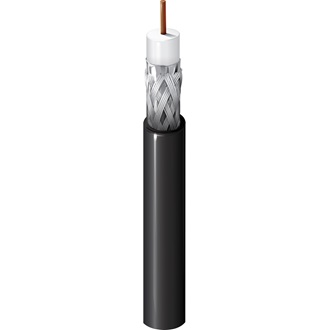

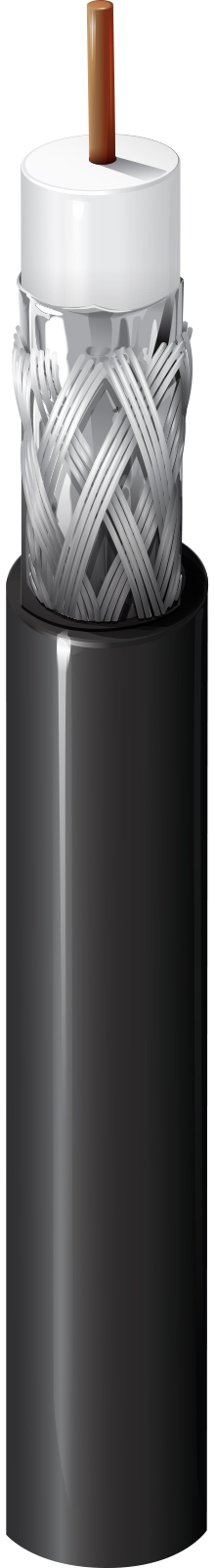

1695PX

75 Ohm SDI Coax, RG-6, 18 AWG Solid BC, Foil + 95% TC Braid, PVDF Jacket, I/O CMP

...
75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, PVDF Jacket, Indoor/Outdoor CMP
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Outside Plant, Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

Construction Details

RG Type

6

Conductor
Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BC - Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
FEP - Fluorinated Ethylene Propylene (Foam) 0.170 in (4.32 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
2 Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
FEP - Fluorinated Ethylene Propylene 0.229 in (5.82 mm)

Overall Cable Diameter (Nominal)

0.229 in (5.82 mm)

Electrical Characteristics
Return Loss
Frequency Min. Return Loss
5 - 1600 MHz 23 dB
1600 - 4500 MHz 21 dB
4500 - 6000 MHz 15 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.24 dB/100ft
3.58 MHz 0.45 dB/100ft
5 MHz 0.55 dB/100ft
7 MHz 0.65 dB/100ft
10 MHz 0.75 dB/100ft
67.5 MHz 1.74 dB/100ft
71.5 MHz 1.78 dB/100ft
88.5 MHz 1.94 dB/100ft
100 MHz 2.1 dB/100ft
135 MHz 2.4 dB/100ft
143 MHz 2.5 dB/100ft
180 MHz 2.8 dB/100ft
270 MHz 3.4 dB/100ft
360 MHz 4.0 dB/100ft
540 MHz 5.2 dB/100ft
720 MHz 6.1 dB/100ft
750 MHz 6.2 dB/100ft
1000 MHz 7.4 dB/100ft
1500 MHz 9.5 dB/100ft
2000 MHz 11.3 dB/100ft
2250 MHz 12.2 dB/100ft
3000 MHz 14.6 dB/100ft
4500 MHz 18.6 dB/100ft
6000 MHz 22.4 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
6.4 Ohm/1000ft (21 Ohm/km) 2.8 Ohm/1000ft (9.2 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Temperature Operating
125°C -20°C to 125°C
Bend Radius
Installation Min.
2.3 in (58 mm)

Max. Pull Tension

92 lbs (42 kg)

Bulk Cable Weight

41 lbs/1000ft (61 kg/km)

Standards and Compliance

Environmental Suitability

Indoor/OutdoorIndoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire

Flammability / Reaction to Fire

NFPA 262, FT6

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.10 Revision Date: 02-20-2024
