4694PX

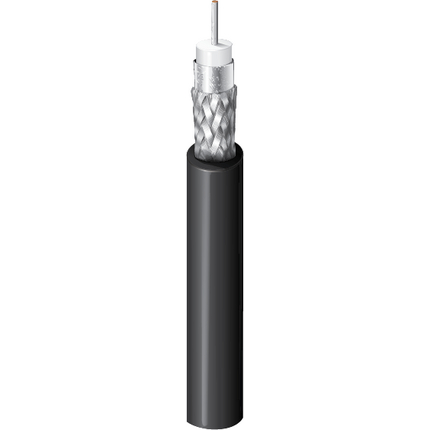

4K UHD Coax for 12G-SDI, 75 Ohm, RG-6, 18 AWG Solid SC, Foil + 95% TC Braid, PVDF Jacket, I/O CMP

...
75 Ohm SDI Coax, RG-6, 18 AWG Solid Silvered Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, PVDF Jacket, Indoor/Outdoor CMP
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p, OSP

Construction Details

RG Type

6

Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 18 AWG Solid 0.040 in SC - Silvered Copper
Insulation
Material Nom. Insulation Diameter Color Code
FEP - Fluorinated Ethylene Propylene (Foam) 0.168 in (4.27 mm) White
Inner Shield
Layer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® 100%
2 Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVDF - Polyvinylidene Fluoride 0.229 in (5.82 mm)

Overall Cable Diameter (Nominal)

0.229 in (5.82 mm)

Electrical Characteristics
Return Loss
Frequency Min. Return Loss
5 - 1600 MHz 23 dB
1600 - 4500 MHz 21 dB
4500 - 12000 MHz 15 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.23 dB/100ft
3.58 MHz 0.46 dB/100ft
5 MHz 0.54 dB/100ft
6 MHz 0.58 dB/100ft
7 MHz 0.63 dB/100ft
10 MHz 0.73 dB/100ft
12 MHz 0.80 dB/100ft
25 MHz 1.11 dB/100ft
55 MHz 1.57 dB/100ft
67.5 MHz 1.73 dB/100ft
71.5 MHz 1.77 dB/100ft
88.5 MHz 1.92 dB/100ft
100 MHz 2.07 dB/100ft
135 MHz 2.39 dB/100ft
143 MHz 2.46 dB/100ft
180 MHz 2.76 dB/100ft
270 MHz 3.42 dB/100ft
360 MHz 4.02 dB/100ft
540 MHz 5.08 dB/100ft
720 MHz 6.01 dB/100ft
750 MHz 6.15 dB/100ft
1000 MHz 7.29 dB/100ft
1500 MHz 9.27 dB/100ft
2000 MHz 11.02 dB/100ft
2250 MHz 11.84 dB/100ft
3000 MHz 14.12 dB/100ft
4500 MHz 18.19 dB/100ft
6000 MHz 21.53 dB/100ft
12000 MHz 33.02 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
6.4 Ohm/1000ft (21 Ohm/km) 2.9 Ohm/1000ft (9.5 Ohm/km) 16.1 pF/ft (52.8 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
300 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
125°C -20°C to +125°C
Bend Radius
Stationary Min.
2.3 in (58 mm)

Max. Pull Tension

92 lbs (42 kg)

Bulk Cable Weight

36 lbs/1000ft (54 kg/km)

Standards and Compliance

Environmental Suitability

Indoor/OutdoorPlenum, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire

Flammability / Reaction to Fire

NFPA 262, FT6

NEC / UL Compliance

CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.13 Revision Date: 02-20-2024
