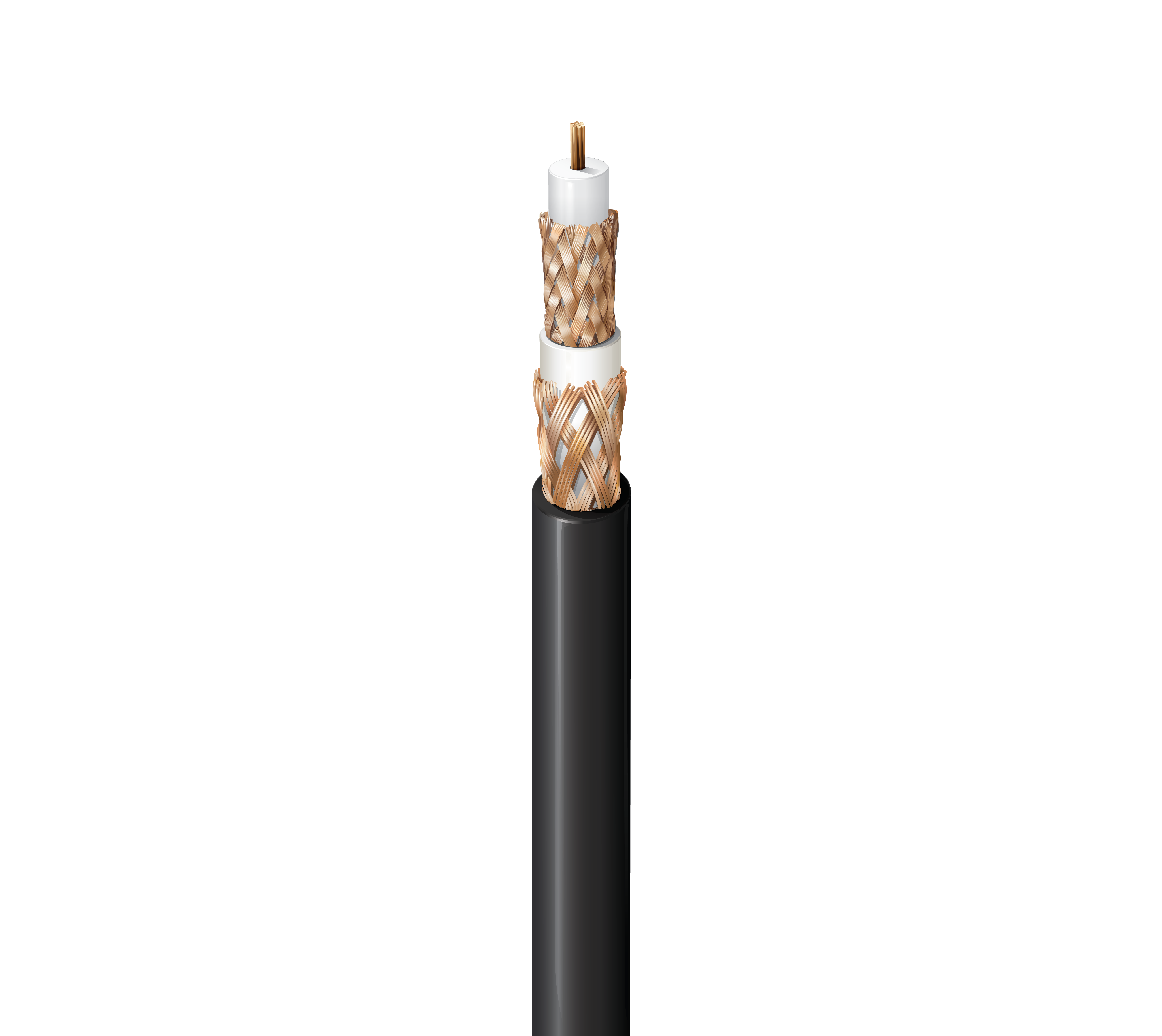

1859A

Triax, RG11, 15 AWG Str BC, Double BC Braids, PVDF Jkt, CMP

...
Triax, RG11, 15 AWG (19x27) Bare Copper Conductor, FEP Insulation, 95% Bare Copper Braid Shield, PVDF Insulation, 90% Bare Copper Braid Shield, PVDF Jacket, CMP
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Analog Video; Interconnect camera to CCU (camera control unit)

Construction Details

RG Type

11

Conductor
Size Stranding Nom. Diameter Material
15 AWG 19x27 0.064 in BC - Bare Copper
Insulation
Material Nom. Insulation Diameter
FEP - Fluorinated Ethylene Propylene (Foam) 0.285 in (7.24 mm)
Inner Shield
Layer Shield Type Material Coverage
1 Braid Bare Copper (BC) 95%
Inner Jacket
Material Nom. Diameter
PVDF - Polyvinylidene Fluoride 0.350 in (8.89 mm)
Outer Shield
Layer Outer Shield Type Material Coverage
1 Braid Bare Copper (BC) 90%
Outer Jacket
Material Nom. Diameter
PVDF - Polyvinylidene Fluoride 0.406 in (10.3 mm)
Electrical Characteristics
Return Loss
Frequency Min. Return Loss
5 - 850 MHz 21 dB
850 - 4500 MHz 15 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.10 dB/100ft
3.6 MHz 0.20 dB/100ft
10 MHz 0.50 dB/100ft
71.5 MHz 1.30 dB/100ft
135 MHz 1.90 dB/100ft
270 MHz 3.00 dB/100ft
360 MHz 3.60 dB/100ft
540 MHz 4.50 dB/100ft
720 MHz 5.40 dB/100ft
750 MHz 5.60 dB/100ft
1000 MHz 6.60 dB/100ft
1500 MHz 9.50 dB/100ft
2000 MHz 11.90 dB/100ft
2250 MHz 13.20 dB/100ft
3000 MHz 17.90 dB/100ft
4500 MHz 28.90 dB/100ft
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
3.0 Ohm/1000ft (9.8 Ohm/km) 1.4 Ohm/1000ft (4.6 Ohm/km) 1.3 Ohm/1000ft (4.3 Ohm/km) 16.5 pF/ft (54.1 pF/m) 75 Ohm 80%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Temperature Operating
125°C -20°C to +125°C
Bend Radius
Installation Min.
4.0 in

Max. Pull Tension

209 lbs (94.8 kg)

Bulk Cable Weight

127 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Plenum, Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

NFPA 262, FT6

NEC / UL Compliance

CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.348 Revision Date: 10-27-2021

Part Numbers
Item # Color Putup Type Length UPC
1859A 010500 Black Reel 500 ft 612825125136
1859A 0101000 Black Reel 1,000 ft 612825125129
1859A 0103000 Black Reel 3,000 ft 612825381129
1859A 0105000 Black Reel 5,000 ft 612825435785
