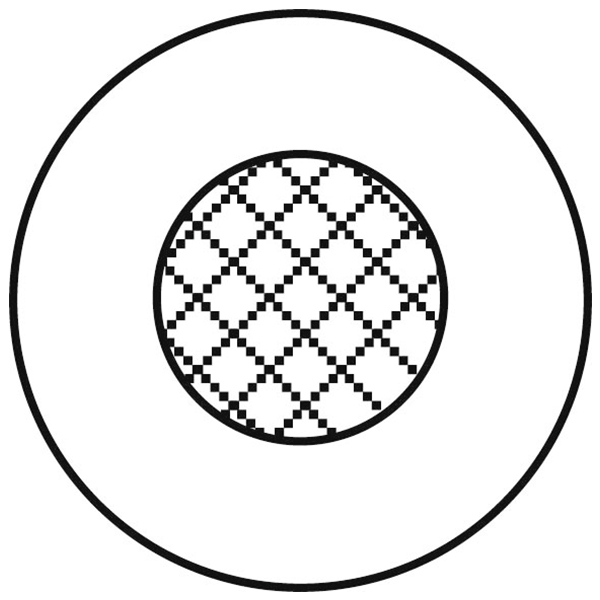

BE41201

Lead Wire, #20 Str TC, PVC Ins, AWM 1007

...
UL AWM ST1007 VW1 24AWG/7x32T CSA TR 64
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

UL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Construction n x D
24 Stranded TC - Tinned Copper 7x0.20 mm

Conductor Count

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness Nominal Wall Thickness
Insulation PVC - Polyvinyl Chloride 1.44 mm 0.06 mm 0.33 mm 0.38 mm
Construction and Dimensions

Min Elongation at Breakof Conductors

5 %
Electrical Characteristics
Conductor DCR
Element Max. Conductor DCR
Conductor(s) 83.9 Ohm/km

Min Insulation Resistance

0.762 MOhm*km

Voltage
UL Voltage Rating
300 V
Temperature Range

UL Temp Rating

80°C

Standards

UL AWM Style Compliance

AWM 1007

CSA Rating

CSA-C22.2 no. 16 Type TR-64

Military Compliance

N/A

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU CE Mark

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

300 V RMS

History

Update and Revision

Revision Number: 0.163 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE41201.003600 Black Reel 3,600 m 8719605024794
BE41201.0020K Black Reel 20,000 m 8719605024787
BE41201.101350 Blue Reel 1,350 m 8719605024893
BE41201.103600 Blue Reel 3,600 m 8719605024909
BE41201.043600 Brown Reel 3,600 m 8719605024831
BE41201.083600 Gray Reel 3,600 m 8719605024879
BE41201.053600 Green Reel 3,600 m 8719605024848
BE41201.063600 Orange Reel 3,600 m 8719605024855
BE41201.093600 Pink Reel 3,600 m 8719605024886
BE41201.073600 Red Reel 3,600 m 8719605024862
BE41201.013600 White Reel 3,600 m 8719605024800
BE41201.023600 Yellow Reel 3,600 m 8719605024817
