RTA1C0.75

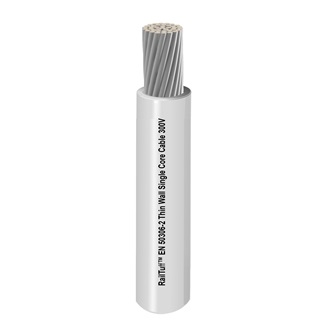

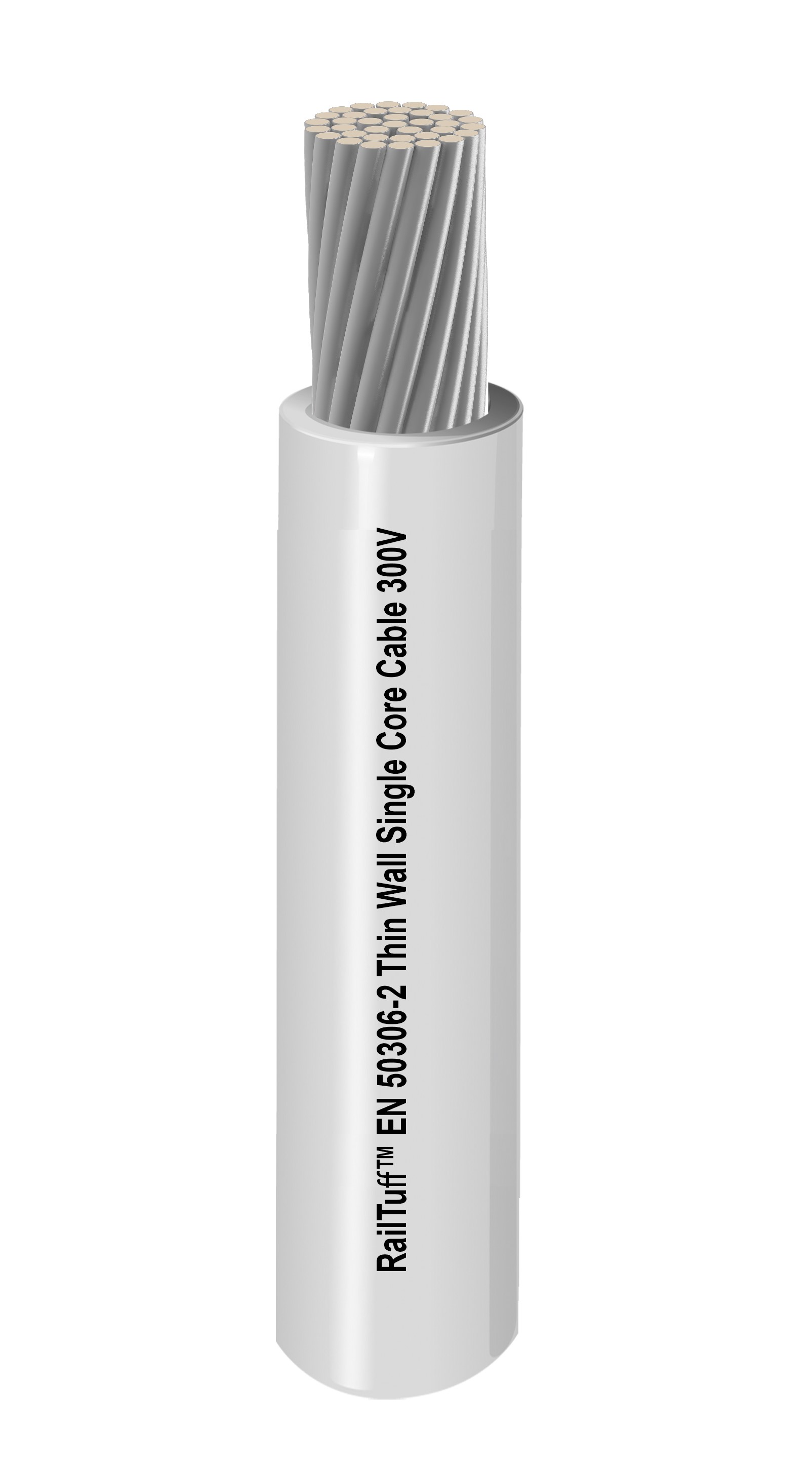

RailTuff™ Thin wall cable 300V 1 C 0.75 mm² Str TC, XLPO Ins

RailTuff™ Thin wall cable 300V 1 Core 0.75 mm² Stranded Tinned Copper, XLPO Insulation

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Suitable Applications	Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc

Size	Stranding	Material
0.75 mm²	37x0.16 mm	TC - Tinned Copper

Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
XLP, XLPO, XLPE	0.27 mm (0.011 in)	1.62 mm (0.0638 in)	White#1

Table Notes	D.C. stability at 300Vdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown

Overall Cable Diameter (Nominal)	1.62 ± 0.03 mm

Breakdown Voltage
2.5kVac/5min

Operating
-40°C to +120°C

Stationary Min.	Installation Min.
6 mm (0.24 in)	5 mm (0.20 in)

Bulk Cable Weight	8.4 kg/km (5.6 lbs/1000ft)

Flammability / Reaction to Fire	IEC 60332-1-2, EN 50305
European Halogen Free Standards	IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Update and Revision	Revision Number: 0.26 Revision Date: 11-27-2023
