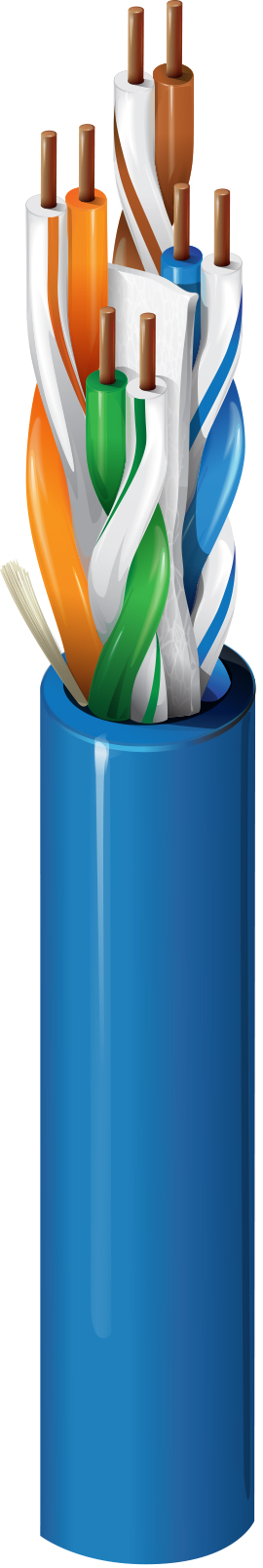

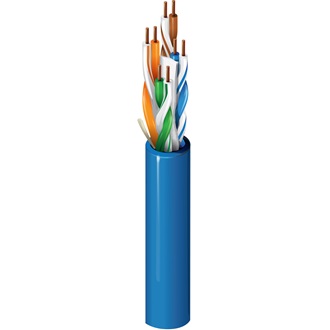

Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMR

...
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket
English Metric
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at <a href="https://www.belden.com/resources/patents">https://www.belden.com/resources/patents</a>.

Construction Details
Conductor
AWG Stranding Material Number of Pairs
23 Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

No

Outer Jacket Material
Separator Material Material Nom. Diameter Ripcord
Dielectric Tape (Patented) PVC - Polyvinyl Chloride 0.224 in Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. DCR Unbalance Max. Capacitance Unbalance Nom. Mutual Capacitance
78 Ohm/km 3% 330 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nom. Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 35 ns/100m 70%
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.0 dB/100m 79.3 dB 77.3 dB 77.3 dB 75.3 dB 70.8 dB 67.8 dB 20.0 dB 100 ± 15 102 ± 15
4 MHz 3.7 dB/100m 70.3 dB 68.3 dB 66.5 dB 64.5 dB 58.8 dB 55.8 dB 23.6 dB 100 ± 15 100 ± 15
8 MHz 5.3 dB/100m 65.8 dB 63.8 dB 60.5 dB 58.5 dB 52.7 dB 49.7 dB 25.3 dB 100 ± 15 100 ± 15
10 MHz 5.9 dB/100m 64.3 dB 62.3 dB 58.4 dB 56.4 dB 50.8 dB 47.8 dB 26.0 dB 100 ± 15 100 ± 15
16 MHz 7.4 dB/100m 61.2 dB 59.2 dB 53.8 dB 51.8 dB 46.7 dB 43.7 dB 26.0 dB 100 ± 15 100 ± 15
20 MHz 8.3 dB/100m 59.8 dB 57.8 dB 51.4 dB 49.4 dB 44.8 dB 41.8 dB 26.0 dB 100 ± 15 100 ± 15
25 MHz 9.4 dB/100m 58.3 dB 56.3 dB 49.0 dB 47.0 dB 42.8 dB 39.8 dB 25.5 dB 100 ± 15 100 ± 15
31.25 MHz 10.5 dB/100m 56.9 dB 54.9 dB 46.4 dB 44.4 dB 40.9 dB 37.9 dB 25.0 dB 100 ± 15 100 ± 15
62.5 MHz 15.1 dB/100m 52.4 dB 50.4 dB 37.3 dB 35.3 dB 34.9 dB 31.9 dB 23.5 dB 100 ± 15 100 ± 15
100 MHz 19.3 dB/100m 49.3 dB 47.3 dB 30.0 dB 28.0 dB 30.8 dB 27.8 dB 22.5 dB 100 ± 15 100 ± 15
155 MHz 24.5 dB/100m 46.4 dB 44.4 dB 21.9 dB 19.9 dB 27.0 dB 24.0 dB 21.6 dB 100 ± 22 100 ± 15
200 MHz 28.3 dB/100m 44.8 dB 42.8 dB 16.6 dB 14.6 dB 24.8 dB 21.8 dB 21.0 dB 100 ± 22 100 ± 15
250 MHz 31.8 dB/100m 43.3 dB 41.3 dB 11.5 dB 9.5 dB 22.8 dB 19.8 dB 20.5 dB 100 ± 32 100 ± 15
300 MHz 35.2 dB/100m 42.1 dB 40.1 dB 6.9 dB 4.9 dB 21.3 dB 18.3 dB 20.1 dB 100 ± 32 100 ± 15
350 MHz 38.4 dB/100m 41.1 dB 39.1 dB 2.7 dB 0.7 dB 19.9 dB 16.9 dB 19.8 dB 100 ± 32 100 ± 15
400 MHz 41.5 dB/100m 40.3 dB 38.3 dB 18.8 dB 15.8 dB 19.5 dB 100 ± 32 100 ± 15
450 MHz 44.3 dB/100m 39.5 dB 37.5 dB 17.7 dB 14.7 dB 19.2 dB 100 ± 32 100 ± 15
500 MHz 47.1 dB/100m 38.8 dB 36.8 dB 16.8 dB 13.8 dB 19.0 dB 100 ± 32 100 ± 15
550 MHz 49.7 dB/100m 38.2 dB 36.2 dB 16.0 dB 13.0 dB 18.8 dB 100 ± 32 100 ± 15
Voltage
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
Temperature
UL Rating. Operating Installation Storage
75°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.0 in 2.25 in

Max. Pull Tension

25 lbs

Bulk Cable Weight

22 lbs/1000ft

Standards and Compliance

Environmental Suitability

Riser, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Fire Resistance

UL 1666 Riser, FT4, FT4, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMR

ICEA Compliance

S-116-732-2013

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

2413

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 350 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.525 Revision Date: 03-16-2021
