74011PU

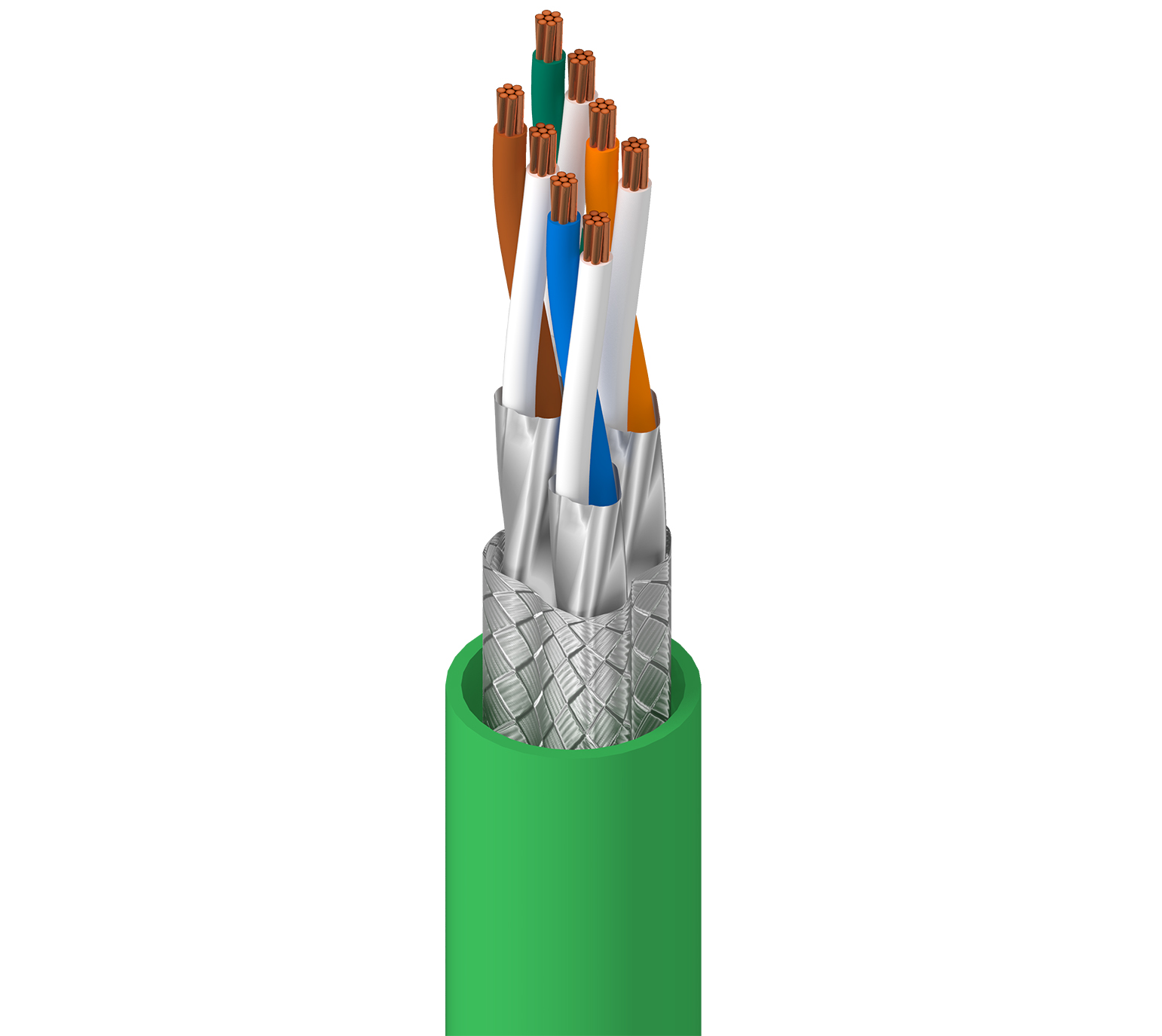

DataTuff® 6A, 4PR #23 Str BC, PO ins, S/FTP, PUR HF jkt, PROFINET Type B, AWM 21292

...
DataTuff® 6A, 4 Pair AWG 23 Bare Copper - Stranded, Polyethylene insulation, S/FTP - Overall Braid / Individual Foil shielding, PUR Halogen Free jacket , PROFINET Type B, AWM 21292
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Profinet CAT6A, TCP/IP Ethernet. Not rodent protected.

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material No. of Pairs
Individual shielded pair 23 Stranded BC - Bare Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation
Element Type Material Nominal Diameter
Individual shielded pair Dielectric PE - Polyethylene (Foam) 1.58 mm

Bonded-Pair

No

Color Chart
Number Color
Pair 1 White & Blue
Pair 2 White & Orange
Pair 3 White & Green
Pair 4 White & Brown
Inner Shield
Element Type Material Coverage [%]
Individual shielded pair Tape Bi-Laminate (Alum+Poly) 100%

Table Notes

Aluminum outside

Cabling
Description
4 pairs twisted to cable core
Outer Shield
Type Material Min. Coverage [%]
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
PUR - Polyurethane 8.7 mm 0.3 mm
Construction and Dimensions

Min Elongation at Breakof Conductors

10 %

Min Elongation at Breakof Insulation

100 %

Min Elongation at Breakof Jacket

300 %

Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max DCR Unbalanced Between Pairs [%] Max. DCR Unbalanced Within Pair [%]
71.9 Ohm/km 4 % 2 %
Capacitance
Max. Capacitance Unbalance Max. Mutual Capacitance
160 pF/100m 56 pF/m
Impedance
Nominal Characteristic Impedance
100 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss Nom. NEXT [dB] Nom. PSNEXT [dB] Nom. ACR [dB] Nom. PSACR [dB] Nom. ACRF (ELFEXT) [dB] Nom. PSACRF (PSELFEXT) [dB]
1 MHz 2.1 dB/100m 103 dB 100 dB 101 dB 98 dB 95 dB 92 dB
4 MHz 3.8 dB/100m 100 dB 97 dB 97 dB 94 dB 94 dB 91 dB
10 MHz 5.9 dB/100m 98 dB 95 dB 92 dB 89 dB 93 dB 92 dB
16 MHz 7.5 dB/100m 97 dB 94 dB 90 dB 87 dB 91 dB 88 dB
31.2 MHz 10.5 dB/100m 95 dB 92 dB 85 dB 82 dB 90 dB 87 dB
62.5 MHz 15 dB/100m 94 dB 91 dB 80 dB 77 dB 87 dB 84 dB
100 MHz 19.1 dB/100m 93 dB 90 dB 75 dB 72 dB 85 dB 82 dB
125 MHz 21.5 dB/100m 92 dB 89 dB 72 dB 69 dB 83 dB 80 dB
200 MHz 27.6 dB/100m 91 dB 88 dB 65 dB 64 dB 77 dB 74 dB
250 MHz 31.1 dB/100m 90 dB 87 dB 61 dB 58 dB 74 dB 71 dB
300 MHz 34.3 dB/100m 90 dB 87 dB 58 dB 55 dB 74 dB 71 dB
600 MHz 50.3 dB/100m 86 dB 86 dB 42 dB 39 dB 60 dB 57 dB
Delay
Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
25 ns/100m 78%
High Frequency
Frequency [MHz] Min. NEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. RL (Return Loss) [dB] Min. ELTCTL [dB]
1 MHz 75.3 dB 73.2 dB 70.2 dB 68 dB 20 dB 35 dB
4 MHz 66.3 dB 62.5 dB 59.5 dB 56 dB 23 dB 23 dB
10 MHz 60.3 dB 54.4 dB 51.4 dB 48 dB 25 dB 15 dB
16 MHz 57.2 dB 49.8 dB 46.8 dB 43.9 dB 25 dB 10.9 dB
31.2 MHz 52.9 dB 42.4 dB 39.4 dB 38.1 dB 23.6 dB 5.1 dB
62.5 MHz 48.4 dB 33.4 dB 30.4 dB 32.1 dB 21.5 dB
100 MHz 45.3 dB 26.6 dB 23.2 dB 28.0 dB 20.1 dB
125 MHz 43.8 dB 22.3 dB 19.3 dB 26.1 dB 19.4 dB
200 MHz 40.8 dB 13.2 dB 10.2 dB 22.0 dB 18 dB
250 MHz 39.3 dB 8.3 dB 5.3 dB 20.0 dB 17.3 dB
300 MHz 38.1 dB 3.9 dB 0.9 dB 18.5 dB 17.3 dB
600 MHz 34.8 dB 14.0 dB 17.3 dB

Table Notes

Limits below 4MHz are for information only

Coupling Attenuation Class

Type I

Segregation class according EN50174-2

d

Transfer Impedance Class

Grade 1

Current
Max. Recommended Current [A]
1.5 Amps per Conductor
Voltage
Voltage Rating [V]
30 V AC
Temperature Range

Storage Temp Range

-40°C To +80°C

Operating Temp Range

-40°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Min. Bend Radius During Installation

90 mm

Min Bend Radius During Operation

45 mm

Standards

ISO/IEC Compliance

ISO/IEC 11801-1

CPR Euroclass

Eca

CENELEC Compliance

EN 50173-1

Data Category

Category 6A

Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Fca

EU RoHS Compliance Date (yyyy-mm-dd)

2017-04-12

Suitability

Suitability - Burial

No

Suitability - Indoor

Yes

Suitability - Oil Resistance

Yes

Suitability - Outdoor

Yes - Black only

Suitability - Sunlight Resistance

Yes - Black only

Flammability, LS0H, Toxicity Testing

UL Flammability

Horizontal

IEC Flammability

IEC 60332-1-2

Other Flammability

UL Horizontal flame

IEC 60754-1 - Halogen Amount

Zero

History

Update and Revision

Revision Number: 0.149 Revision Date: 09-09-2021

Part Numbers
Item # Color Put-Up Type Length EAN
74011PU.00100 Green Reel 100 m 8719605130235
74011PU.00500 Green Reel 500 m 8719605128621
