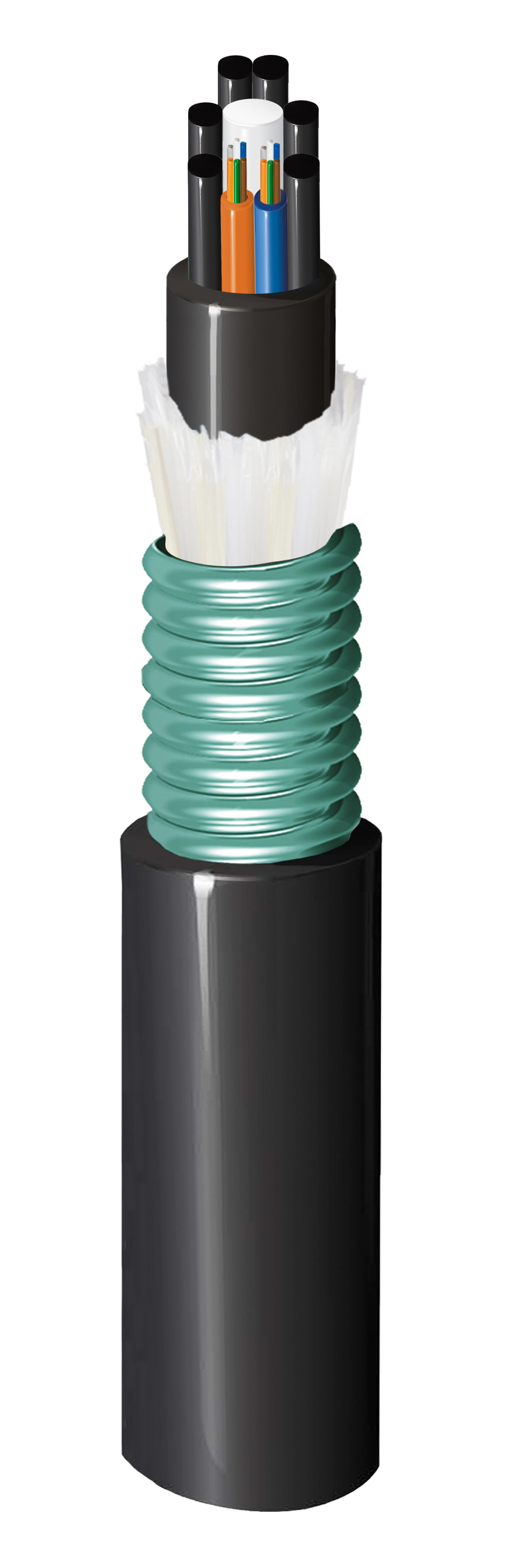

NKXU50MA012BKAA

Indoor & Outdoor Gel Filled Core Loose Tube Cable, OM2, 12 Fibers, CSTA

...
Indoor & Outdoor Gel Filled Core Loose Tube Cable, OM2 , 12 Fibers, Corrugated Steel Tape Armor, PE Black Inner Jacket, LSZH Black Outer Jacket
English
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Environmental Space

Indoor/Outdoor

Suitable Applications

For outdoor and indoor use in structured (data) wiring systems such as industrial backbone, campus backbone, building backbone (riser) and/or horizontal cabling. For outdoor and indoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. Suitable for Direct Burial.

Construction
Fiber Cable Construction
Fiber Type Fiber Count Subunit Color
OM2 12 Blue, Orange, Filler, Filler, Filler, Filler, Filler, Filler

Fiber Color Coding

TIA-598-D

Buffer Specification
Buffer Material
PBT – Polybutylene Terephthalate

Central Strength Member

GRP

Cable Core Waterblocking

Gel Filled

Bulk Cable Weight

330 kg/km
SubUnit Specifications

Fibers Per Subunit

6

Jacket Specifications

Number of Jackets

Double Jacket

Type of Armor

Corrugated Steel Tape

Inner Jacket

Color

Black

Nominal Wall Thickness@InnerJacket1

0.9 mm

Material

PE - Polyethylene

Outer Jacket Specifications
Outer Jacket
Material Color Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) Black 15.8 mm 2.0 mm
Optical Characteristics

Fiber Core Diameter

50 µm

Max. Attenuation at 1300 nm

1.0 dB/km

Max. Attenuation at 850 nm

3.0 dB/km
Mechanical Characteristics
Mechanical Tests
Description Tested Standard Requirement/Value
Cable Min. Bend Radius Installation (Short Term) IEC 60794-1-21-E11 25 x Cable OD
Cable Min. Bend Radius Operation (Long Term) IEC 60794-1-21-E11 12.5 x Cable OD
Cable Max. Tensile Strength Installation (Short Term) IEC 60794-1-21-E1 3000 N (674 lbf)
Cable Max. Tensile Strength Operation (Long Term) IEC 60794-1-21-E1 1000 N (225 lbf)
Cable Max. Crush Resistance Installation (Short Term) IEC 60794-1-21-E3 3000 N/100mm
Temperature Range

Operating Temperature Range

-40 °C to +70 °C

Storage Temperature Range

-40 °C to +70 °C

Standards

IEC Flammability

IEC 60332-1-2

TIA/EIA Compliance

EIA/TIA-455

ISO/IEC Compliance

IEC 60793, IEC 60794-1

RoHS

Yes

UV/ Sunlight Protection

Yes

History

Update and Revision

Revision Number: 0.22 Revision Date: 04-08-2022
