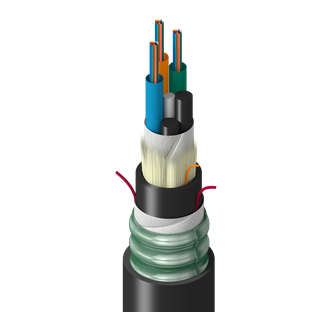

Fiber Multi-Loose Tube Cable
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof
Fiber Core Diameter
Fiber Color Coding
Number of Active Subunits
Number of Fillers
Fibers Per Subunit
0.110 in (2.8 mm)
Central Strength Member
Waterblocking Aramid Yarns
LSZH - Low Smoke Zero Halogen (Flame Retardant)
0.454 in (11.5 mm)
Number of Ripcords
Armor Type and Material
CST - Corrugated Steel Tape
0.630 in (16.0 mm)
Min. Bend Radius During Installation
20x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600 lbf)
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
176 lbs/kft (262 kg/km)
Installation Temp Range
-10°C to +60°C
Operating Temp Range
-40°C to +70°C
Storage Temp Range
Indoor/Outdoor, Sunlight Resistance, Burial
CA Prop 65
Flammability / Reaction to Fire
Other Standard Compliance(s)
NFPA 130, NFPA 502
Update and Revision
Revision Number: 0.28 Revision Date: 04-08-2022
