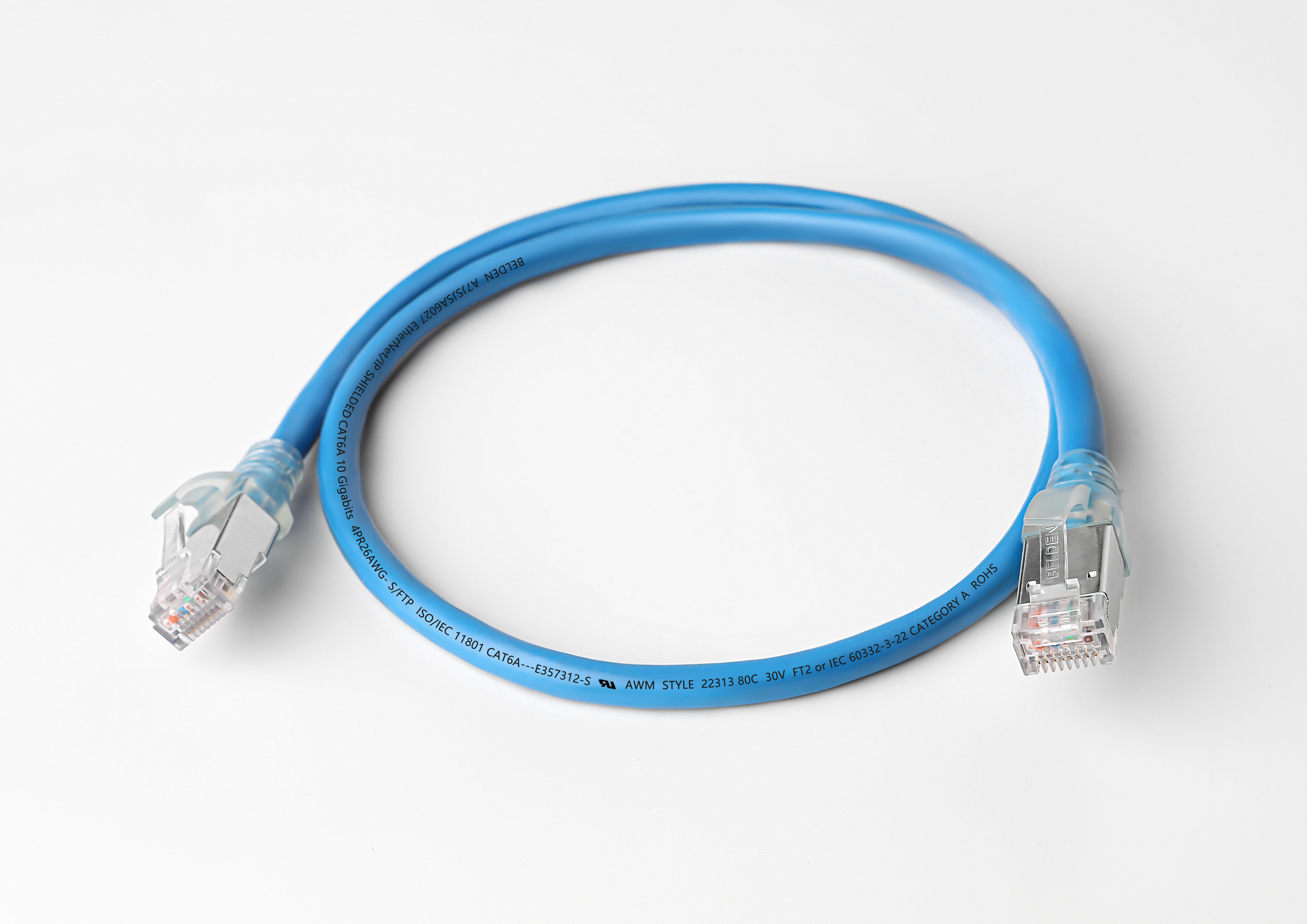

Ethernet/IP CAT6A 10 Gbps 10 Gigabit Ethernet double-ended cordset, Male straight transparent RJ45 to male straight transparent RJ45, shielded, PU cable, 8 wires
|
Product Family |
EtherNet / IP Double-ended Cordset |
|---|---|
|
Connector Type |
RJ45 Male |
|
Shielding |
Shielded |
|
Rated Voltage |
30 V |
|
Operating Voltage |
30 V |
|
Data Transmission |
10GBase-T, CAT6A |
|
Data Transmission Rate |
10Gbit/s |
|
Suitable Applications |
Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, PoE ++ IEEE 802.3 bt type 3 and type 4 is applicable for max. 10m patch cord applications |
|
Product Sub Family |
RJ45 |
|---|---|
|
Connector Design |
Straight |
|
Number of Pins |
8 |
|
Coding |
RJ45 |
|
Ambient Temperature (Operation)* |
- 25°C to + 70°C |
|
Protection Degree / IP Rating** |
IP20 |
|
Housing Material |
PC - Polycarbonate, UL94-V0 rated |
|
Attachment Plating |
Gold plating in contact area |
|
Shielding Material |
Copper Alloy |
|
Cable Type |
26AWG CAT6A S/FTP PVC/PU Patch CABLE |
|---|---|
|
Number of Wires |
8 wires |
|
Cable- resistances |
14.5 Ohm/100m |
|
ISO/IEC Compliance |
ISO/IEC 11801 |
|
UL AWM Style Compliance |
AWM 22313 |
|
Conductor material |
Stranded Bare Copper |
|
Cable Jacket Material |
Special Compound Polyurethane |
|
Cable Diameter D |
6.2 mm |
|
Wire Insulation Material |
Polyolefin |
|
Insulated Wire Diameter |
1.08 mm |
|
Foil shield |
Shielding: Each pair with individual foil + overall braid shield |
|
Ambient Temperature (Fixed Installation) |
‐20°C to +80°C |
|
Flammability Class (Cable Jacket) |
FT2, IEC 60332‐1, IEC 60332-3A |
|
Core Colors |
1: Blue& White, 2: Orange& White, 3: Green& White, 4: Brown& White |
|
Product Sub Family, Side 2 |
RJ45 |
|---|---|
|
Connector Design, Side 2 |
Straight |
|
Number of Pins, Side 2 |
8 |
|
Coding, Side 2 |
RJ45 |
|
Ambient Temperature (Operation), Side 2* |
- 25°C to + 70°C |
|
Protection Degree / IP Rating, Side 2** |
IP20 |
|
Housing Material, Side 2 |
PC - Polycarbonate, UL94-V0 rated |
|
Attachment Plating, Side 2 |
Gold plating in contact area |
|
Shielding Material, Side 2 |
Copper Alloy |
|
RoHS Compliant |
Yes |
|---|
|
Oil Resistance |
Yes |
|---|
|
Protection Degree / IP Rating Note |
only if mounted and locked in combination with Hirschmann / Lumberg Automation connector |
|---|
|
Update and Revision |
Revision Number: 0.19 Revision Date: 07-14-2023 |
|---|
