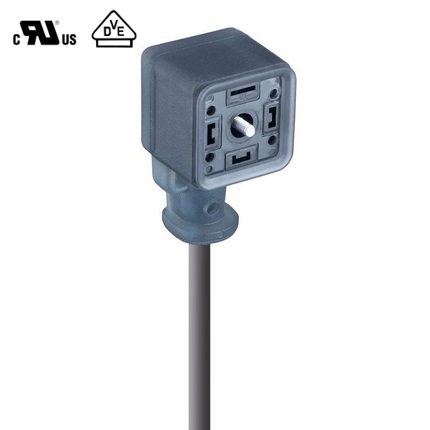

GAN DIN Standard Single-Ended Cordset: Form A, 4-pin (3+1PE; PE across cable outlet), grey translucent body, with varistor and yellow LED, 230 V AC/DC, 10 A; PUR grey cable, 0.75 mm²
| Pin 1 | Pin 2 | Pin 3 | PE |
|---|---|---|---|
| brown | blue | black | green-yellow |
|
Product Family |
Valve Connectors |
|---|---|
|
Product Sub Family |
GAN |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
3+PE (PE across cable outlet) |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Central Screw |
|
Rated Impulse Voltage |
4.0 kV (PCBA 2.0 kV) |
|
Operating Voltage |
230 V AC/DC |
|
Rated Current* |
10 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 50 |
|
Ambient Temperature (Operation)* |
-25 °C - +85 °C (With additional 934-887-001 gasket : -40 °C - +105 °C) |
|
Protection Degree / IP Rating** |
IP65, IP67 (IP69K: without additional gasket; max. +80 °C) |
|
Design Standard |
DIN EN 175301-803-A, ISO 4400 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Sn |
|
Contact Bearer Material |
PA GF |
|
Contact Bearer Color |
black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Molded Body Material |
TPE |
|
Molded Body Color |
Grey translucent |
|
Flammability Class (Molded Body) |
UL 94 HB |
|
Attachment Material |
Steel, Philips combi slot |
|
Gasket Material |
Molded Integrated Gasket |
|
Protection Circuitry |
Varistor with yellow LED |
|---|---|
|
Function Indicator |
Yellow LED |
|
Protective Circuit |
Varistor |
|
Fastening Torque (Attachment) |
(50-60) Ncm |
|
Cable Number |
604 |
|---|---|
|
Conductor Size |
0.75 mm² |
|
Number of Wires |
4 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 4 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 7.5 x D |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
grey RAL 7001 |
|
Cable Diameter D |
ø 6.50 ± 0.20 mm |
|
Wire Insulation Material |
PP |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 90 °C (UL: + 80 °C) |
|
Ambient Temperature (Flex Installation) |
- 20 °C - + 90 °C (UL: + 80 °C) |
|
UL Cable Type |
AWM: 21198 |
|
Flammability Class (Cable Jacket) |
IEC 60332-1, DIN VDE 0472 Teil 804 test method B, UL/CSA FT2 |
|
Cable Characteristics |
Exclusion of dangerous materials acc. : 2000/53/EG, 2011/65/EU, 2003/11/EG, 1907/2006/EG, Restistant against acids, alkalis and solvents, UV-and ozone resistant |
|
VDE |
yes |
|---|
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
yes |
|---|---|
|
Oil Resistance |
VDE 0250 and 0472 |
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 6447 | GAN31LU-V2Y-6040200-1UC | 2 m |
