GSE 2000 N4

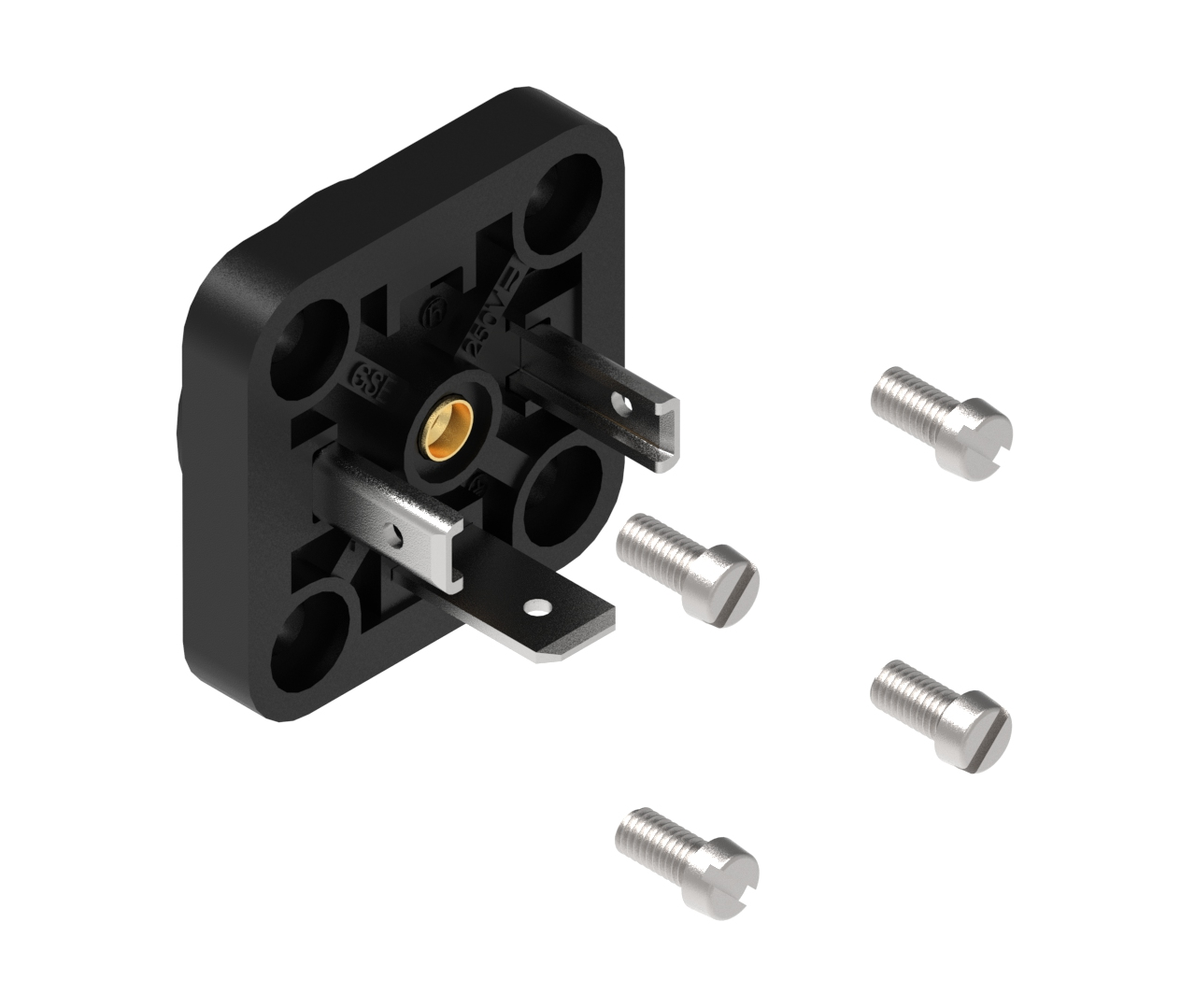

GSE DIN standard receptacle with round collar, solder contacts and without oblong holes: Form A, 3-pin (2+1PE), solder type; 400 V AC/DC, 16 A

...
GSE DIN standard receptacle with round collar, solder contacts and without oblong holes: Form A, 3-pin (2+1PE), solder type; 400 V AC/DC, 16 A
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error

Product Family

Valve Connectors

Product Sub Family

GSE

Connector Type

Receptacle

Connector Sub Type

Rectangular receptacle with round collar, solder contacts and without oblong holes

Type of Contact / Gender

Male

Connector Design

Straight

Number of Pins

2+PE

Coding

A

Shielding

Unshielded

Attachment Type

Central Screw

Rated Impulse Voltage

4.0 kV

Operating Voltage

400 V AC/DC

Rated Current*

16 A

Contact Resistance

≤ 10 mOhm

Insulation Resistance

˃ 10^9 Ohm

Mating Cycles

≤ 50

Type of Connection

Solder

Conductor Cross Section

0.08 - 1.5 mm²

Ambient Temperature (Operation)*

-40 °C - +125 °C

Protection Degree / IP Rating**

IP65

Design Standard

DIN EN 175301-803-A, ISO 4400

Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Clearance / Creepage Distance

DIN EN 60664-1 (2008/01); VDE 0110-1

Overvoltage Category

III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material

CuZn

Contact Plating

Cu/Sn

Contact Bearer Material

PA GF

Contact Bearer Color

black

Flammability Class (Contact Bearer)

UL 94 HB

Housing Color

black

Circuitry

Fastening torque (mounting screw)

(50-60) Ncm

Mounting

M3 (4x)

Approvals

VDE

yes

SEV

yes

Safety & Environmental Compliance

RoHS Compliant

yes

Notes

Note Derating

Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note

Do not connect or disconnect under load.

Show All Specifications
Hide Specifications
Part Numbers
Item # Item Description
932886100 GSE 2000 N4
