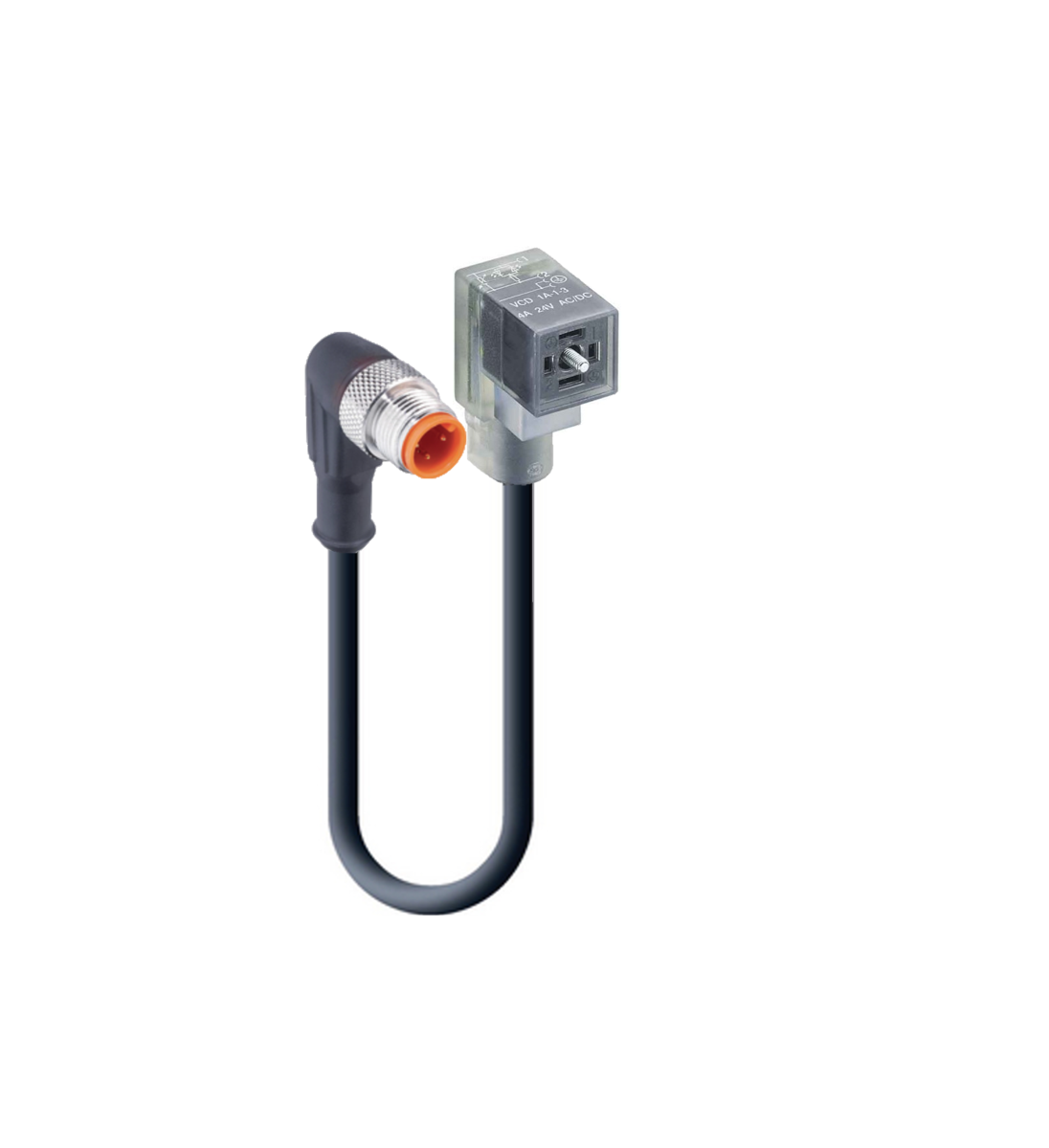

DIN EN 175301-803-C, Cordset, double ended: M12, Male, Angled, 3-Pole, to a, Form C, Female, Angled, 2+2PE, Yellow LED with Varistor: Cable, PUR, black, 3x0.50 mm²
|
Product Family |
Valve Connectors |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Unshielded |
|
Rated Voltage |
24 V |
|
Operating Voltage |
24 V AC/DC |
|
Rated Current* |
4 A |
|
Product Sub Family |
M12 |
|---|---|
|
Type of Contact / Gender |
Male |
|
Connector Design |
Angled |
|
Attachment Type |
Coupling Screw |
|
Number of Pins |
3 |
|
Coding |
A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 90 °C |
|
Protection Degree / IP Rating** |
IP65 |
|
Design Standard |
IEC 61076-2-101 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
TPU |
|
Contact Bearer Color |
Orange |
|
Molded Body Material |
TPU |
|
Molded Body Color |
Grey Translucent |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Ni-Plated |
|
Function Indicator |
Yellow LED |
|
Protective Circuit |
Varistor |
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
|
Cable Number |
226 |
|---|---|
|
Conductor Size |
0.5 mm² |
|
Number of Wires |
3 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Cycles (Bending) |
˃ 5 M |
|
Cycles (Torsion) |
˃ 5 M @ ± 360 °/1 m |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 4.6 ± 0.2 mm |
|
Wire Insulation Material |
PP |
|
Insulated Wire Diameter |
ø 1.50 mm |
|
Ambient Temperature (Fixed Installation) |
- 50 °C - + 105 °C (UL: + 80 °C) |
|
Ambient Temperature (Flex Installation) |
- 25 °C - + 105 °C (UL: + 80 °C) |
|
UL Cable Type |
AWM: 20549 |
|
Flammability Class (Cable Jacket) |
DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2 |
|
Cable Characteristics |
Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances |
|
Product Sub Family, Side 2 |
VCD |
|---|---|
|
Type of Contact / Gender, Side 2 |
Female |
|
Connector Design, Side 2 |
Angled |
|
Attachment Type, Side 2 |
Central Screw |
|
Number of Pins, Side 2 |
2+2PE |
|
Coding, Side 2 |
C |
|
Contact Resistance, Side 2 |
≤ 5 mOhm |
|
Insulation Resistance, Side 2 |
˃ 10^9 Ohm |
|
Mating Cycles, Side 2 |
|
|
Ambient Temperature (Operation), Side 2* |
-25°C to +80°C |
|
Protection Degree / IP Rating, Side 2** |
IP65 |
|
Design Standard, Side 2 |
DIN EN 175301-803-C |
|
Pollution Degree, Side 2 |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category, Side 2 |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material, Side 2 |
CuZn |
|
Contact Plating, Side 2 |
Cu/Ni,Sn |
|
Contact Bearer Material, Side 2 |
PBT |
|
Contact Bearer Color, Side 2 |
Black |
|
Molded Body Material, Side 2 |
TPU |
|
Molded Body Color, Side 2 |
Transluscent |
|
Attachment Material, Side 2 |
Steel, Philips combi slot |
|
O-Ring Material, Side 2 |
Molded Integrated Gasket |
|
Fastening Torque (Attachment), Side 2 |
(50-60) Ncm |
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
no |
|---|---|
|
Oil Resistance |
Good chemical and oil resistance |
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
Notice derating |
