1281S6C

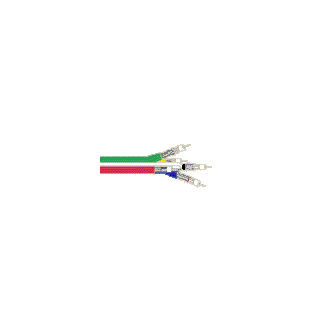

Banana Peel® Mini Hi-Res Component Video

...
Banana Peel® 6 Sub-Mini RG-59 coax, 25 AWG solid .018” tinned copper conductor, foam HDPE insulation, Duobond® aluminum foil tape plus a tinned copper interlocked serve shield (95% coverage) with PVC jacket. Cat5e 4 bonded pairs, 24 AWG solid bare copper conductors, polypropylene insulation, PVC jacket with rip cord, overall cable CMR rated.
English
Request Quote
Share
Get Product Alerts
Specifications
Report An Error
Product Overview

Suitable Applications

RGB, VGA, SVGA, XGA, SXGA, UXGA, HDTV, Digital Signage, Component Video, Video Mult, Animation, Special effects

Twisted Pair Conductor
No. of Pairs Stranding Material AWG
4 Solid BC - Bare Copper 24
Twisted Pair Insulation
Material Nominal Diameter
PP - Polypropylene 0.038 in

Insulation Material_CP_TP

Polyolefin (PO, PE, PP)

Bonded-Pair_CP_TP

Yes

Twisted Pair Outer Jacket
Outer Jacket Material Outer Jacket Nominal Diameter Outer Jacket Ripcord
PVC - Polyvinyl Chloride 0.204 in Yes
Twisted Pair Color Chart
Description Color
1 Blue & White/Blue
2 Orange & White/Orange
3 Green & White/Green
4 Brown & White/Brown
Twisted Pair Capacitance
Nom Mutual Capacitance
15 pF/ft
Twisted Pair Delay
Max Delay Max Delay Skew Nom Vel of Prop (VP)
510 ns/100m 25 ns/100m 70 %
Twisted Pair Maximum Conductor DC Resistance
Max Conductor DCR
90 Ohm/km
Twisted Pair Voltage
UL Voltage Rating
300 V RMS
Twisted Pair Maximum DCR Unbalanced
Max DCR Unbalance
3 %
Twisted Pair Premise Cable
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. PSACR [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. TCL [dB]
1 MHz 2 dB/100m 69.3 dB 69.3 dB 17.3 dB 20 dB 100 +/- 12 Ohm 65.8 dB 65.8 dB 37 dB
4 MHz 4 dB/100m 60.3 dB 60.3 dB 17.3 dB 23 dB 100 +/- 12 Ohm 53.8 dB 53.8 dB 37 dB
8 MHz 5.7 dB/100m 55.8 dB 55.8 dB 17.3 dB 24.5 dB 100 +/- 12 Ohm 47.7 dB 47.7 dB 37 dB
10 MHz 6.4 dB/100m 54.3 dB 54.3 dB 17.3 dB 25 dB 100 +/- 12 Ohm 45.8 dB 45.8 dB 37 dB
16 MHz 8.1 dB/100m 51.2 dB 51.2 dB 17.3 dB 25 dB 100 +/- 12 Ohm 41.7 dB 41.7 dB 35 dB
20 MHz 9.1 dB/100m 49.8 dB 49.8 dB 17.3 dB 25 dB 100 +/- 12 Ohm 39.8 dB 39.8 dB 34 dB
25 MHz 10.2 dB/100m 48.3 dB 48.3 dB 17.3 dB 25 dB 100 +/- 15 Ohm 37.8 dB 37.8 dB 33 dB
31.25 MHz 11.4 dB/100m 46.9 dB 46.9 dB 17.3 dB 25 dB 100 +/- 15 Ohm 35.9 dB 35.9 dB 32.1 dB
62.5 MHz 16.4 dB/100m 42.4 dB 42.4 dB 17.3 dB 25 dB 100 +/- 15 Ohm 29.9 dB 29.9 dB 29 dB
100 MHz 21 dB/100m 39.3 dB 39.3 dB 17.3 dB 25 dB 100 +/- 15 Ohm 25.8 dB 25.8 dB 27 dB
150 MHz 26 dB/100m 36.7 dB 36.7 dB 3.3 dB 25 dB 100 +/- 18 Ohm 22.3 dB 22.3 dB 25.2 dB
155 MHz 26.5 dB/100m 36.4 dB 36.4 dB 3.3 dB 19 dB 100 +/- 18 Ohm 22 dB 22 dB 25.1 dB
200 MHz 30.4 dB/100m 34.8 dB 34.8 dB 3.3 dB 19 dB 100 +/- 18 Ohm 19.8 dB 19.8 dB 24 dB
250 MHz 34.4 dB/100m 29.3 dB 32.3 dB 18 dB 100 +/- 20 Ohm 17.8 dB 17.8 dB 23 dB
300 MHz 38 dB/100m 28.1 dB 28.1 dB 18 dB 100 +/- 20 Ohm 14.3 dB 14.3 dB
310 MHz 38.7 dB/100m 27.9 dB 27.9 dB 18 dB 100 +/- 20 Ohm 14 dB 14 dB
350 MHz 41.4 dB/100m 27.1 dB 27.1 dB 17 dB 100 +/- 22 Ohm 12.9 dB 12.9 dB
100 +/- 22 Ohm
100 +/- 22 Ohm

Min Bend Radius/Minor Axis_CP_TP

1 in
Coax Conductor
AWG Stranding Material Nominal Diameter No. of Coax Insulation Material Insulation Nominal Diameter
25 Solid TC - Tinned Copper 0.019 in 6 FPE - Foamed Polyethylene 0.074 in
Coax Insulation
Insulation Material Insulation Nominal Diameter
FPE - Foamed Polyethylene 0.074 in
Coax Outer Shield
Element Outer Shield Type Outer Shield Material Outer Shield Coverage
1 Tape (Bonded to Dielectric) Al/poly/Al 100 %
2 Interlocking Serve TC - Tinned Copper 95 %
Coax Outer Jacket
Outer Jacket Material Nominal Diameter
PVC - Polyvinyl Chloride 0.112 in

Min Bend Radius/Minor Axis_CP_CX

1.1 in

RG Type

Sub-miniature 59

NomCharacteristicImpedance@Impedance1_CX

75 Ohm

Nom Inductance@Inductance1_CP_CX

0.087 µH/ft

Nom Cap Cond-Shield@Capacitance1_CP_CX

17.0 pF/ft

Nom Vel of Prop (VP)@Delay01_CP_CX

80 %

Nom Delay@Delay01_CP_CX

1.27 ns/ft

Nom Cond DCR@Cond DCR1_CP_CX

34 Ohm/1000ft

Outer Conductor DCR@Cond DCR1_CP_CX

5.4 Ohm/1000ft

UL Voltage Rating@Voltage1_CP_CX

300 V RMS

Other Electrical Characteristic 1_CP_CX

Return Loss: Fixed bridge and termination

Coax High Frequency (Nominal Typical)
Frequency Nominal Insertion Loss (Attenuation)
1 MHz 0.52 dB/100ft
5 MHz 1.17 dB/100ft
50 MHz 3.7 dB/100ft
100 MHz 4.9 dB/100ft
200 MHz 6.7 dB/100ft
400 MHz 9.5 dB/100ft
750 MHz 13.4 dB/100ft
900 MHz 15.0 dB/100ft
1000 MHz 15.8 dB/100ft
3000 MHz 31.2 dB/100ft
Coax Return Loss
Frequency [MHz] Min Return Loss (RL)
5 MHz - 850 MHz 20 dB

Max Operating Frequency

3000 MHz

Overall Cable

Conductor Material:

Bare Copper

Operating Temperature Range

-40°C to + 75°C

UL Temp Rating

75°C

Min Bend Radius/Minor Axis_CP_OV

4.25 in
Applicable Standards & Environmental Programs

NEC/(UL) Compliance

CMR

CEC/C(UL) Compliance

CMG

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2003/11/EC (BFR)

Yes

CA Prop 65 (CJ for Wire and Cable)

Yes

China RoHS II (GB/T 26572-2011)

Yes

Suitability

Suitability - Aerial

No

Suitability - Burial

No

Suitability - Hazardous Locations

No

Suitability - Indoor

Yes

Below Grade Burial

No

Flame Test

UL Flammability

UL1666 Vertical Shaft

CSA Flammability

FT4

Plenum/Non-Plenum

Plenum (Y/N)

No

Plenum Number

1282S6, 1280P

Overall Armor Shield

Update and Revision

Revision Number: 0.41 Revision Date: 04-08-2022
