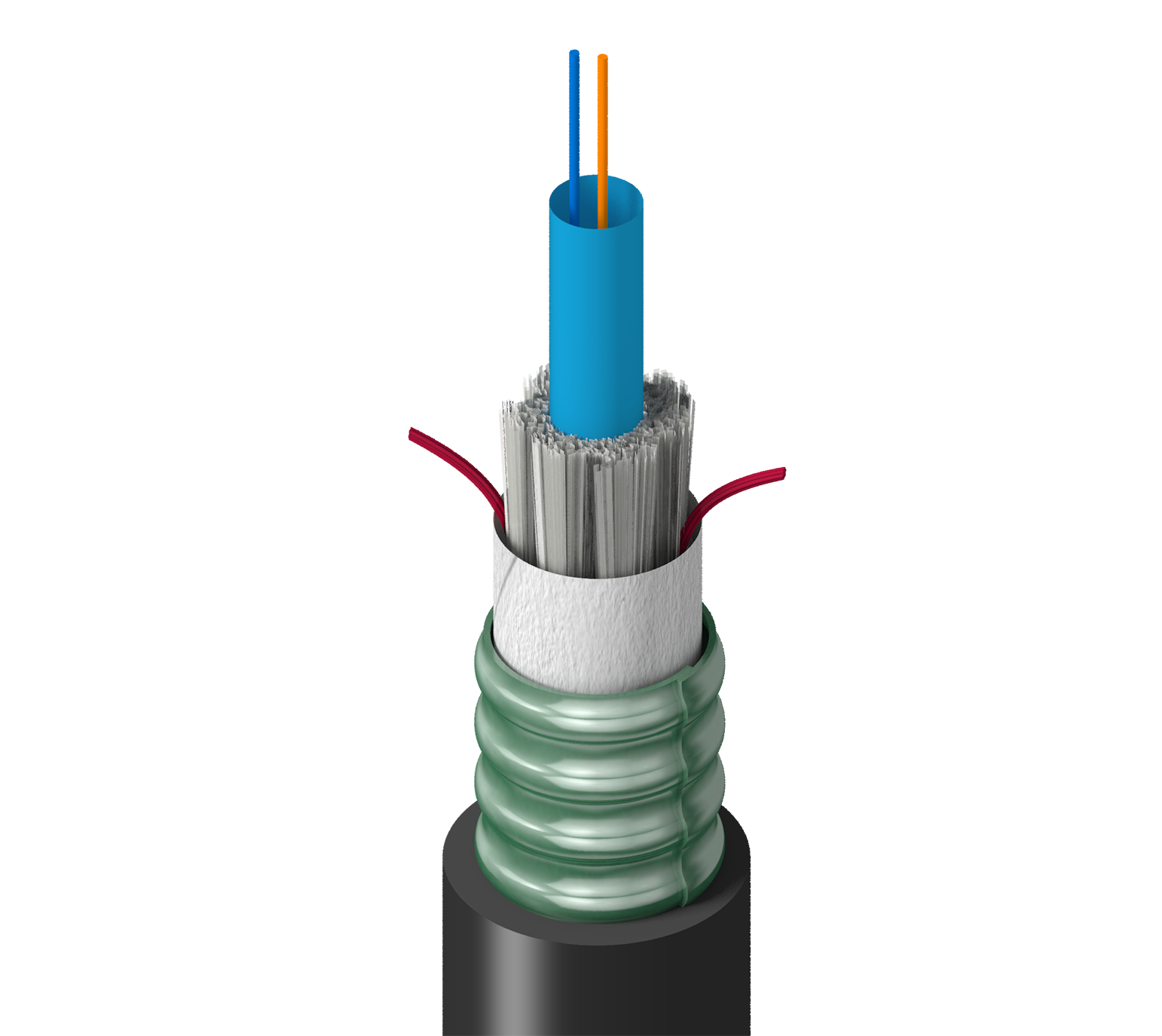

Steel Armored Central Loose Tube
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Outdoor & Wet Locations, Direct Burial, Rodent Proof
Fiber Core Diameter
Fiber Color Coding
Number of Active Subunits
Number of Fillers
Fibers Per Subunit
0.150 in (3.8 mm)
Subunit Strength Members
Armor Type and Material
CST - Corrugated Steel Tape
PE - Polyethylene
0.410 in (10.4 mm)
Number of Ripcords
Min. Bend Radius During Installation
20x Cable OD
Min. Bend Radius During Operation
10x Cable OD
Max. Tensile Strength During Installation
2670 N (600 lbf)
Max. Tensile Strength During Operation
800 N (180 lbf)
Bulk Cable Weight
69 lbs/kft (103 kg/km)
Installation Temp Range
-30C to +60C
Operating Temp Range
-40C to +70C
Storage Temp Range
CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available
Update and Revision
Revision Number: 0.83 Revision Date: 12-15-2021
