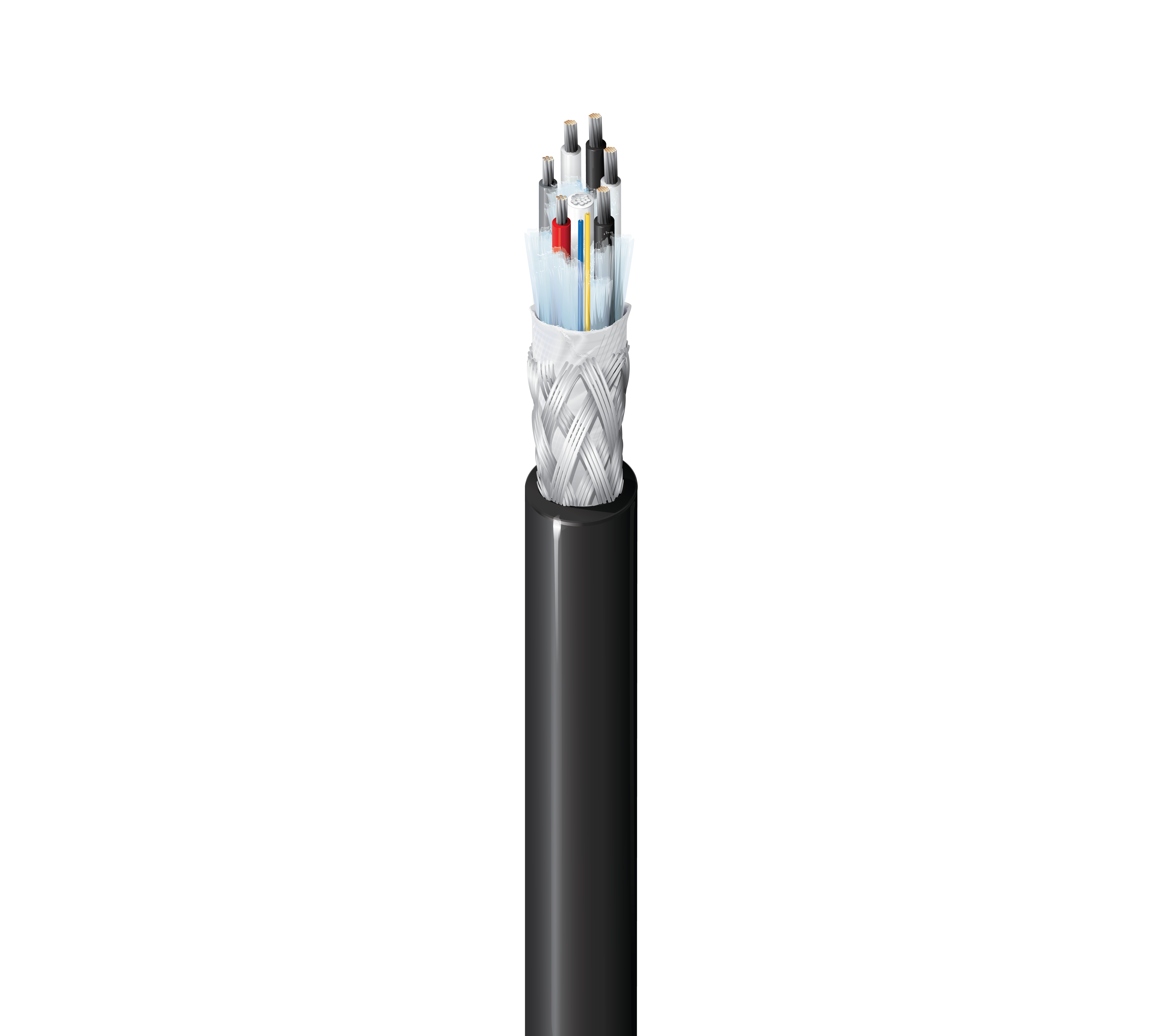

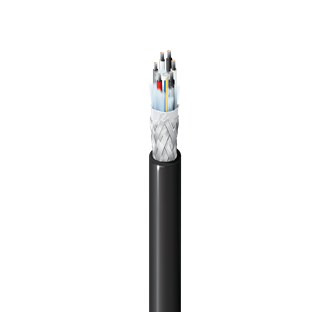

7804PX

SMPTE 311M Cable, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG, PVDF Jacket, I/O CMP

...
Industry Standard SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PVC Insulation, TC Braid Shield (95% coverage), PVDF Jacket, Indoor/Outdoor CMP
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Indoor/Outdoor, Broadcast, Studios, SMPTE 311

Multiconductor
Multiconductor Conductor and Insulation
Element No. of Conductors AWG Stranding Material Nominal Conductor DCR Insulation Material Insulation Nominal Diameter
24 AWG 2 24 7x32 TC - Tinned Copper 23.3 Ohm/1000ft FEP - Fluorinated Ethylene Propylene 0.038 in
20 AWG 4 20 19x32 TC - Tinned Copper 8.8 Ohm/1000ft FEP - Fluorinated Ethylene Propylene 0.054 in
Multiconductor Color Chart
Description Color
24 AWG Red
24 AWG Gray
20 AWG White
20 AWG White
20 AWG Black
20 AWG Black

Shielding

Braid(s)

Nom Outer Shield DCR@Cond DCR1_CP_MC

3.5 Ohm/1000ft
Multiconductor UL Voltage
UL Description UL Voltage Rating
24 AWG 300 V RMS
20 AWG 300 V RMS
Fiber
Fiber Cable Construction
Fiber Type Fiber Count
OS2, G.657.A2 2

Fiber Color Coding

Yellow, Blue

Buffer Specification
Buffer Diameter
900 µm

Mode Field Diameter

9.2 µm

Wavelength@Optical SM1

1310nm, 1550 nm

Max. Attenuation at 1310 nm

0.50 dB/km

Max. Attenuation at 1550 nm

0.50 dB/km
Overall Cable

Conductor Material:

Tinned Copper

Outer Jacket
Nominal Diameter
0.249 in
Overall Shielding
Layer 1 Type Material Coverage
Overall Braid TC - Tinned Copper 80 %

Jacket

PVDF

Nominal Diameter@OuterJacket1 1_CP_OV

0.259 in

Operating Temperature Range

-20°C to 75°C

Installation Temperature Range

0°C to 75°C

Storage Temperature Range

-20°C to 75°C

Max. Pull Tension

1350 N

Bulk Cable Weight

59 lbs/1000ft
Applicable Standards & Environmental Programs

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2003/11/EC (BFR)

Yes

Suitability

Suitability - Aerial

Yes - When supported by messenger wire

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flame Test

UL Flammability

UL910 Steiner Tunnel

CSA/C(UL) Flammability

FT6
History

Update and Revision

Revision Number: 0.15 Revision Date: 02-27-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length
7804PX 0101000 Black 1,000 ft
7804PX 0104000 Black 4,000 ft
