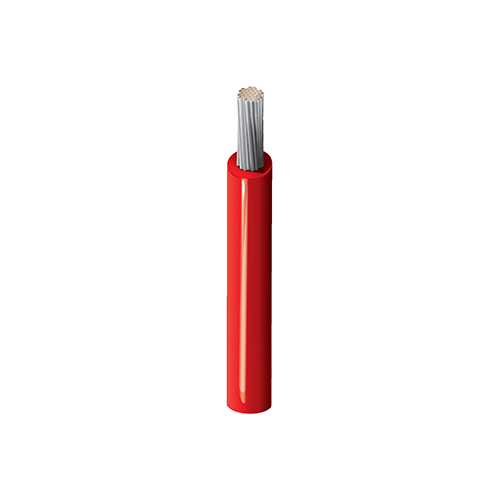

Lead Wire, #8 Str TC, PVC Ins, AWM 1028 AWM 1015 AWM 1231

Low Temp Plastic Lead Wire, 8AWG (133x29) Tinned Copper, PVC Insulation, AWM 1028 AWM 1015 AWM 1231 CSA TYPE TEW 600V 105C

Request Quote

Request Sample Get Product Alerts

Specifications

Report An Error

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	1	8	133x29	TC - Tinned Copper

Material	Nom. Thickness	Nom. Insulation Diameter
PVC - Polyvinyl Chloride	0.048 in (1.2 mm)	0.262 in (6.65 mm)

Overall Cable Diameter (Nominal)	0.262 in (6.65 mm)

UL Voltage Rating
600 V RMS

UL Temperature
105°C

Stationary Min.	Installation Min.
1.05 in (26.7 mm)	1.05 in (26.7 mm)

Max. Pull Tension	213 lbs (96.6 kg)
Bulk Cable Weight	74 lbs/1000ft

Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
NEC / UL Compliance	Article 310, MTW or TW
AWM Compliance	AWM 1015, AWM 1028, AWM 1231, CSA AWM I A/B
CEC / C(UL) Compliance	TEW
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision	Revision Number: 0.448 Revision Date: 01-20-2023

Part Numbers

Item #	Color	Putup Type	Length	UPC	Footnote
8908 010250	Black	Reel	250 ft	612825217992	C
8908 0101500	Black	Reel	1,500 m	612825217985
8908 013250	Blue, Dark	Reel	250 ft	612825218005
8908 001250	Brown	Reel	250 ft	612825217831
8908 0081500	Gray	Reel	1,500 m	612825217930
8908 005250	Green, Dark	Reel	250 ft	612825217916	C
8908 002250	Red	Reel	250 ft	612825217886
8908 0071500	Violet	Reel	1,500 m	612825217923
8908 004250	Yellow	Reel	250 ft	612825217909
8908 0041500	Yellow	Reel	1,500 m	612825217893
