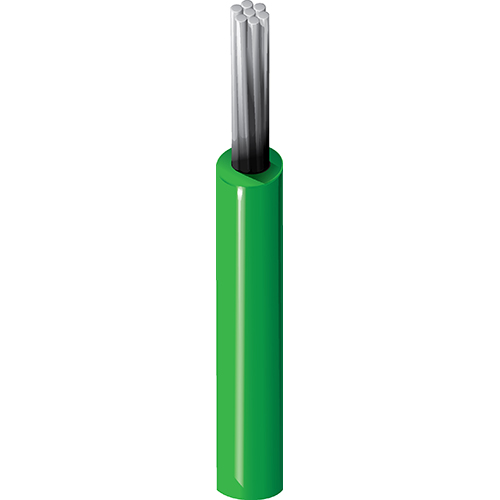

Lead Wire, #20 Str TC, PVC Ins, AWM 1007 AWM 1569

...
Low Temp Plastic Lead Wire, 20AWG (10x30) Tinned Copper, PVC Insulation, AWM 1007 AWM 1569 CSA TYPE TR-64 TRSR-64
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
20 10x30 TC - Tinned Copper 1

Conductor Count

1

Insulation
Material Nominal Diameter Nominal Wall Thickness Min. Average Wall Thickness
PVC - Polyvinyl Chloride 0.067 in 0.016 in 0.015 in
Color Chart 2
Number
6
Electrical Characteristics
High Frequency (Nominal/Typical)
Nom. Insertion Loss
6.1 dB/100m
6.1 dB/100m
6.1 dB/100m
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Non-UL Temp Rating

105°C

UL Temp Rating

105°C

Mechanical Characteristics

Bulk Cable Weight

4.9 lbs/1000ft

Min. Bend Radius/Minor Axis

0.28 in
Dimensions
Length
6.1
Standards

UL Rating

300V RMS, 80°C and 300V, 105°C

UL AWM Style Compliance

AWM 1007, AWM 1569

CSA Rating

300V RMS, 105°C

CSA Type

TRSR-64

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

VW-1

CSA Flammability

FT1

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
History

Update and Revision

Revision Number: 0.378 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
9920 0101000 Black Reel 1,000 ft 612825262862
9920 0131000 Blue, Dark Reel 1,000 ft 612825262886
9920 0135000 Blue, Dark Reel 5,000 ft 612825262893
9920 0061000 Blue, Light Reel 1,000 ft 612825262831
9920 0081000 Gray Reel 1,000 ft 612825262848
9920 0021000 Red Reel 1,000 ft 612825262817
9920 0091000 White Reel 1,000 ft 612825262855
9920 0041000 Yellow Reel 1,000 ft 612825262824
Show All Parts Number
Show Less
