9985

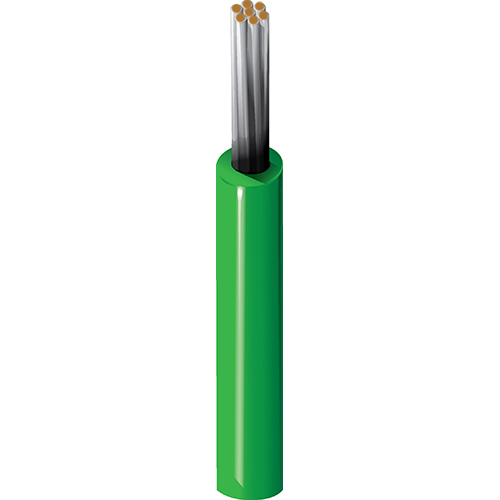

Lead Wire, #26 Str TC, PVC Ins, AWM 1061

...
Low Temp Plastic Lead Wire, 26AWG (7x34) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

inter-connection circuits, internal wiring of computer and electronic equipments

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 26 AWG 7x34 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC - Polyvinyl Chloride 0.01 in (0.25 mm) 0.039 in (0.99 mm)

Overall Cable Diameter (Nominal)

0.039 in (0.99 mm)

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
45.8 Ohm/1000ft Single conductor in free air @ 30ºC: 5 A
Voltage
UL Voltage Rating
300 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -25°C To +105°C
Bend Radius
Stationary Min. Installation Min.
0.39 in (9.9 mm) 0.39 in (9.9 mm)

Max. Pull Tension

4 lbs (1.8 kg)

Bulk Cable Weight

1 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1

AWM Compliance

AWM 1061, AWM I A/B

CEC / C(UL) Compliance

LL7874

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.479 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
9985 010100 Black Reel 100 ft 612825267294
9985 0101000 Black Reel 1,000 ft 612825267300 P
9985 013100 Blue, Dark Reel 100 ft 612825267324
9985 0131000 Blue, Dark Reel 1,000 ft 612825267331 P
9985 001100 Brown Reel 100 ft 612825267089
9985 0011000 Brown Reel 1,000 ft 612825267096 P
9985 008100 Gray Reel 100 ft 612825267249
9985 0081000 Gray Reel 1,000 ft 612825267256 P
9985 005100 Green, Dark Reel 100 ft 612825267218
9985 0051000 Green, Dark Reel 1,000 ft 612825267225 P
9985 003100 Orange Reel 100 ft 612825267157
9985 0031000 Orange Reel 1,000 ft 612825267164 P
9985 002100 Red Reel 100 ft 612825267126
9985 0021000 Red Reel 1,000 ft 612825267133 P
9985 009100 White Reel 100 ft 612825267270
9985 0091000 White Reel 1,000 ft 612825349945 P
9985 004100 Yellow Reel 100 ft 612825267188
9985 0041000 Yellow Reel 1,000 ft 612825267195 P
