Product Number: SPE102

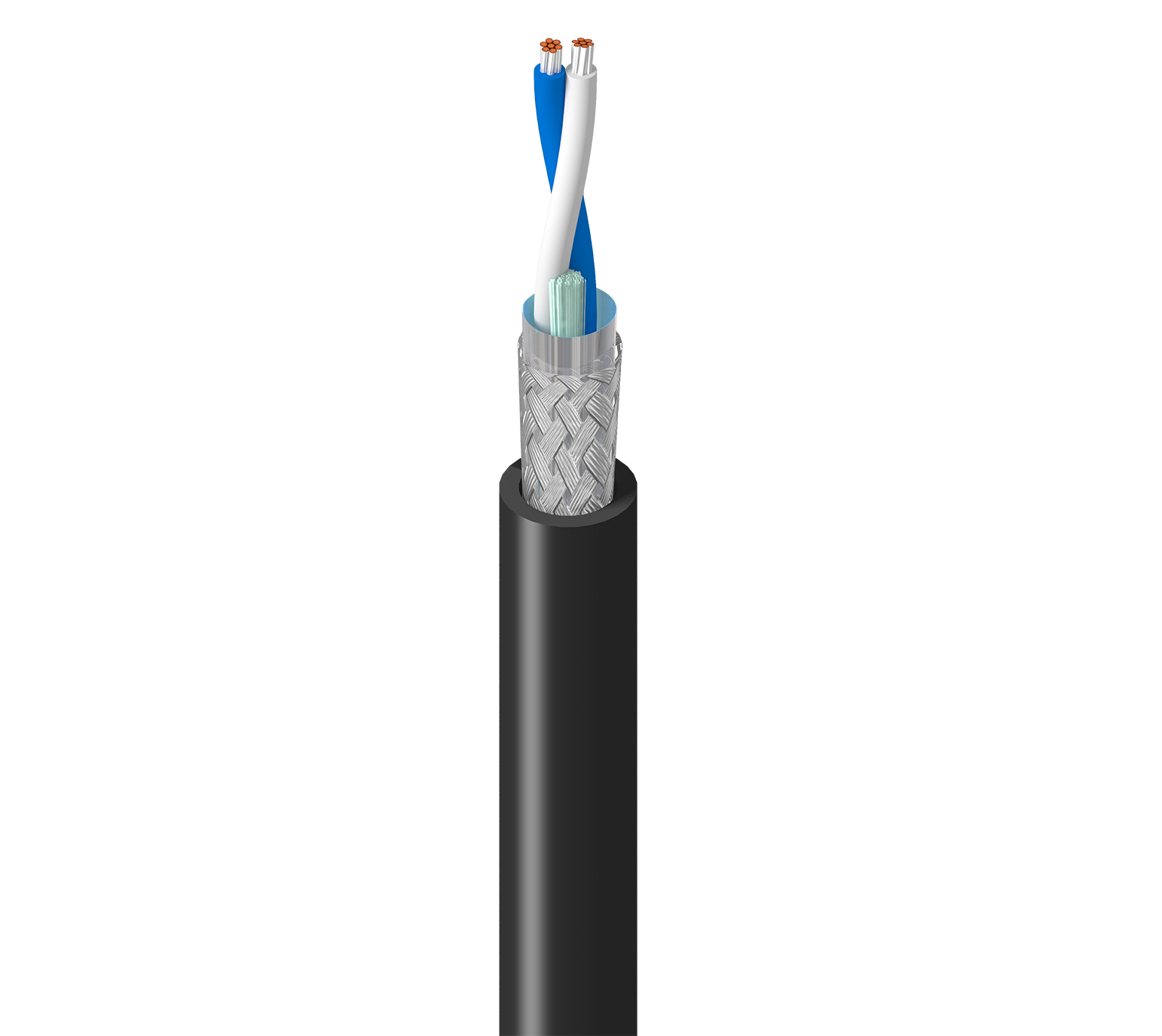

Datatuff Ind SPE 10Mbps 22AWG SF/UTP PVC

Datatuff Ind SPE 10Mbps 22AWG PE SF/UTP PVC

  • Availability:
    Americas
  • Global inventory:
    Available
SPE102
  • SPE102
1 of 1

Specifications

Report An Error

Suitable Applications

data communications, cameras, PLCs, switches, outdoor, indoor etc.

Conductor

Size Stranding Material No. of Pairs
22 AWG Stranded TC - Tinned Copper 1

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 0.067 in (1.7 mm) White & Blue

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 90%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.245 in (6.22 mm)

Overall Cable Diameter (Nominal)

.245 in (6.22 mm)

Electricals

Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance
59 Ohm/km 56 pF/m (17 pF/ft) 330 pF/100m

Delay

Frequency Max. Delay Nom. Velocity of Prop.
100 MHz 450 ns/100m 76%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB] Min. PSANEXT [dB] Min. Coupling Attenuation [dB] Nom. Characteristic Impedance [Ohm]
0.1 1.4 dB/100m 11.5 67 50 100
0.5 1.6 dB/100m 15 64.7 50 100
0.772 1.9 dB/100m 15 61.5 50 100
1 2.1 dB/100m 15 61.4 50 100
2 2.8 dB/100m 15 54.5 50 100
4 3.8 dB/100m 15 49.4 50 100
8 5.3 dB/100m 15 44.3 50 100
10 4.1 dB/100m 15 42.6 50 100
16 7.5 dB/100m 15 39.1 50 100
20 8.4 dB/100m 15 37.5 50 100

Voltage

UL Voltage Rating
300 V (UL 13 PLTC)

Temperature

UL Temperature Operating
75°C -30°C To +75°C

Bend Radius

Installation Min.
2 in (51 mm)

Max. Pull Tension

10 lbs (4.5 kg)

Bulk Cable Weight

38 lbs/1000ft

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance

Flammability / Reaction to Fire

UL 1685 UL Loading

NEC / UL Compliance

CM, PLTC

IEEE Compliance

IEEE 802.3cg

TIA/EIA Compliance

ANSI/TIA-568.5

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2022-04-27

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

Update and Revision

Revision Number: 0.42 Revision Date: 04-29-2024

Update and Revision

Revision Number: 0.42 Revision Date: 04-29-2024
