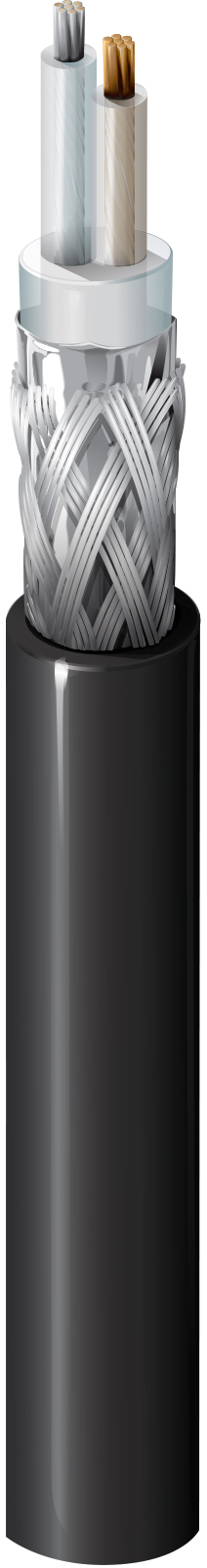

Product Number: 9207NH
100Ω Twinax, 1 Pr #20 Str-1c TC/1c BC, PE Jkt, Duofoil®+TC Braid, LSZH Jkt, IEC-60332-3C
20 AWG stranded (7x28) one tinned copper conductor, one bare copper conductor, polyethylene insulation, polyethylene inner jacket, Duofoil® (100% coverage) plus a tinned copper braid shield (85% coverage), LSZH outer jacket, Flame resistance IEC 60332-3C
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Twinaxial instrumentation and computer cable; For data transmission applications |
|---|
Physical Characteristics (Overall)
Conductor
| Element | AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|---|
| Insulated Conductor(s) A | 20 | 7x28 | BC - Bare Copper | 1 |
| Insulated Conductor(s) B | 20 | 7x28 | TC - Tinned Copper | 1 |
|
Conductor Count |
2 |
|---|---|
|
Total Number of Pairs |
1 |
Insulation
| Element | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulated Conductor(s) A | PE - Polyethylene | 2.11 mm | 0.08 mm |
| Insulated Conductor(s) B | PE - Polyethylene | 2.11 mm | 0.08 mm |
Color Chart
| Number | Color |
|---|---|
| Insulated conductor A | Clear |
| Insulated conductor B | Clear |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Thickness of Foil |
|---|---|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 85% | 9 / 23 / 9 µm |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 8.6 mm | 0.89 mm |
Construction and Dimensions
Cabling
| Description |
|---|
| 2 wires twisted to cable core |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 31.2 Ohm/km | 6.6 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 47.6 pF/m | 75.5 pF/m |
Inductance
| Nominal Inductance |
|---|
| 0.51 µH/m |
Impedance
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.98 dB/100m |
| 10 MHz | 3.94 dB/100m |
| 50 MHz | 9.19 dB/100m |
| 100 MHz | 13.45 dB/100m |
| 200 MHz | 21 dB/100m |
| 400 MHz | 33.46 dB/100m |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 510 ns/ft | 66% |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
Temperature Range
|
Installation Temperature Range |
-15°C To +80°C |
|---|---|
|
Storage Temperature Range |
-45°C To +80°C |
|
Operating Temp Range (Flexible Install) |
-15°C To +80°C |
|
Operating Temp Range (Fixed Install) |
-45°C To +80°C |
Mechanical Characteristics
|
Oil Resistance |
ASTMD741 |
|---|---|
|
Min. Bend Radius During Installation |
86 mm |
Standards
|
CPR Euroclass |
Eca |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Eca |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2, IEC 60332-3-24 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
History
|
Update and Revision |
Revision Number: 0.252 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.252 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 9207NH.00100 | Black | Reel | 100 m | 8719605020222 |
| 9207NH.00152 | Black | Reel | 152 m | 8719605020246 |
| 9207NH.00305 | Black | Reel | 305 m | 8719605020253 |
| 9207NH.00500 | Black | Reel | 500 m | 8719605020260 |
