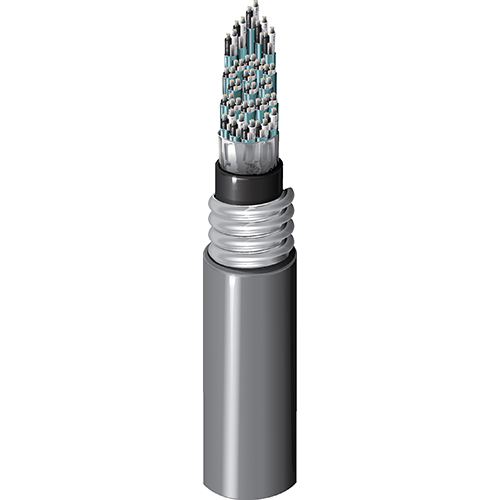

23500D

ACIC 300V, 6 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

...
Canadian Instrumentation Cable TC-ACIC 300V, 6 Pair 16AWG (7x24) Tinned Copper, XLPE Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, 90C Wet 105C Dry CSA HLABCD SUN RES -40C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error

Put-Up Type

Reel

Product Overview

Suitable Applications

Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 6 16 AWG 7x24 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) XLP, XLPO, XLPE (Thermoset) 0.025 in (0.64 mm) 0.108 in (2.74 mm) Black and White and Numbered
Inner Shield
Element Shield Type Material Coverage Drainwire Type
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (7x26) TC
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (7x26) TC
Inner Jacket
Material Nom. Thickness Nom. Diameter Color
PVC - Polyvinyl Chloride 0.063 in (1.6 mm) 0.736 in (18.7 mm) Black
Armor
Armor Type & Material Armor Thickness Diameter Over Armor
AIA - Aluminum Interlock Armor 0.025 in (0.64 mm) 0.961 in (24.4 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.052 in (1.3 mm) 1.065 in Yes

Overall Cable Diameter (Nominal)

1.065 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR
4.6 Ohm/1000ft 5.4 Ohm/1000ft (18 Ohm/km)
Voltage
Voltage Rating
300 V (CEC ACIC)
Mechanical Characteristics
Temperature
Operating
Dry: -40°C to +105°C, Wet: -40°C to +90°C
Bend Radius
Stationary Min. Installation Min.
12.72 in (323.1 mm) 12.72 in

Max. Pull Tension

200 lbs (91 kg)

Bulk Cable Weight

484 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance

CEC / C(UL) Compliance

ACIC, HLABCD, ACIC

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.361 Revision Date: 01-04-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Putup Type UPC
23500D 0602500 Reel 612825322085
23500D 0605000 Reel 612825322108
